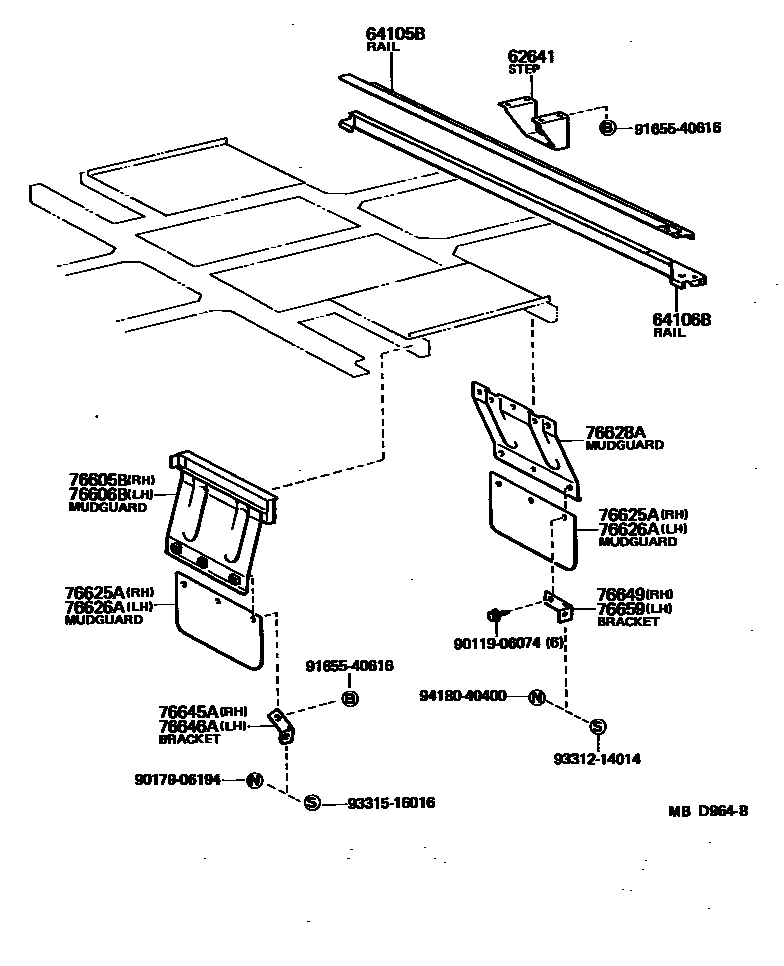

REAR FLOOR PANEL & REAR FLOOR MEMBER

62641STEP, REAR

main52351-90D00iLH24198205-198507

main52351-90D02iLH24198209-198507

W/RR BUMPER

64105BRAIL SUB-ASSY, LOWER BACK, OUTER

main64105-90D00iLH24198205-198209

main64105-90D02iLH24198209-198507

main64105-90D03iLH24198310-198507

W/RR DOOR

64106BRAIL SUB-ASSY, LOWER BACK, INNER

main64019-90D00iLH24..IV198404-198507

main64106-90D01iLH24198205-198209

main64106-90D02iLH24198209-198307

main64106-90D03iLH24..CBU198307-198507

76605BMUDGUARD SUB-ASSY, REAR BODY, FRONT RH

main76605-90D01iLH24198205-198507

76606BMUDGUARD SUB-ASSY, REAR BODY, FRONT LH

main76606-90D00iLH24198205-198507

76625AMUDGUARD, REAR BODY, RH

main76625-90D00iLH24198205-198507

76626AMUDGUARD, REAR BODY, LH

main76625-90D00iLH24198205-198507

76628AMUDGUARD, REAR BODY, REAR

main76628-90D00iLH24198205-198507

76645ABRACKET, REAR BODY MUDGUARD NO.1, RH

main76645-90D00iLH24198205-198209

main76645-90D01iLH24198209-198507

76646ABRACKET, REAR BODY MUDGUARD NO.1, LH

main76646-90D00iLH24198205-198209

main76646-90D01iLH24198209-198507

76649BRACKET, REAR BODY MUDGUARD NO.2, RH

main76649-90D00iLH24198205-198209

76659BRACKET, REAR BODY MUDGUARD NO.2, LH

main76659-90D00iLH24198205-198209

9011906074

main90119-06074

9017906194

main90179-06194

9165540616

main91655-40616

9331214014

main93312-14014

9331516016

main93315-16016

9418040400

main94180-40400

18 parts on this diagram · 1 diagram in section
