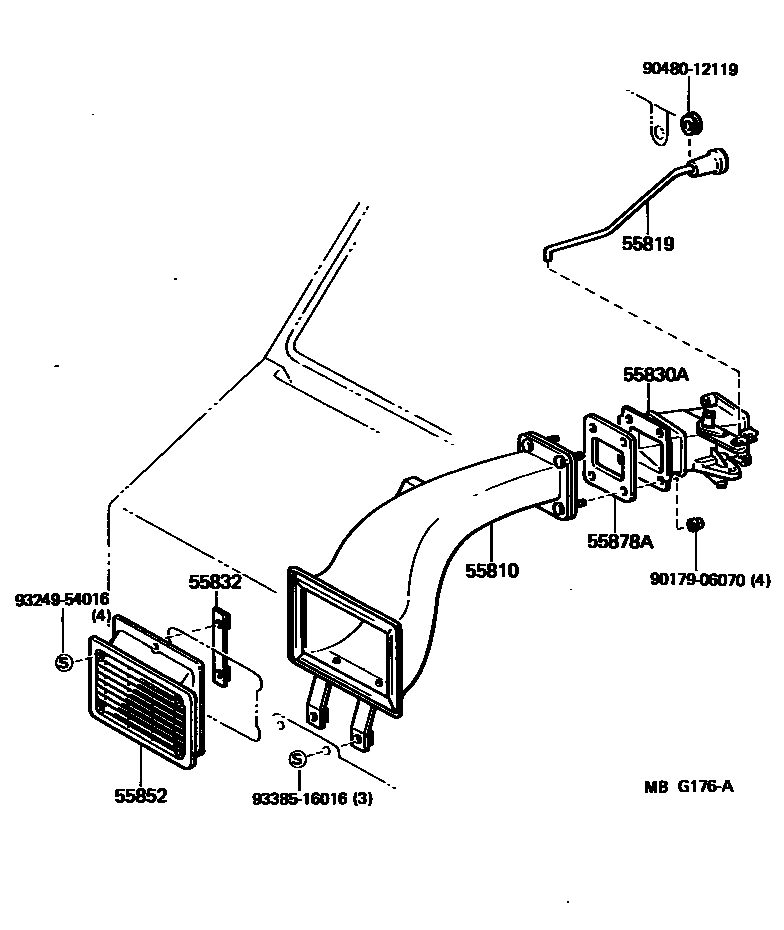

FRONT VENTILATOR

55810DUCT ASSY, SIDE VENTILATOR, RH

main55820-90D00iLH24198306-198507

55819ROD, SIDE VENTILATOR CONTROL

main55803-90D00iLH24198306-198312

main55803-90D01iLH24198312-198401

main55803-90D02iLH24198401-198507

55830ACONNECTOR ASSY, FRONT SIDE VENTILATOR

main55830-90D00iLH24198306-198312

main55830-90D01iLH24198312-198507

55832SUPPORT, FRONT VENTILATOR

main53314-90D00×2iLH24198306-198507

55852ORNAMENT, SIDE VENTILATOR, RH

main55852-95J00iLH24198306-198507

55878ASEAL, AIR DUCT

main55876-90D00iLH24198306-198312

main55876-90D01iLH24198312-198507

9017906070

main90179-06070

9048012119

main90480-12119

9324954016

main93249-54016

9338516016

main93385-16016

10 parts on this diagram · 1 diagram in section
