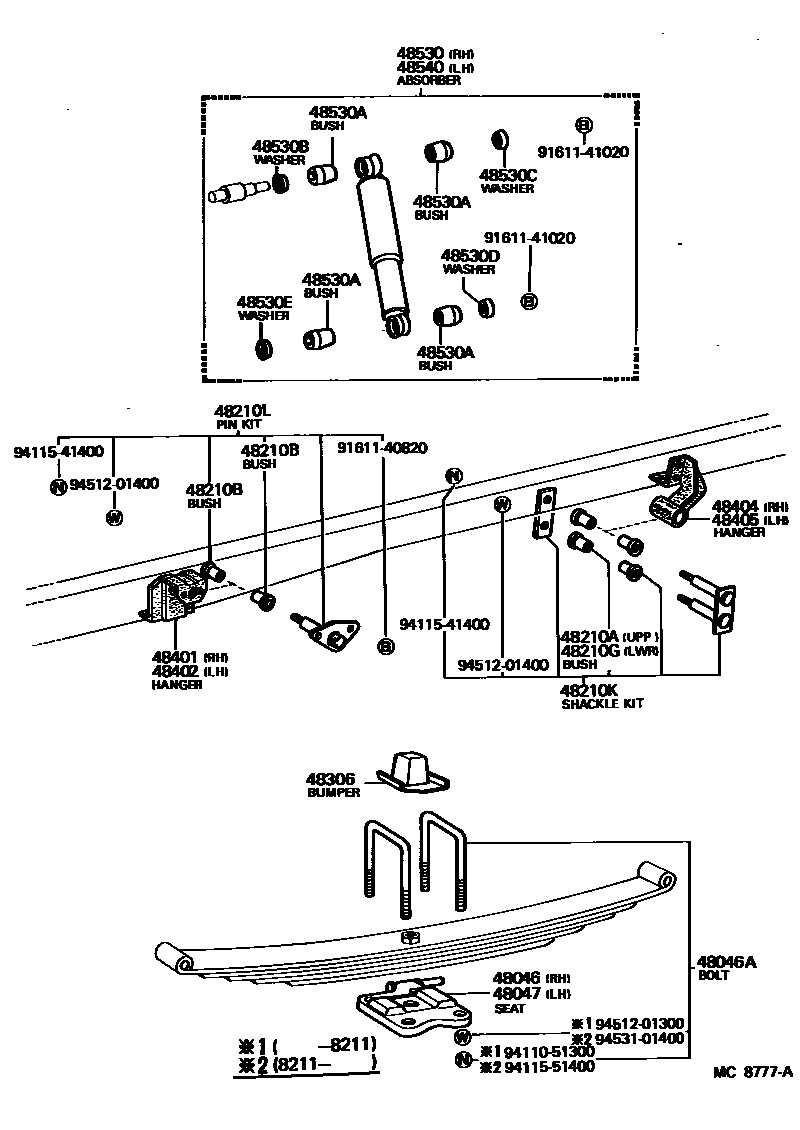

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26030iLH24198205-198507

48046ABOLT, U(FOR REAR SPRING)

main90118-13179×4iLH24198205-198209

sub90117-13008

sub94110-51300

sub94512-01300

main90118-13205×4iLH24198209-198211

sub90117-13011

sub94110-51300

sub94512-01300

main90118-14208×4iLH24198211-198507

sub90117-14031

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-26030iLH24198205-198507

48210SPRING ASSY, REAR RH

main48210-26111iLH24198205-198209

sub48210-26112

main48210-26240iLH24198209-198401

main48210-26241iLH24198401-198507

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18046×4iLH24198205-198507

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046×4iLH24198205-198507

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046×4iLH24198205-198507

48210KSHACKLE KIT, REAR SPRING

main04483-26030×2iLH24198205-198507

48210LPIN KIT, REAR SPRING

main04484-27010×2iLH24198205-198507

sub04482-35030

48306BUMPER SUB-ASSY, REAR SPRING

main48306-26040×2iLH24198205-198507

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-26030iLH24198205-198507

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-26030iLH24198205-198507

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-26030iLH24198205-198507

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48417-26020iLH24198205-198507

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29635iLH24198205-198312

sub48531-80021

main48531-80047iLH24198312-198507

sub48531-80529

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007×8iLH24198205-198507

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03012×2iLH24198205-198507

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iLH24198205-198507

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iLH24198205-198507

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iLH24198205-198507

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29635iLH24198205-198312

sub48531-80021

main48531-80047iLH24198312-198507

sub48531-80529

9161140820

main91611-40820

9161141020

main91611-41020

9411051300

main94110-51300

9411541400

main94115-41400

9411551400

main94115-51400

9451201300

main94512-01300

9451201400

main94512-01400

9451204100

main94512-04100

9453101400

main94531-01400

30 parts on this diagram · 4 diagrams in section
