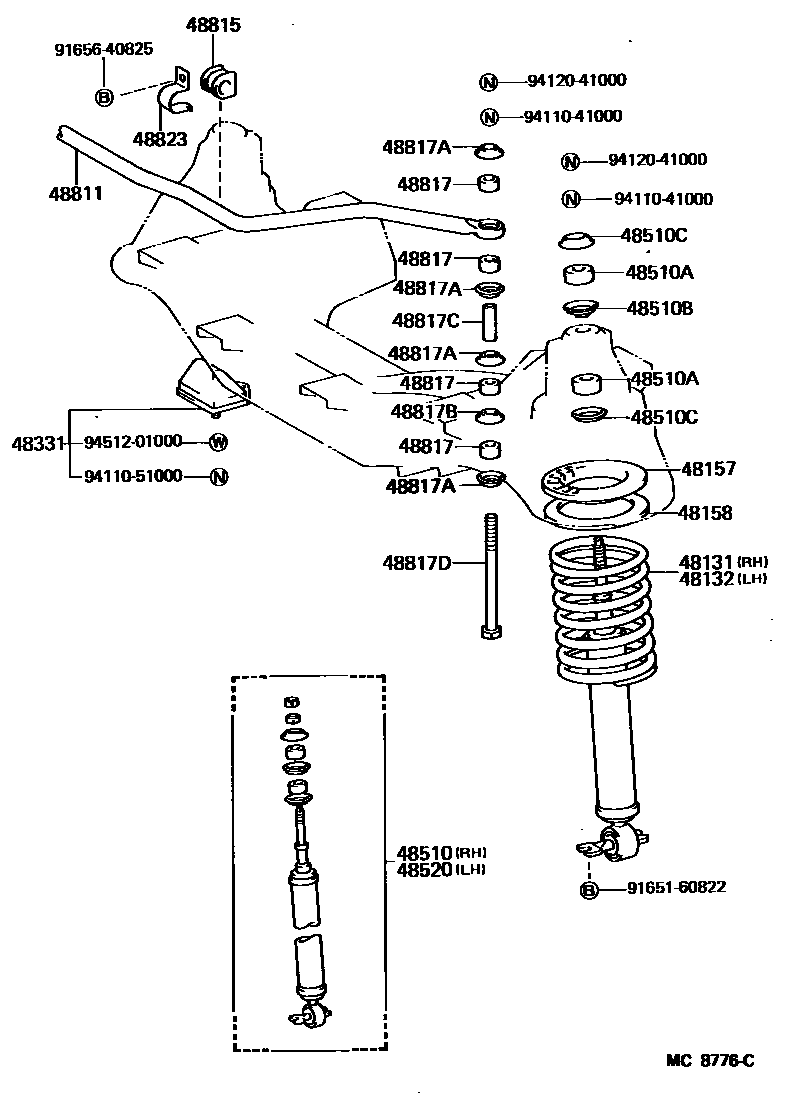

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-26060iLH24198205-198507

48132SPRING, FRONT COIL, LH

main48131-26060iLH24198205-198507

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-26010×2iLH24198205-198507

48158SPACER, FRONT COIL SPRING

main90560-99248×2iLH24198205-198507

48331BUMPER, FRONT SPRING, NO.1

main48304-29015×2iLH24198205-198507

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29015iLH24198205-198401

sub48511-29016

main48511-29205iLH24198401-198507

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003×4iLH24198205-198507

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007×2iLH24198205-198507

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002×4iLH24198205-198507

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29015iLH24198205-198401

sub48511-29016

main48511-29205iLH24198401-198507

48811BAR, STABILIZER, FRONT

main48811-26020iLH24198205-198507

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20060×2iLH24198205-198507

48817CUSHION, FRONT STABILIZER

main90948-01002×8iLH24198205-198507

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004×8iLH24198205-198507

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005×2iLH24198205-198507

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14055×2iLH24198205-198507

48817DBOLT(FOR FRONT STABILIZER)

main90101-10259×2iLH24198205-198507

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-27010×2iLH24198205-198507

9165160822

main91651-60822

9165640825

main91656-40825

9411041000

main94110-41000

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

24 parts on this diagram · 1 diagram in section
