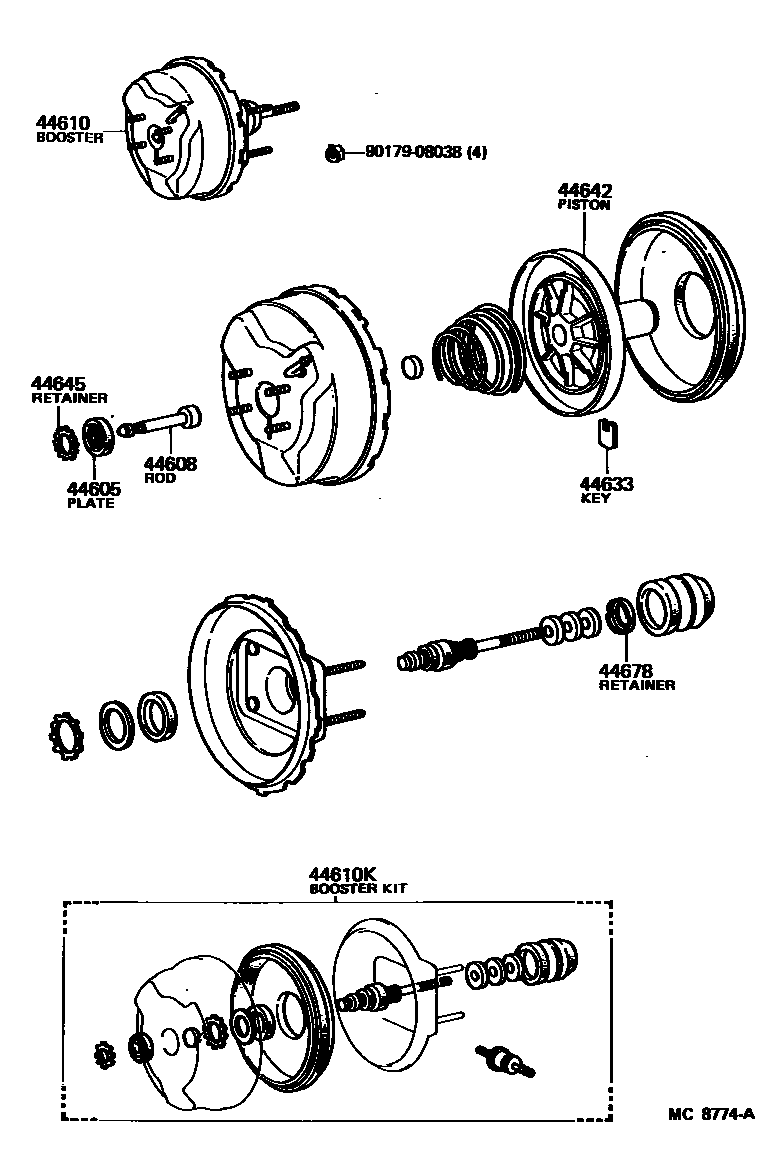

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iLH24198205-198507

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-22090iLH24198205-198211

main44608-32020iLH24198211-198507

44610BOOSTER ASSY, BRAKE

main44610-26180iLH24198211-198507

main44610-26181iLH24198205-198211

44610KBOOSTER KIT, BRAKE

main04443-26090iLH24198205-198211

main04443-26091iLH24198211-198507

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iLH24198205-198211

main44633-28130iLH24198211-198507

44642PISTON, BRAKE BOOSTER

main44637-32040iLH24198211-198507

main44642-26181iLH24198205-198211

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iLH24198205-198507

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iLH24198205-198211

9017908038

main90179-08038

9 parts on this diagram · 3 diagrams in section
