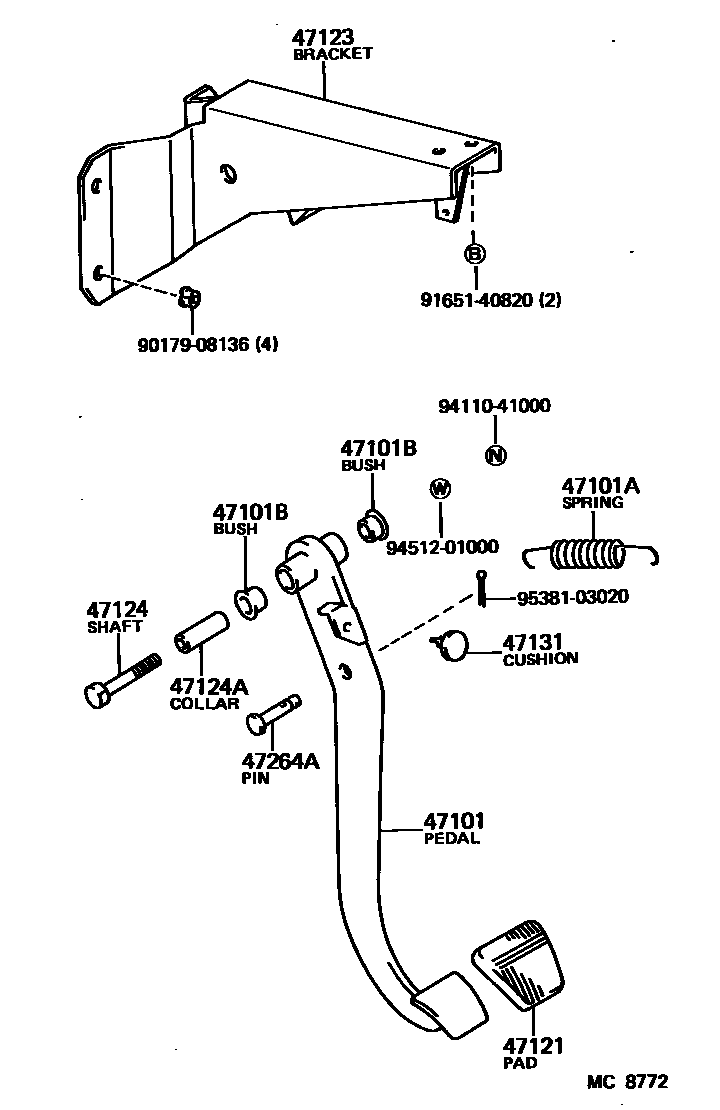

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35150iLH24198205-198507

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16021iLH24198205-198507

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iLH24198205-198507

47121PAD, BRAKE PEDAL

main31321-14010iLH24198205-198507

47123BRACKET, BRAKE PEDAL

main47125-26010iLH24198205-198507

47124SHAFT, BRAKE PEDAL

main91121-51065iLH24198205-198507

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iLH24198205-198507

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLH24198205-198507

47264APIN(FOR PUSH ROD)

main90249-10048iLH24198205-198507

9017908136

main90179-08136

9165140820

main91651-40820

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

14 parts on this diagram · 1 diagram in section
