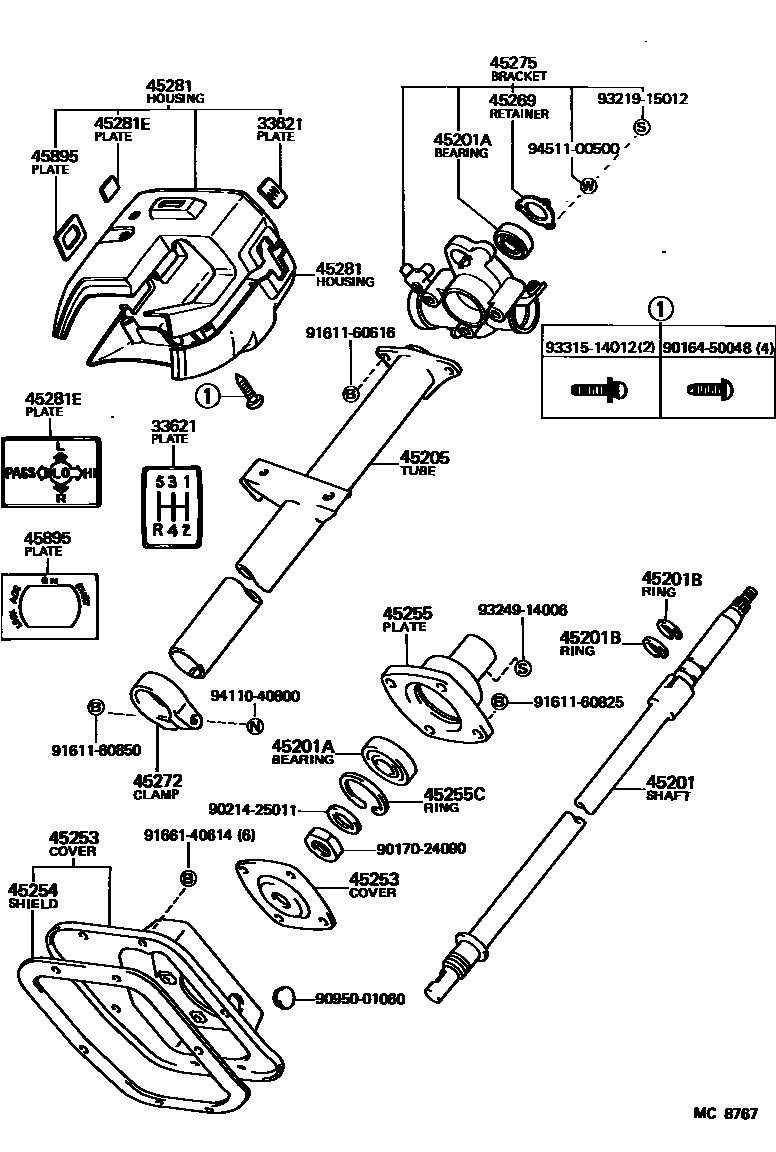

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iLH24198205-198507

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-26040iLH24198205-198507

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iLH24198205-198507

UPR

main90363-25039iLH24198205-198507

LWR

sub90363-25022

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLH24198205-198507

main90520-17269iLH24198205-198507

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-26070iLH24198205-198507

45253COVER, STEERING COLUMN HOLE

main45253-26070iLH24198205-198507

LWR

main45292-55020iLH24198205-198507

UPR

45254SHIELD, STEERING COLUMN HOLE

main45254-26040iLH24198205-198507

45255PLATE, STEERING COLUMN HOLE COVER

main45291-26010iLH24198205-198507

45255CRING, HOLE SNAP(FOR STEERING COLUMN TUBE SUPPORT)

main90521-57075iLH24198205-198507

T=1.6

main90521-57076iLH24198205-198507

T=1.7

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iLH24198205-198507

45272CLAMP, STEERING COLUMN, LOWER

main45272-55010iLH24198205-198507

45275BRACKET, STEERING COLUMN, UPPER

main45307-28010iLH24198205-198301

sub45307-28011

main45307-28011iLH24198301-198507

sub45307-26061

45281HOUSING, STEERING COLUMN

main45023-26080-06iLH24198205-198507

UPR,BROWN,BROWN

main45287-26040-06iLH24198205-198507

LWR,BROWN,BROWN

sub45287-26040

45281EPLATE, SAFETY CAUTION

main45283-22010iLH24198205-198507

45895PLATE, STEERING LOCK CAUTION

main45895-26010iLH24198205-198507

9016450048

main90164-50048

9017024090

main90170-24090

9021425011

main90214-25011

9095001060

main90950-01060

9161160616

main91611-60616

9161160825

main91611-60825

9161160850

main91611-60850

9166140614

main91661-40614

9321915012

main93219-15012

9324914006

main93249-14006

9331514012

main93315-14012

9411040800

main94110-40800

9451100500

main94511-00500

28 parts on this diagram · 2 diagrams in section
