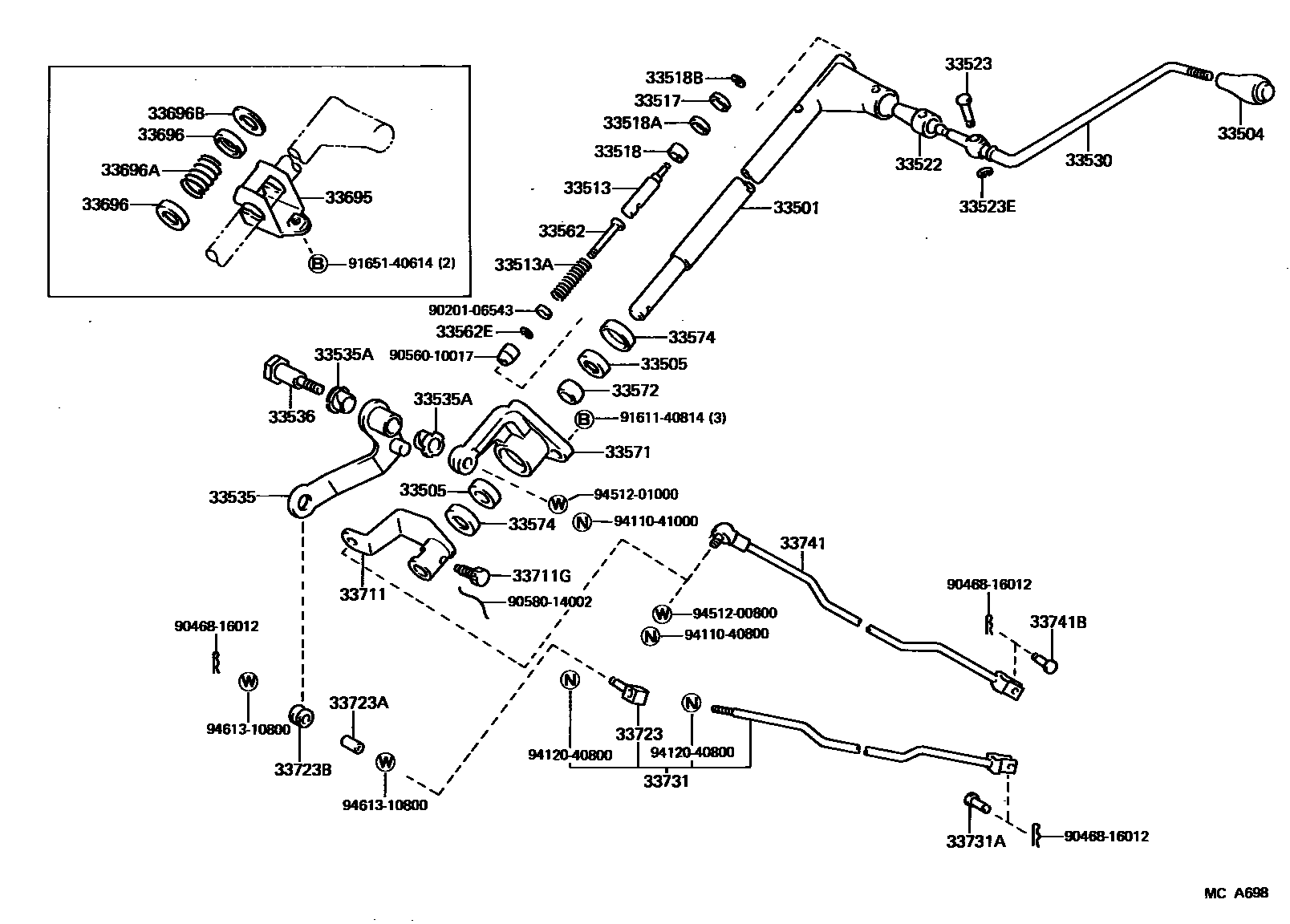

CONTROL SHAFT & CROSSSHAFT
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33517RETAINER, CONTROL SHAFT UPPER SPRING
33518BUSH, UPPER CONTROL SHAFT PIECE
sub33518-35010
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ERING, E (FOR SHIFT LEVER PIN)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT
33562ERING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33695COVER, SELECTING SPRING (FOR COLUMN SHIFT)
33696SEAT, SELECT SPRING
33696ASPRING, COMPRESSION
33696BPLATE, SELECT RETURN
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711GBOLT, CONTROL SHAFT LEVER LOCK
33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)
33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33731APIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)
33741BPIN, W/HOLE (FOR COLUMN SHIFTING ROD)
9020106543
main90201-06543
9046816012
main90468-16012
9056010017
main90560-10017
9058014002
main90580-14002
9161140814
main91611-40814
9165140614
main91651-40614
9411040800
main94110-40800
9411041000
main94110-41000
9412040800
main94120-40800
9451200800
main94512-00800
9451201000
main94512-01000
9461310800
main94613-10800
46 parts on this diagram · 4 diagrams in section
