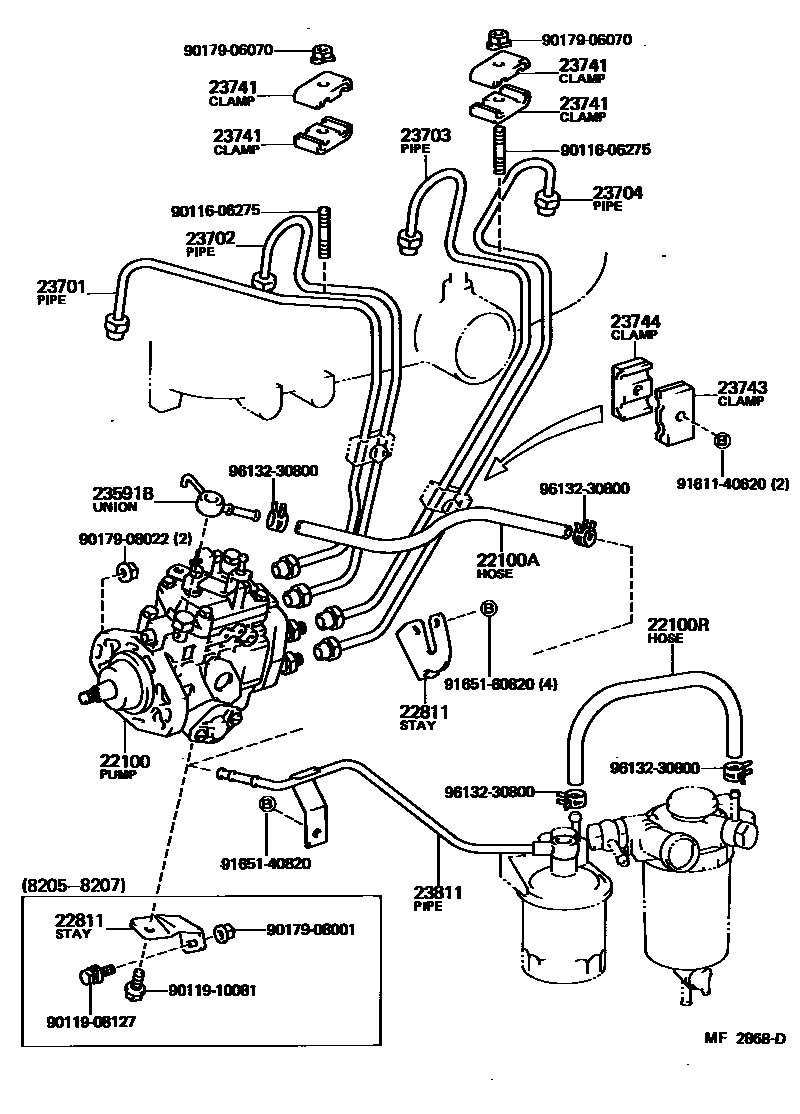

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54131iL..LH24198205-198406

sub22100-54132

sub90099-05166

main22100-54132iL..LH24198406-198507

sub22100-54231

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08030iL..LH24198205-198403

sub95333-08030

main95332-08030iL..LH24198403-198507

sub95333-08030

22100RHOSE, FUEL(FOR SEDIMENTER TO FILTER)

main95332-08030iL..LH24198205-198507

*H,L=260

sub95333-08030

22811STAY, INJECTION PUMP, NO.1

main22811-54030iL..LH24198205-198207

main22811-54040iL..LH24198207-198507

sub22811-54041

23591BUNION(FOR INJECTION PUNP INLET)

main23591-54010iL..LH24198205-198507

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051iL..LH24198205-198311

main23701-54082iL..LH24198311-198507

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL..LH24198205-198311

main23702-54081iL..LH24198311-198507

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL..LH24198205-198507

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL..LH24198205-198507

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LH24198205-198507

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LH24198205-198507

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LH24198205-198507

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54080iL..LH24198205-198507

9011606275

main90116-06275

9011908127

main90119-08127

9011910081

main90119-10081

9017906070

main90179-06070

9017908001

main90179-08001

9017908022

main90179-08022

9161140620

main91611-40620

9165140820

main91651-40820

9165160820

main91651-60820

9613230800

main96132-30800

23 parts on this diagram · 1 diagram in section
