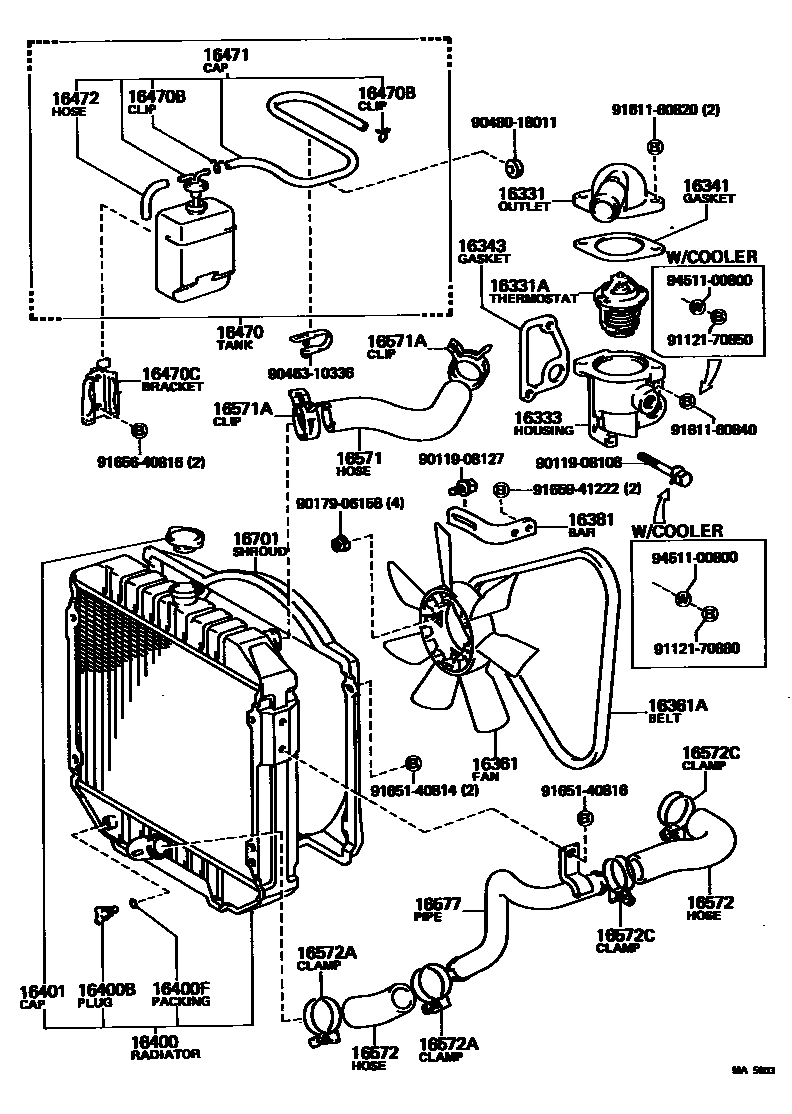

RADIATOR & WATER OUTLET

0001 1 0002 1

16331OUTLET, WATER

main16331-54010iL..LH24198205-198306

main16331-54030iL..LH24198306-198507

16331ATHERMOSTAT

main90916-03061iL..LH24198205-198211

*WAX 82-95

main90916-03062iL..LH24198205-198211

sub90916-03072

16333HOUSING, WATER OUTLET

main16333-54011iL..LH24198205-198306

main16333-54050iL..LH24198306-198507

16341GASKET, WATER OUTLET

main16341-41010iL..LH24198205-198304

sub16341-38021

main16341-54011iL..LH24198306-198507

sub16341-54030

main16341-54020iL..LH24198304-198306

sub16341-34010

16343GASKET, WATER OUTLET HOUSING

main16343-54011×2iL..LH24198205-198507

sub16343-54021

16361FAN

main16361-34030iL..LH24198205-198507

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132iL..LH24198211-198507

DOUBLE V BELTS

sub90916-02281

main99332-10985iL..LH24198205-198207

L=985

main99332-11000iL..LH24198207-198211

L=1000

16381BAR, FAN BELT ADJUSTING

main16381-54011iL..LH24198205-198401

16400RADIATOR ASSY

main16400-54051iL..LH24198205-198211

main16400-54200iL..LH24198404-198507

main16410-54200iL..LH24198211-198404

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200iL..LH24198205-198507

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200iL..LH24198205-198507

16401CAP SUB-ASSY, RADIATOR

main16401-41021iL..LH24198205-198507

16470TANK ASSY, RADIATOR RESERVE

main16470-54050iL..LH24198205-198507

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2iL..LH24198205-198507

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-54040iL..LH24198205-198507

16471CAP SUB-ASSY, RESERVE TANK

main16405-54060iL..LH24198205-198507

sub16405-95A04

16472HOSE, BREATHER

main85338-22030iL..LH24198205-198507

16571HOSE, RADIATOR, INLET

main16571-54030iL..LH24198205-198211

main16571-54110iL..LH24198211-198507

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001×2iL..LH24198205-198507

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-54030iL..LH24198205-198507

WATER PUMP SIDE

main16573-54020iL..LH24198211-198507

RADIATOR SIDE

main90916-01165iL..LH24198205-198211

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10460×2iL..LH24198205-198507

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10460iL..LH24198205-198507

PIPE SIDE,ID=46

main96111-10500iL..LH24198205-198507

PUMP SIDE,ID=50

16577PIPE, RADIATOR, NO.7

main16577-54020iL..LH24198205-198211

main16577-54050iL..LH24198211-198507

16701SHROUD SUB-ASSY, FAN

main16711-54050iL..LH24198205-198507

9011908108

main90119-08108

9011908127

main90119-08127

9017906158

main90179-06158

9046310336

main90463-10336

9048018011

main90480-18011

9112170850

main91121-70850

9112170880

main91121-70880

9161160820

main91611-60820

9161160840

main91611-60840

9165140814

main91651-40814

9165140816

main91651-40816

9165640816

main91656-40816

9165941222

main91659-41222

9451100800

main94511-00800

38 parts on this diagram · 2 diagrams in section
