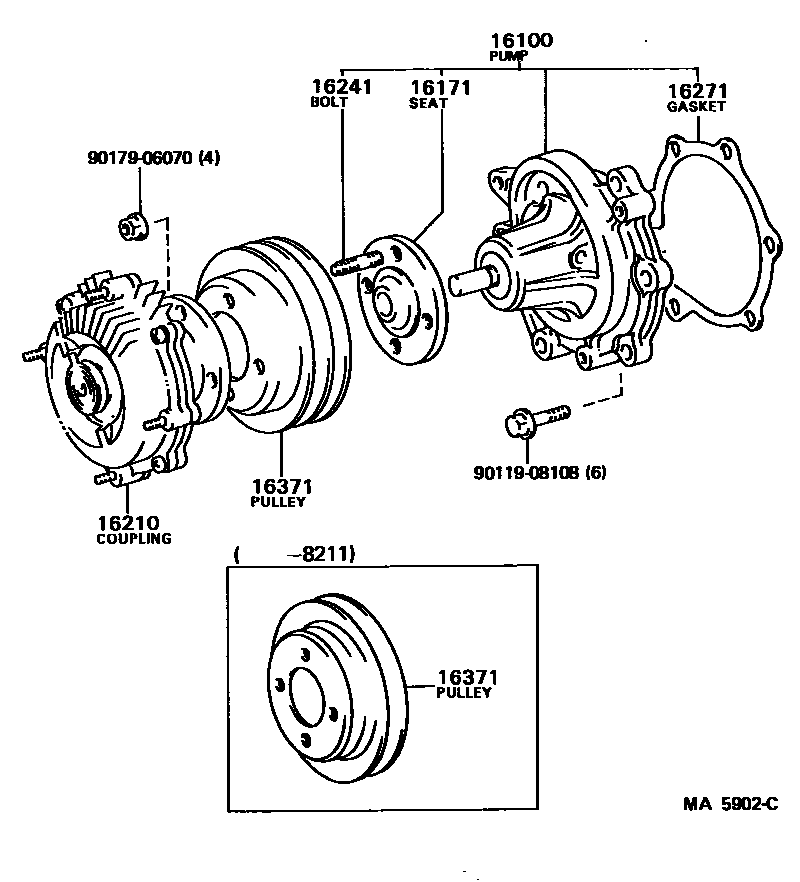

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-59126iL..LH24198205-198210

main16100-59127iL..LH24198210-198211

sub16100-59128

main16100-59136iL..LH24198211-198308

main16100-59137iL..LH24198308-198507

sub16100-59138

16171SEAT, WATER PUMP PULLEY

main16171-54011iL..LH24198205-198507

16210COUPLING ASSY, FLUID

main16210-54040iL..LH24198205-198507

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020×4iL..LH24198208-198507

main16193-54010×4iL..LH24198205-198208

16271GASKET, WATER PUMP

main16271-54012iL..LH24198205-198507

sub16271-54013

16371PULLEY, FAN

main16371-54010iL..LH24198205-198211

main16371-54020iL..LH24198211-198507

9011908108

main90119-08108

9017906070

main90179-06070

8 parts on this diagram · 1 diagram in section
