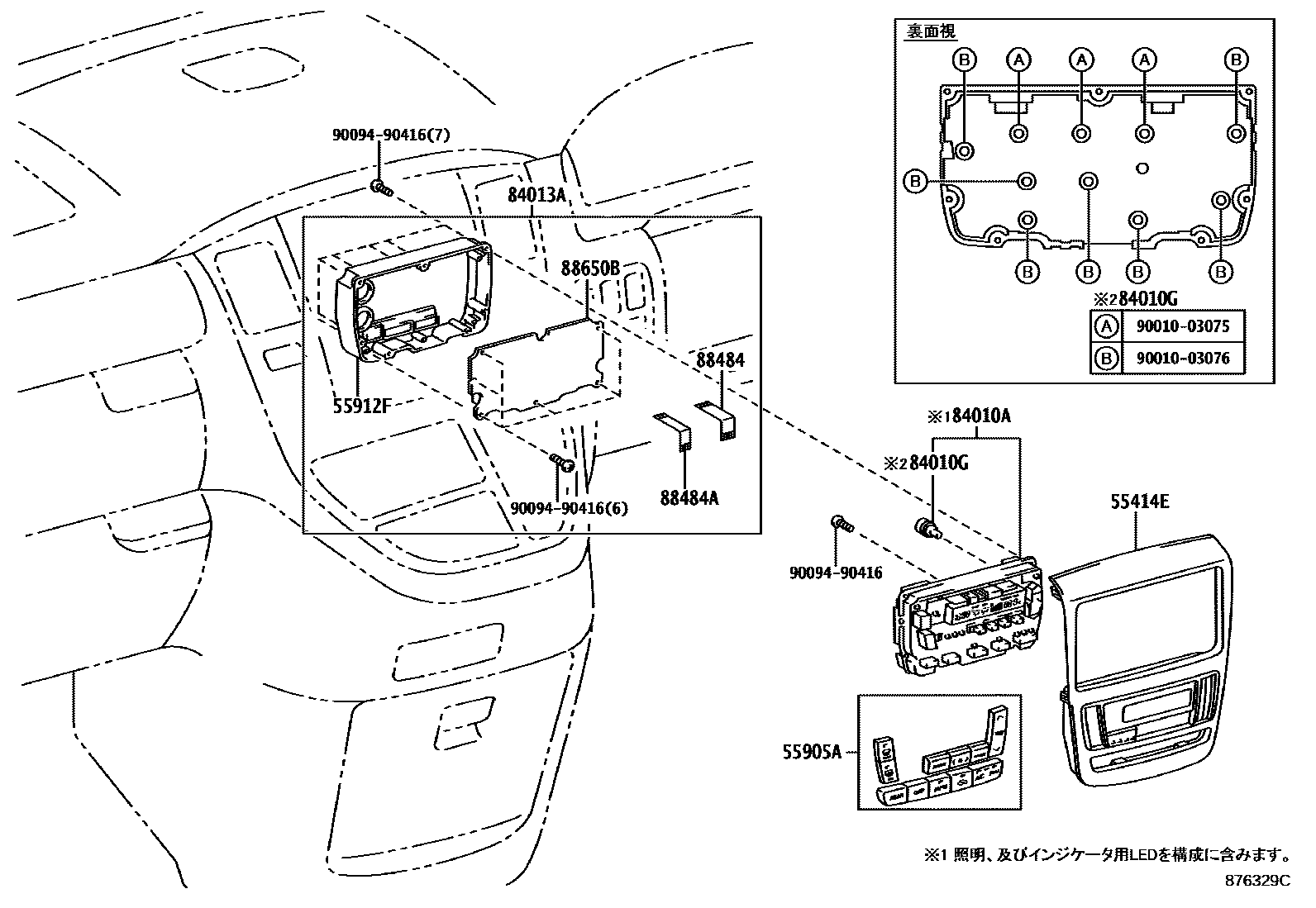

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���� ��������� 0002 1���� ���������� 0003 1�� ��������� 0004 1���� ������ 0005 1�� ������ 0006 1���

55414EPANEL, INSTRUMENT CLUSTER FINISH, END

main55414-58020iATH10200307-200504

main55414-58060iATH10200504-200508

sub55414-58061

main55414-58061iATH10200509

55905AKNOB, HEATER CONTROL

main55905-58070iATH10200307-200504

main55905-58110iATH10200504

55912FHOUSING, HEATER CONTROL

main55912-58040iATH10200307-200504

main55912-58050iATH10200504

84010ACONTROL & PANEL ASSY, INTEGRATION

main84012-58020iATH10200307-200504

main84012-58090iATH10200504

84010GBULB, INTEGRATION CONTROL & PANEL

main90010-03075iATH10200307-200804

main90010-03076iATH10200307-200506

main90010-03078iATH10200507-200804

84013APANEL SUB-ASSY, INTEGRATION

main84013-58070iATH10200307-200504

main84013-58120iATH10200504

88484WIRE, COOLER, NO.1

main88484-58020iATH10200307-200504

main88484-58040iATH10200504

88484AWIRE, COOLER, NO.1

main88484-58030iATH10200307-200504

main88484-58050iATH10200504

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-58060iATH10200307-200403

sub88650-58061

main88650-58061iATH10200504

sub88650-58120

main88650-58120iATH10200411-200504

9009490416

main90094-90416

10 parts on this diagram · 6 diagrams in section
