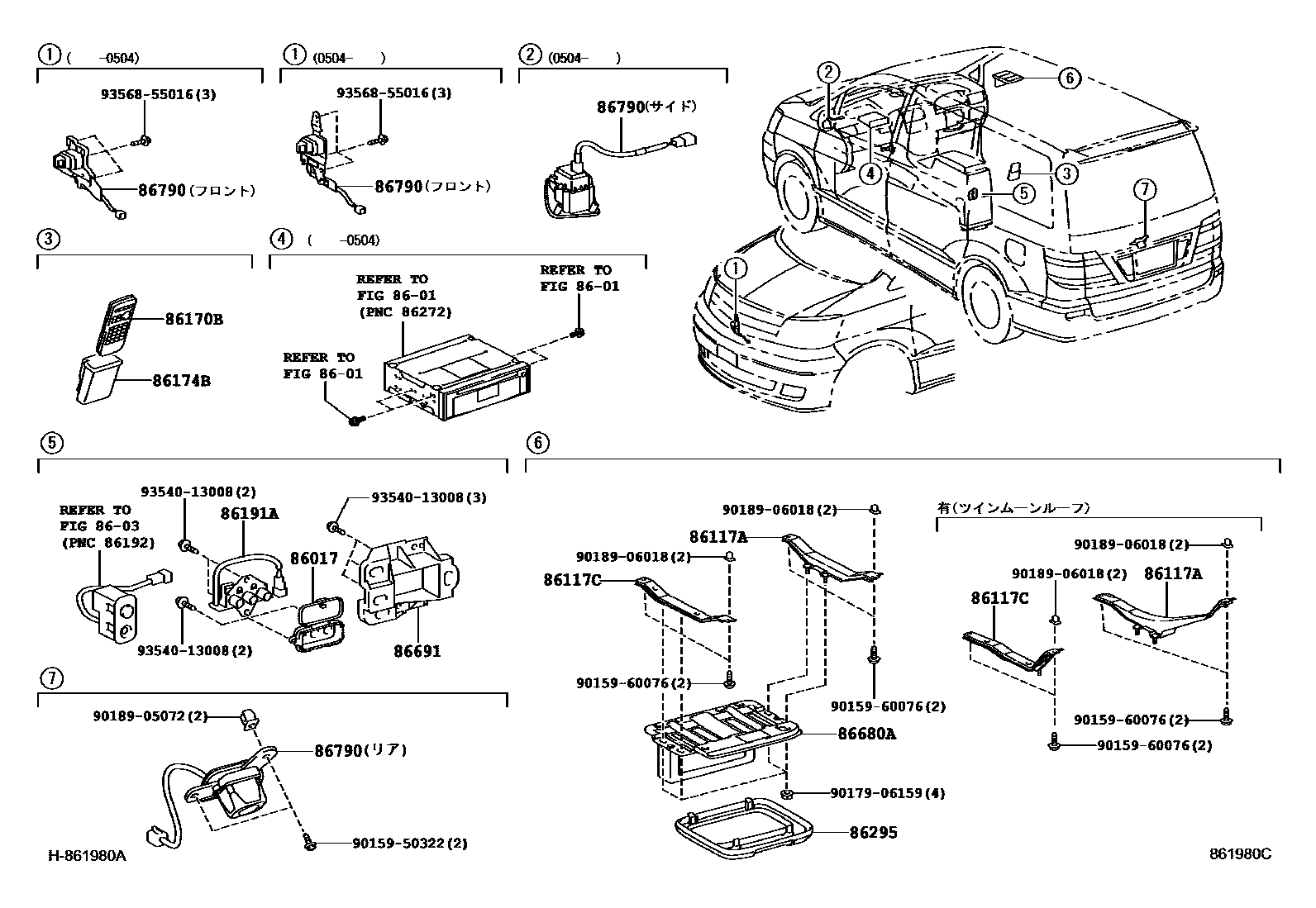

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1 0003 1

8601

86017PARTS SET, VIDEO

main86017-44010-A0iATH10200307-200504

8603

86117ABRACKET, TELEVISION DISPLAY, A

main86117-58160iATH10200307

main86117-58180iATH10200307

86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86117-58170iATH10200307

main86117-58190iATH10200307

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-58020iATH10200307-200504

main86170-58030iATH10200504

86174BCASE, SWITCH & VOLUME

main86174-58010iATH10200307

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

main86191-58010iATH10200307-200504

86295BASE, TELEVISION

main86295-28020-A0iATH10200307-200504

main86295-58020-A0iATH10200504-200804

86680ADISPLAY ASSY, TELEVISION

main86680-58020-A0iATH10200307-200504

main86680-58030-A0iATH10200504-200804

86691HOLDER, VIDEO

main86691-58010iATH10200307-200504

86790CAMERA ASSY, TELEVISION

main86790-28180iATH10200504-200804

main86790-58010iATH10200307-200503

main86790-58011iATH10200504-200804

main86790-58030iATH10200307-200504

main86790-58080iATH10200504-200804

9015950322

main90159-50322

9015960076

main90159-60076

9017906159

main90179-06159

9018905072

main90189-05072

9018906018

main90189-06018

9354013008

main93540-13008

9356855016

main93568-55016

19 parts on this diagram · 3 diagrams in section
