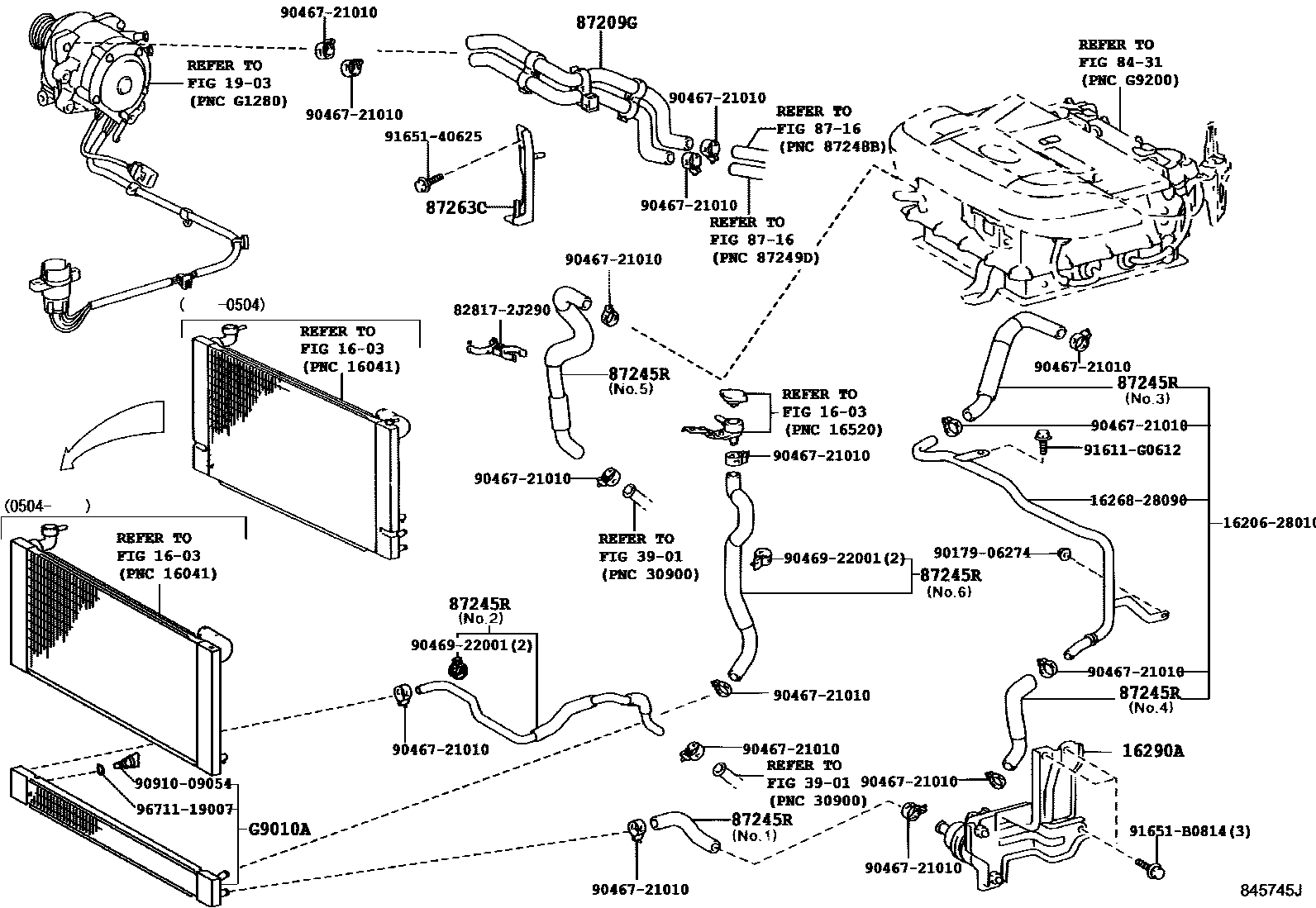

INVERTER COOLING

1603

16290APUMP ASSY, WATER W/MOTOR & BRACKET

mainG902058010i2AZFXE..ATH10200307-200606

subG9020-58011

mainG902058011i2AZFXE..ATH10200607-200705

subG9020-58012

mainG902058012i2AZFXE..ATH10200705

1903

3901

8431

8716

87209GHOSE SUB-ASSY, WATER, NO.1

main87209-58050iATH10200307-200804

87245RHOSE, WATER

main87245-58090iATH10200307-200804

main87245-58100iATH10200307-200804

main87245-58110iATH10200307-200804

main87245-58130iATH10200307-200804

main87245-58140iATH10200307-200804

main87245-58150iATH10200307-200804

87263CBRACKET, WATER HOSE

main87263-28040iATH10200307

G9010ARADIATOR ASSY

mainG901058010iATH10200504-200804

1620628010PIPE SUB-ASSY, WATER BY-PASS

main16206-28010

1626828090PIPE, WATER BY-PASS, NO.1

main16268-28090

828172J290PROTECTOR, WIRING HARNESS, NO.1

main82817-2J290

9017906274

main90179-06274

9046721010

main90467-21010

9046922001

main90469-22001

9091009054

main90910-09054

91611G0612

main91611-G0612

9165140625

main91651-40625

91651B0814

main91651-B0814

9671119007

main96711-19007

21 parts on this diagram · 1 diagram in section
