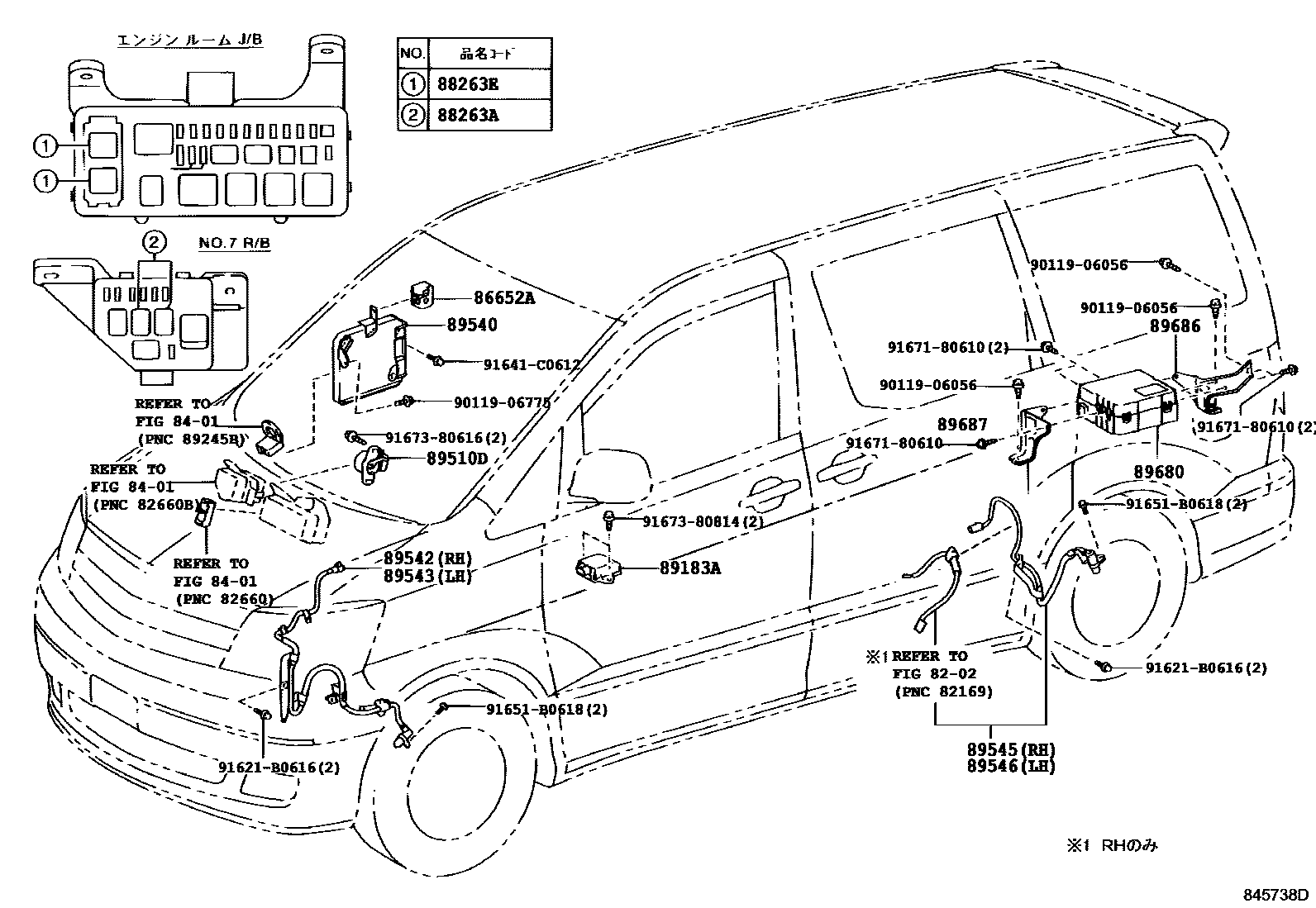

ABS & VSC

8202

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-20010iATH10200307

88263ARELAY, SKID CONTROL

main88263-32070iATH10200307-200804

88263ERELAY, SKID CONTROL NO.2

main88263-21010iATH10200307-200804

89183ASENSOR, YAWRATE

main89183-48010iATH10200307

sub89183-60020

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-28010iATH10200307-200804

89540COMPUTER ASSY, SKID CONTROL

main89540-58030iATH10200307

89542SENSOR, SPEED, FRONT RH

main89542-28090iATH10200307

89543SENSOR, SPEED, FRONT LH

main89543-28090iATH10200307

89545SENSOR, SPEED, REAR RH

main89545-58020iATH10200307-200706

main89545-58021iATH10200706-200804

89546SENSOR, SPEED, REAR LH

main89546-58010iATH10200307-200804

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iATH10200607

main89680-47010iATH10200307-200504

sub89680-47020

sub89687-58010

main89680-47020iATH10200504-200606

sub89680-33010

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-58010iATH10200307

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-58010iATH10200307

9011906056

main90119-06056

9011906775

main90119-06775

91621B0616

main91621-B0616

91641C0612

main91641-C0612

91651B0618

main91651-B0618

9167180610

main91671-80610

9167380616

main91673-80616

9167380814

main91673-80814

23 parts on this diagram · 1 diagram in section
