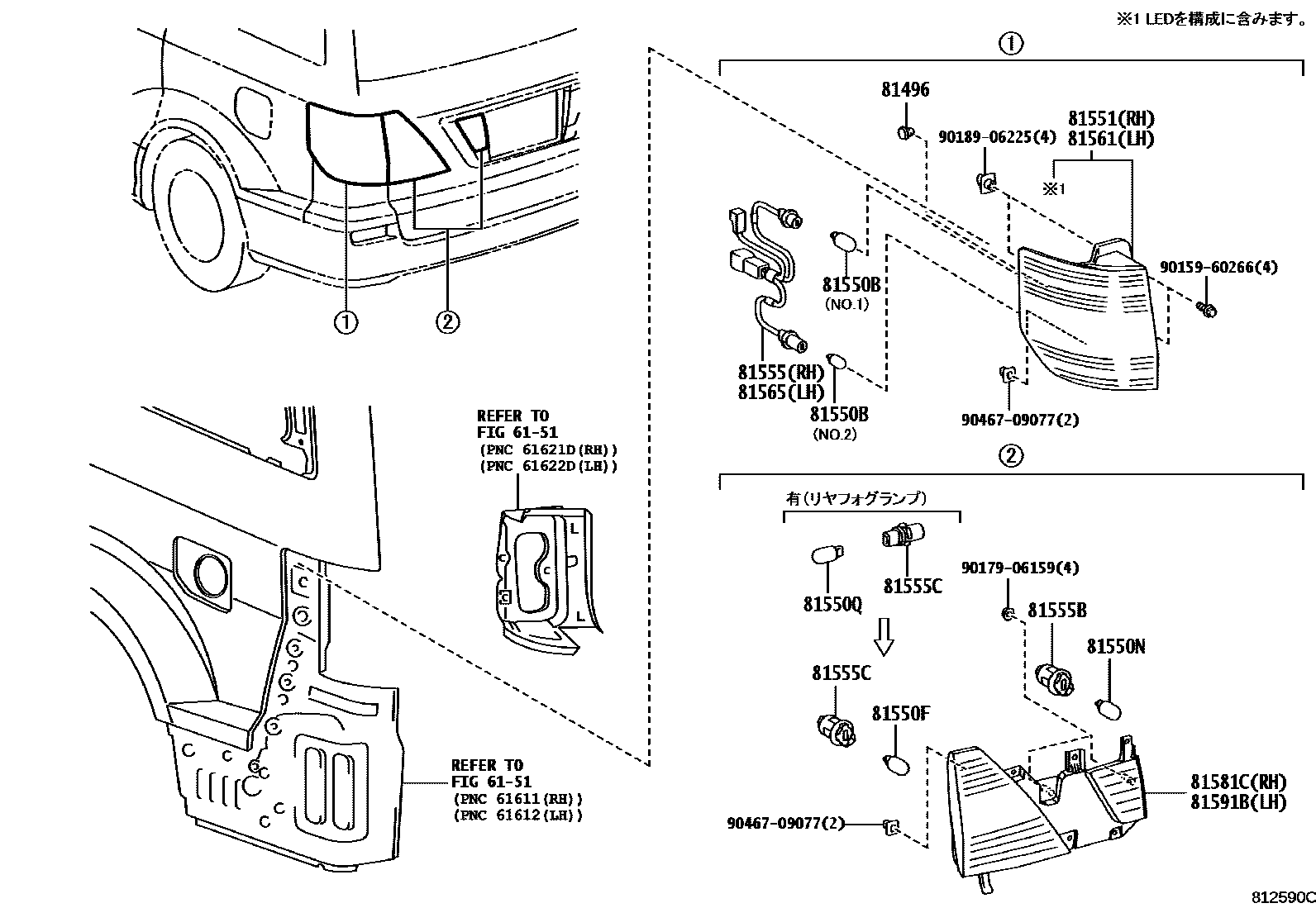

REAR COMBINATION LAMP
6151
81496GUIDE, REAR COMBINATION LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
81550FBULB, TAILLAMP
81550NBULB, BACK UP LAMP
81550QBULB, REAR FOG LAMP, NO.1
81551LENS, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555BSOCKET PLUG, NO.1
81555CSOCKET PLUG, NO.2
81561LENS, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81591BLENS AND BODY, REAR LAMP, LH
9015960266
main90159-60266
9017906159
main90179-06159
9018906225
main90189-06225
9046709077
main90467-09077
18 parts on this diagram · 1 diagram in section
