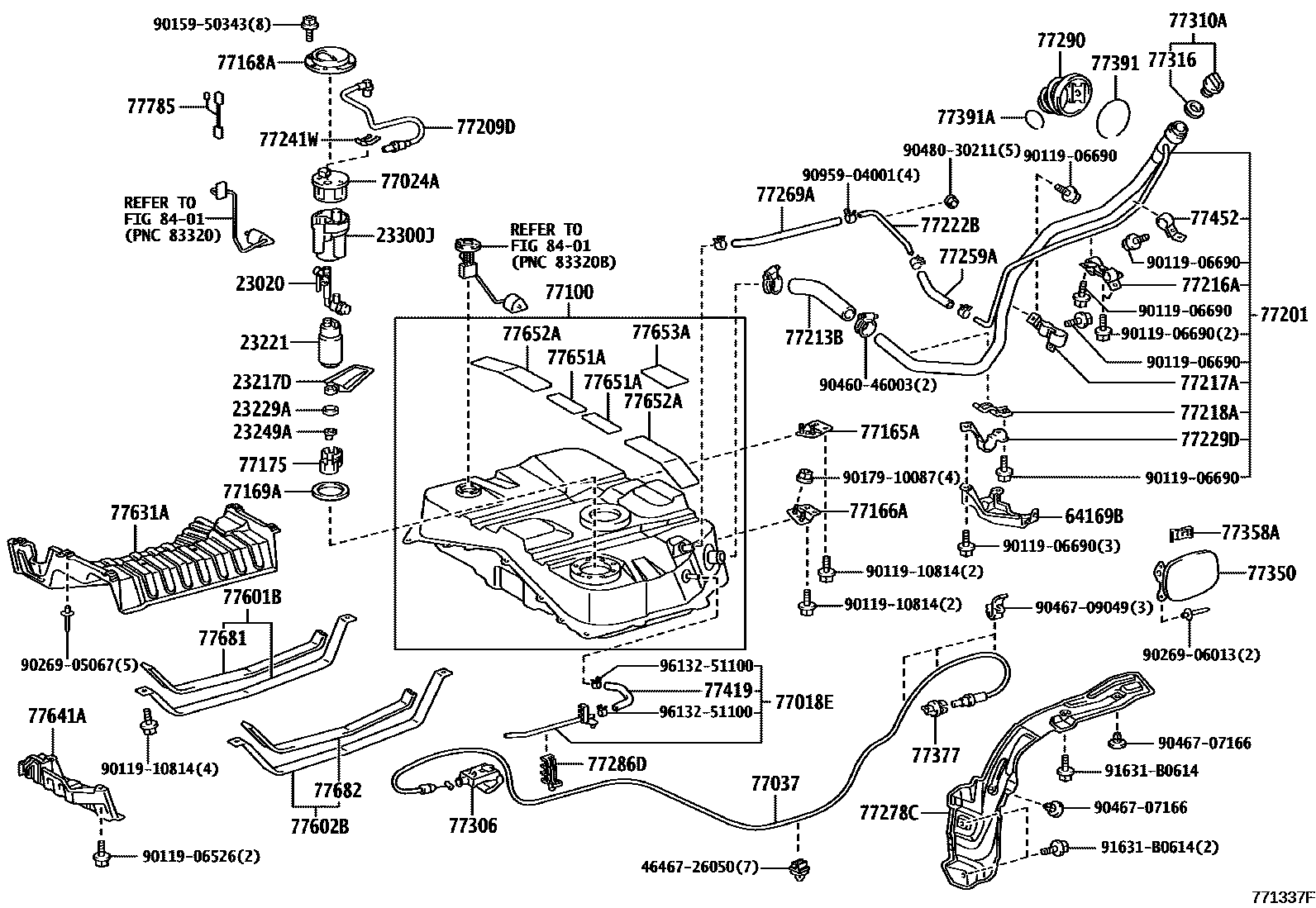

FUEL TANK & TUBE

0001 1��-�� ��� 0002 1��-�� ��-��

23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP

main23020-70010i2AZFXE..ATH10200307-200804

23217DFILTER, FUEL PUMP

main23217-76040i2AZFXE..ATH10200307

sub23217-46090

23221PUMP, FUEL

main23221-28020i2AZFXE..ATH10200307

sub23221-20040

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i2AZFXE..ATH10200307

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-46180i2AZFXE..ATH10200307-200804

23300JFILTER ASSY, FUEL

main23300-21010i2AZFXE..ATH10200307-200804

64169BPROTECTOR, FUEL INLET

main64169-58010iATH10200307

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-28101iATH10200307

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30070iATH10200307

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-58010iATH10200307

77100TANK ASSY, FUEL

main77001-28521iATH10200307-200511

main77001-28522iATH10200512

sub77001-28523

77165ABRACKET, FUEL TANK MOUNTING, REAR NO.2 RH

main77165-28020iATH10200307

77166ABRACKET, FUEL TANK MOUNTING, REAR NO.2 LH

main77166-28040iATH10200307

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iATH10200307

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iATH10200307

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30050iATH10200307

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-58020iATH10200307

sub77201-58040

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-28030iATH10200307

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-28030iATH10200307-200406

main77213-58010iATH10200406

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-58020iATH10200307

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-58020iATH10200307

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-28030iATH10200307

77222BTUBE, FUEL TANK BREATHER, NO.2

main77222-28060iATH10200307

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-28050iATH10200307

77241WCLIP, TUBE JOINT

main77241-33011iATH10200307

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-28060iATH10200307

77269AHOSE, FUEL TANK BREATHER

main77269-28010iATH10200307

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-58010iATH10200307-200804

77286DCLAMP, FUEL TUBE, NO.2

main77286-28020iATH10200307

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-28030iATH10200307

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-58010-A0iATH10200307-200804

IVORY,TRIM0#

sub77306-28050

77310ACAP ASSY, FUEL TANK

main77310-48010iATH10200307

77316GASKET, FUEL TANK CAP

main77316-16010iATH10200307

77350LID ASSY, FUEL FILLER OPENING

main77350-58010iATH10200307

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060iATH10200307

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iATH10200307

77391RING, FUEL INLET BOX

main77391-28010iATH10200307

77391ARING, FUEL INLET BOX

main77391-28020iATH10200307

77419HOSE, FUEL, NO.3

main77419-28010iATH10200307

77452SUPPORT, FUEL INLET HOSE PROTECTOR, NO.1

main77452-28010iATH10200307

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-28090iATH10200307

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-28020iATH10200307

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77606-28050iATH10200307

77641APROTECTOR, FUEL TANK, NO.1

main77641-28090iATH10200307

77651ACUSHION, FUEL TANK, NO.1

main77651-44010×2iATH10200307

77652ACUSHION, FUEL TANK, NO.2

main77652-28020×2iATH10200307

77653ACUSHION, FUEL TANK, NO.3

main77653-60060iATH10200307

77681SEAT, FUEL TANK BAND, RH

main77682-16010×2iATH10200307

77682SEAT, FUEL TANK BAND, LH

main77682-16010×2iATH10200307

77785HARNESS, FUEL PUMP

main77785-52020iATH10200307

8401

4646726050CLAMP, CABLE

main46467-26050

9011906526

main90119-06526

9011906690

main90119-06690

9011910814

main90119-10814

9015950343

main90159-50343

9017910087

main90179-10087

9026905067

main90269-05067

9026906013

main90269-06013

9046046003

main90460-46003

9046707166

main90467-07166

9046709049

main90467-09049

9048030211

main90480-30211

9095904001

main90959-04001

91631B0614

main91631-B0614

9613251100

main96132-51100
