REAR SEAT & SEAT TRACK

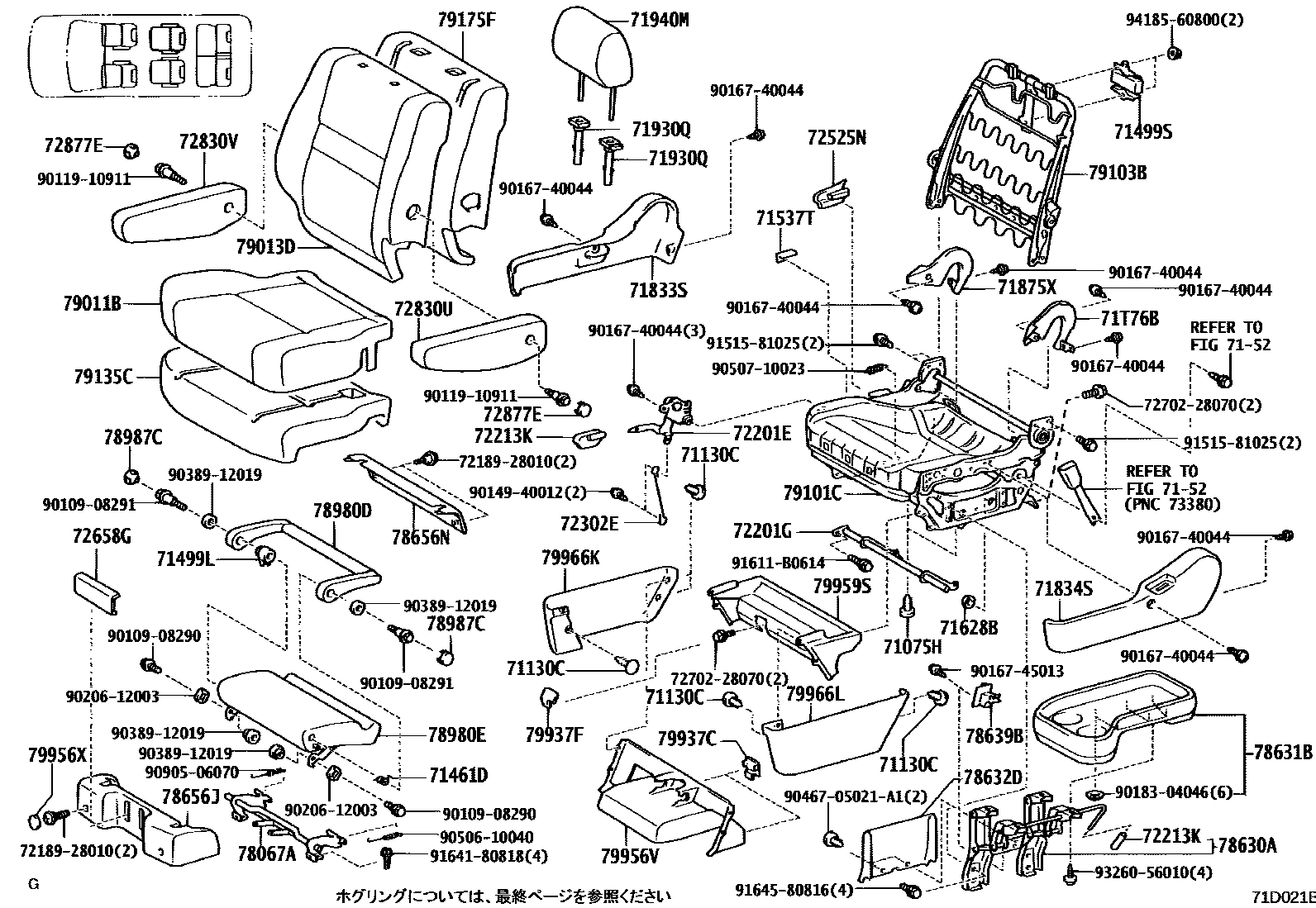

Parts diagram
71075HCLIP(FOR REAR SEAT)
main71236-28030i200403-200504
main90467-07090-A0i200307-200402
sub90467-07090
sub90467-07207
main90467-07090-A0i200307-200402
IVORY,TRIM0#
sub90467-07090
sub90467-07207
main90467-07090-A0i200307-200402
sub90467-07090
sub90467-07207
main90467-07090-A0i200307-200402
sub90467-07090
sub90467-07207
71130CCLIP, REAR SEAT LEG
main90467-05020-A4i200307-200504
IVORY,TRIM0#
sub90467-05020
sub90467-05027
71461DSPRING, NO.1 SEAT CUSHION, NO.1(FOR RH SEAT)
main71461-28090i200307-200504
main71461-28090i200307-200504
71499LDAMPER, NO.1 SEATBACK SPRING, RH
main71499-28030i200307-200504
main71499-28030i200307-200504
71499SDAMPER, SEAT CUSHION SPRING
main71499-58010i200307-200504
7152
71537TPROTECTOR, REAR SEAT CUSHION, NO.1
main71537-26010i200307-200804
main71537-28070i200307-200504
71628BSPACER, REAR SEAT CUSHION, RH
main71628-28020i200307-200504
71833SCOVER, REAR SEAT RECLINING, NO.1 RH
main71811-58010-A0i200307-200804
IVORY,TRIM0#
sub71811-58010
main71811-58050-A0i200307-200504
IVORY,TRIM0#
sub71811-58050
71834SCOVER, REAR SEAT RECLINING, NO.1 LH
main71811-58020-A0i200307-200804
IVORY,TRIM0#
sub71811-58020
main71812-58060-A0i200307-200504
IVORY,TRIM0#
71875XCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-28040-A0i200307-200504
IVORY,TRIM0#
sub71875-28040
main71875-58010-A0i200307-200804
IVORY,TRIM0#
sub71875-58010
71930QSUPPORT ASSY, REAR SEAT HEADREST
main71930-42020-A0i200307-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200307-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200307-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200307-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-52030-A0i200707-200804
sub71930-52030
main71930-52030-A0i200707-200804
sub71930-52030
main71930-52030-A0i200707-200804
sub71930-52030
main71930-52030-A0i200707-200804
sub71930-52030
main71930-52030-A0i200707-200804
sub71930-52030
main71930-52030-A0i200707-200804
sub71930-52030
main71931-42020-A0i200307-200804
sub71931-42020
main71931-42020-A0i200307-200804
sub71931-42020
main71931-42020-A0i200307-200804
sub71931-42020
main71931-42020-A0i200307-200804
sub71931-42020
main71931-42020-A0i200307-200804
sub71931-42020
71940MHEADREST ASSY, REAR SEAT
main71910-58050-A2i200307-200504
main71910-58050-A2i200307-200504
main71910-58050-A2i200307-200504
IVORY,TRIM0#
main71910-58080-A0i200504-200804
sub71910-58080
main71910-58080-A0i200504-200804
sub71910-58080
main71910-58080-A0i200504-200804
sub71910-58080
main71910-58080-A0i200504-200804
sub71910-58080
main71910-58080-A0i200504-200804
sub71910-58080
main71910-58080-A0i200504-200804
IVORY,TRIM0#
sub71910-58080
main71910-58080-A0i200504-200804
sub71910-58080
71T76BCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-28040-A0i200307-200504
IVORY,TRIM0#
sub71876-28040
main71876-58010-A0i200307-200804
IVORY,TRIM0#
sub71876-58010
72201EHANDLE SUB-ASSY, SEAT TRACK RH
main72201-28130i200307-200504
72201GHANDLE SUB-ASSY, SEAT TRACK, RH
main72201-58010i200307-200504
72213KKNOB, SEAT TRACK ADJUSTING HANDLE, RH
main72213-28030-C0i200307-200504
sub72213-28030
main72213-28060-A0i200307-200504
sub72213-28060
72302EWIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING
main72312-58030i200307-200504
72525NHANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
main72525-44010-A1i200307-200504
IVORY,TRIM0#
sub72525-44010
main72525-58020-A0i200307-200804
IVORY,TRIM0#
sub72525-58020
72658GKNOB, REAR SEAT LOCK HANDLE, RH
main72658-28030-A0i200307-200504
IVORY,TRIM0#
sub72658-28030
main72658-28030-A0i200307-200504
sub72658-28030
main72658-28030-A0i200307-200504
sub72658-28030
72830UARMREST ASSY, REAR SEAT, RH
main72890-58220-A0i200307-200504
main72890-58220-A0i200307-200504
main72890-58220-A0i200307-200504
IVORY,TRIM0#
72830VARMREST ASSY, REAR NO.1 SEAT, RH
main72880-58190-A0i200307-200504
IVORY,TRIM0#
main72880-58210-A0i200307-200504
IVORY,TRIM0#
main72880-58370-A0i200504-200804
IVORY,TRIM0#
72877ECOVER, NO.1 SEAT ARMREST, RH
main72848-28030-A0i200307-200504
IVORY,TRIM0#
sub72848-28030
78067ABRACKET SUB-ASSY, REAR SEAT LEGREST, OUTER(FOR RH SEAT)
main78067-28010i200307-200504
main78067-28010i200307-200504
78630AADJUSTER ASSY, FR0NT SEAT SIDE TABLE
main78630-28010-A0i200307-200504
IVORY,TRIM0#
sub78630-28010
78631BTABLE, REAR SEAT SIDE
main78061-28040-A0i200307-200504
IVORY,TRIM0#
sub78061-28040
78632DCOVER, REAR SEAT SIDE TABLE, NO.1
main78632-26010-A0i200307-200504
IVORY,TRIM0#
sub78632-26010
78639BCLIP, REAR SEAT SIDE TABLE
main78639-26010-A0i200307-200504
IVORY,TRIM0#
sub78639-26010
78656JCOVER, REAR SEAT LEGREST, RH
main78656-28050-A0i200307-200504
IVORY,TRIM0#
sub78656-28050
main78656-28050-A0i200307-200504
sub78656-28050
main78656-28050-A0i200307-200504
sub78656-28050
78656NCOVER, REAR SEAT LEGREST, RH NO.2
main78656-28060-A0i200307-200504
IVORY,TRIM0#
sub78656-28060
main78656-28060-A0i200307-200504
sub78656-28060
main78656-28060-A0i200307-200504
sub78656-28060
78980DFOOTREST ASSY, REAR SEAT, NO.1
main78980-28010-A0i200307-200504
IVORY,TRIM0#
sub78980-28010
main78980-28010-A0i200307-200504
sub78980-28010
main78980-28010-A0i200307-200504
sub78980-28010
78980EFOOTREST ASSY, REAR SEAT, NO.2
main78980-58050-A1i200307-200504
IVORY,TRIM0#
main78980-58050-A1i200307-200504
main78980-58050-A1i200307-200504
78987CCOVER, REAR NO.1 SEAT FOOTREST, NO.1 RH
main78987-28010-A0i200307-200504
IVORY,TRIM0#
sub78987-28010
main78987-28010-A0i200307-200504
sub78987-28010
main78987-28010-A0i200307-200504
sub78987-28010
79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH
main79011-58090-A1i200307-200504
IVORY,TRIM0#
main79011-58110-A1i200307-200504
IVORY,TRIM0#
main79011-58150-A0i200504-200804
IVORY,TRIM0#
sub79011-58151
79013DCOVER SUB-ASSY, NO.1 SEATBACK, RH
main79013-58150-A1i200307-200504
IVORY,TRIM0#
main79013-58170-A1i200307-200504
IVORY,TRIM0#
main79013-58270-A0i200504-200804
IVORY,TRIM0#
sub79013-58271
79101CFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
main79101-58010i200307-200504
79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH
main79103-58030i200307-200504
79135CPAD, NO.1 SEAT CUSHION, RH
main79135-58010i200307-200804
main79135-58030i200307-200504
79175FPAD, NO.1 SEATBACK, RH
main79175-58010i200307-200804
main79175-58030i200307-200504
79937CCOVER, NO.1 SEAT LEG, NO.1(FOR RH SEAT)
main79937-58030-A0i200307-200804
IVORY,TRIM0#
sub79937-58030
79937FCOVER, NO.1 SEAT LEG, NO.2(FOR LH SEAT)
main79937-28050-A0i200307-200804
IVORY,TRIM0#
sub79937-28050
main79937-28050-A0i200307-200804
sub79937-28050
main79937-28050-A0i200307-200804
sub79937-28050
79956VCOVER, REAR SEAT LEG SIDE, RH
main79966-58010-A0i200307-200504
IVORY,TRIM0#
sub79966-58010
79956XCAP(FOR REAR SEAT LEG SIDE COVER)
main90339-10001-A0i200307-200504
sub90339-10001
main90339-10001-A0i200307-200504
IVORY,TRIM0#
sub90339-10001
main90339-10001-A0i200307-200504
sub90339-10001
79959SCOVER, REAR SEAT LEG, RH
main79965-58010-A0i200307-200504
IVORY,TRIM0#
sub79965-58010
79966KCOVER, REAR SEAT LEG, RH(FOR RH SEAT)
main79968-58010-A0i200307-200504
IVORY,TRIM0#
sub79968-58010
79966LCOVER, REAR SEAT LEG, LH(FOR RH SEAT)
main79969-58010-A0i200307-200504
IVORY,TRIM0#
sub79969-58010
7218928010
main72189-28010
7270228070BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-28070
9010908290
main90109-08290
9010908291
main90109-08291
9011910911
main90119-10911
9014940012
main90149-40012
9016740044
main90167-40044
9016745013
main90167-45013
9018304046
main90183-04046
9020612003
main90206-12003
9038912019
main90389-12019
9046705021A1
main90467-05021A1
9050610040
main90506-10040
9050710023
main90507-10023
9090506070
main90905-06070
9151581025
main91515-81025
91611B0614
main91611-B0614
9164180818
main91641-80818
9164580816
main91645-80816
9326056010
main93260-56010
9418560800
main94185-60800

67 parts on this diagram · 10 diagrams in section
