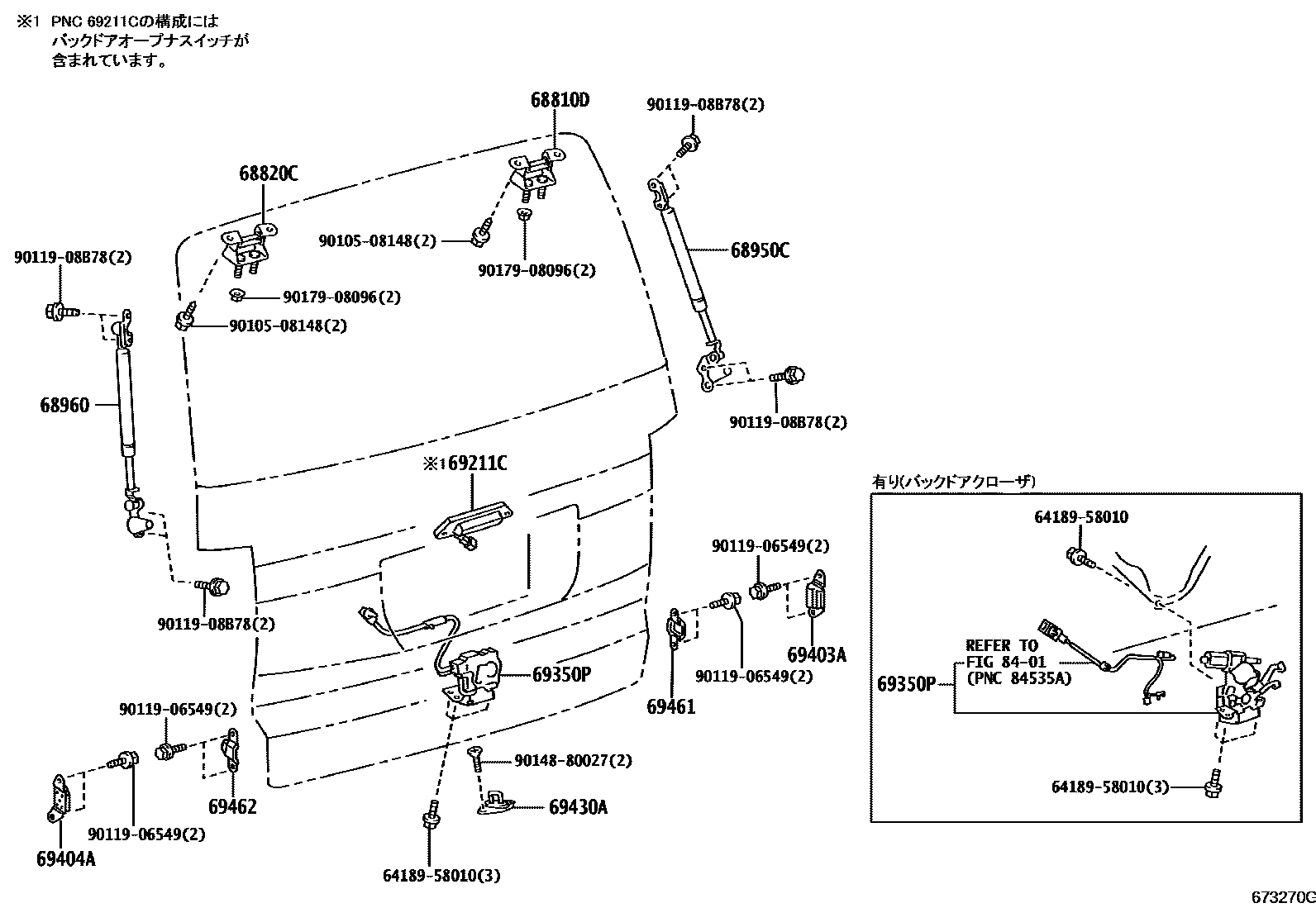

BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
sub68810-26011
68820CHINGE ASSY, BACK DOOR, LH
sub68820-26011
68950CSTAY ASSY, BACK DOOR, RH
sub68950-58060
sub68950-58060
sub68950-58090
sub68950-58090
sub68950-58070
sub68950-58070
sub68950-58070
sub68950-58070
sub68950-58090
68960STAY ASSY, BACK DOOR, LH
sub68960-58060
sub68960-58060
sub68960-58090
sub68960-58090
sub68960-58070
sub68960-58070
sub68960-58070
sub68960-58070
sub68960-58090
69211CHANDLE, BACK DOOR OUTSIDE
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
8401
6418958010CLAMP, BACK PANEL SILENCER
main64189-58010
9010508148
main90105-08148
9011906549
main90119-06549
9011908B78
main90119-08B78
9014880027
main90148-80027
9017908096
main90179-08096
18 parts on this diagram · 2 diagrams in section
