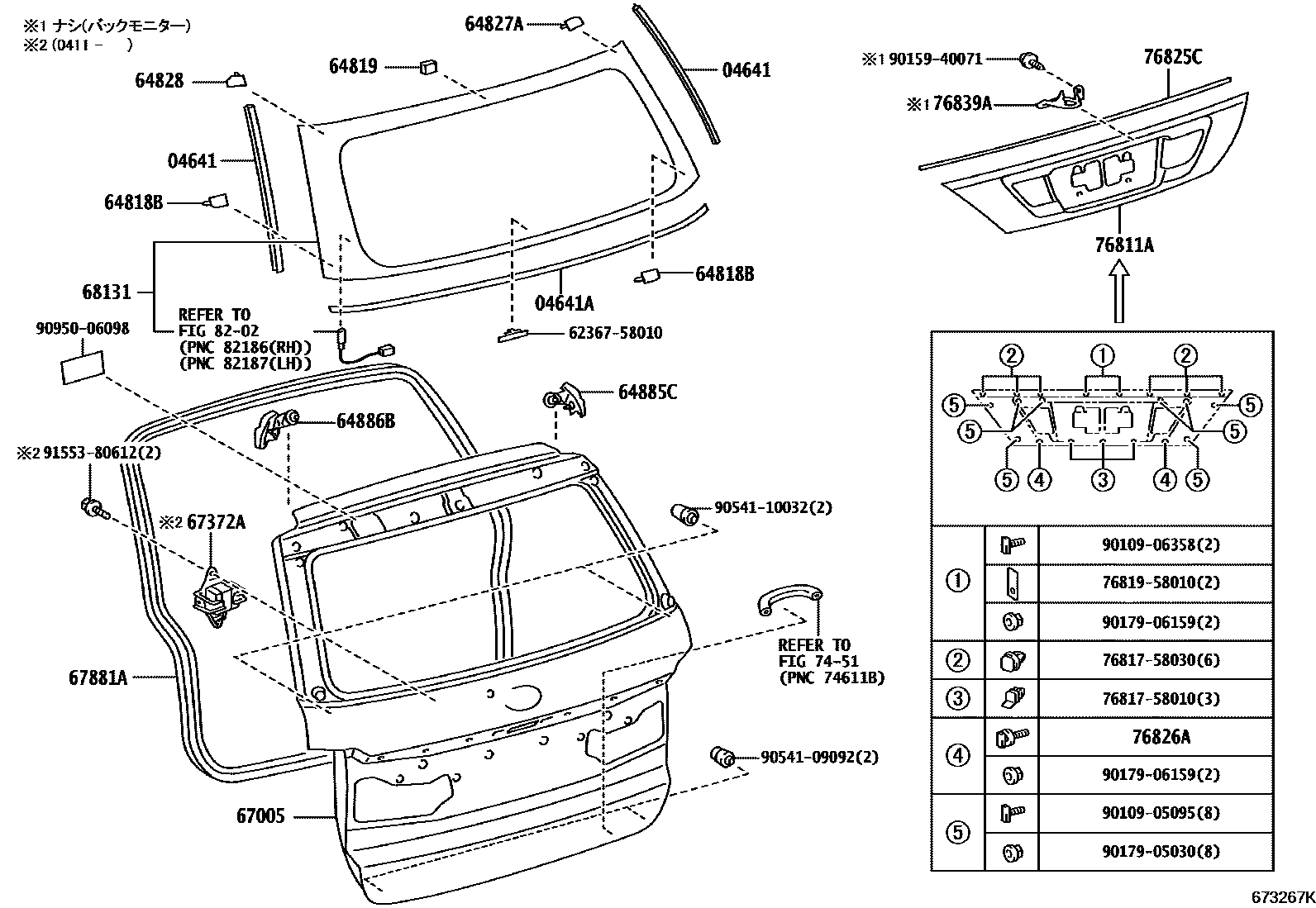

BACK DOOR PANEL & GLASS
04641DAM KIT, BACK WINDOW GLASS
�E��
04641ADAM KIT, BACK WINDOW GLASS ADHESIVE
64818BSPACER, BACK DOOR GLASS, NO.1
�E��
����
64819SPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67372AWEIGHT, BACK DOOR
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
���d�g�s�C�������R�D�P�C�_�[�N�O���[
7451
76811AGARNISH, BACK DOOR, OUTSIDE
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
76826ARETAINER, BACK DOOR GARNISH, NO.1
76839ACOVER, BACK DOOR GARNISH
8202
6236758010CLIP, DOOR WINDOW GLASS, NO.1
7681758010CLIP, BACK DOOR OUTSIDE GARNISH
7681758030CLIP, BACK DOOR OUTSIDE GARNISH
7681958010SEAL, BACK DOOR OUTSIDE GARNISH
9010905095
9010906358
9015940071
9017905030
9017906159
9054109092
9054110032
9095006098
9155380612
31 parts on this diagram · 3 diagrams in section
