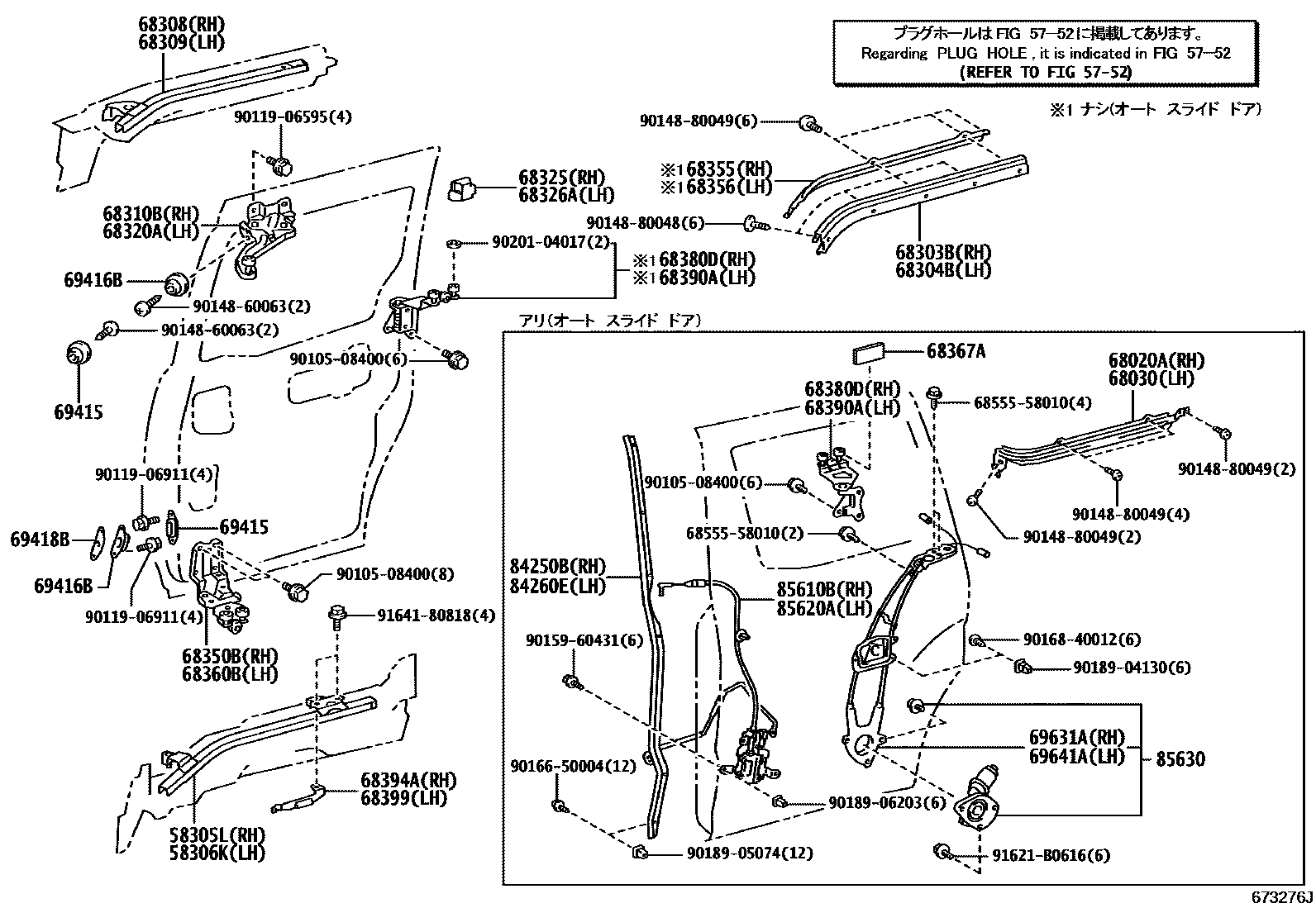

SLIDE ROLLER & RAIL

5752

58305LGUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main58305-58010iATH10¥4,080200307-200804

58306KGUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main58306-58010iATH10¥4,080200307-200804

68020AGUIDE ASSY, SLIDE DOOR CABLE, RH

68030GUIDE ASSY, SLIDE DOOR CABLE

main68030-58010¥7,500

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-58011iATH10¥11,400200307-200308

sub68303-58012¥11,400

main68303-58012iATH10¥11,400200308

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-58011iATH10¥11,400200307-200308

sub68304-58012¥11,400

main68304-58012iATH10¥11,400200308

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-58011iATH10¥3,700200307-200804

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-58011iATH10¥3,700200307-200804

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-58010iATH10¥5,400200307

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-58010iATH10¥5,400200307

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-58014iATH10¥910200307-200603

sub68325-58015¥910

main68325-58015iATH10¥910200604

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-58014iATH10¥910200307-200603

sub68326-58015¥910

main68326-58015iATH10¥910200604

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-58010iATH10¥13,900200307

68355GARNISH, SLIDE DOOR CENTER RAIL, RH

main60835-58010iATH10¥4,240200307

68356GARNISH, SLIDE DOOR CENTER RAIL, LH

main60836-58010iATH10¥4,240200307

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-58010iATH10¥13,900200307

68367APAD, SLIDE DOOR CENTER RAIL

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-58010iATH10¥5,100200307-200311

sub68380-58011¥5,100

main68380-58011iATH10¥5,100200311

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-58010iATH10¥5,100200307-200311

sub68390-58011¥5,100

main68390-58011iATH10¥5,100200311

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-28020iATH10¥360200307

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-28030iATH10¥360200307

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-26020iATH10¥780200410

main69415-28021iATH10¥1,040200307-200409

sub69415-58020¥780

main69415-58010iATH10¥710200307-200604

sub69415-58011¥680

main69415-58011iATH10¥680200605

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-58010iATH10¥450200510

sub69046-28020¥270

main69416-26020iATH10¥680200411-200510

main69416-28040iATH10¥520200307-200411

sub69416-26020¥680

main69416-58010iATH10¥590200307

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-28060iATH10¥360200307

69631ACONTROL, SLIDE DOOR ATTACHMENT, RH

69641ACONTROL, SLIDE DOOR ATTACHMENT, LH

84250BSENSOR ASSY, POWER SLIDE DOOR, RH

84260ESENSOR ASSY, POWER SLIDE DOOR

85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH

85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH

85630MOTOR ASSY, SLIDE DOOR

main85006-58010¥78,800

main85005-58010¥72,700

main85005-58011¥72,800

main85006-58011¥78,900

main85006-58012¥78,800

main85005-58012¥78,800

main85006-58013¥78,700

main85005-58013¥78,700

6855558010BOLT, DOOR STAY

main68555-58010¥120

9010508400

main90105-08400¥110

9011906595

main90119-06595¥220

9011906911

main90119-06911¥80

9014860063

main90148-60063¥60

9014880048

main90148-80048¥440

9014880049

main90148-80049¥60

9015960431

main90159-60431¥70

9016650004

main90166-50004¥60

9016840012

main90168-40012¥120

9018904130

main90189-04130¥130

9018905074

main90189-05074¥90

9018906203

main90189-06203¥70

9020104017

main90201-04017¥120

91621B0616

main91621-B0616¥100

9164180818

main91641-80818¥80

48 parts on this diagram · 1 diagram in section
