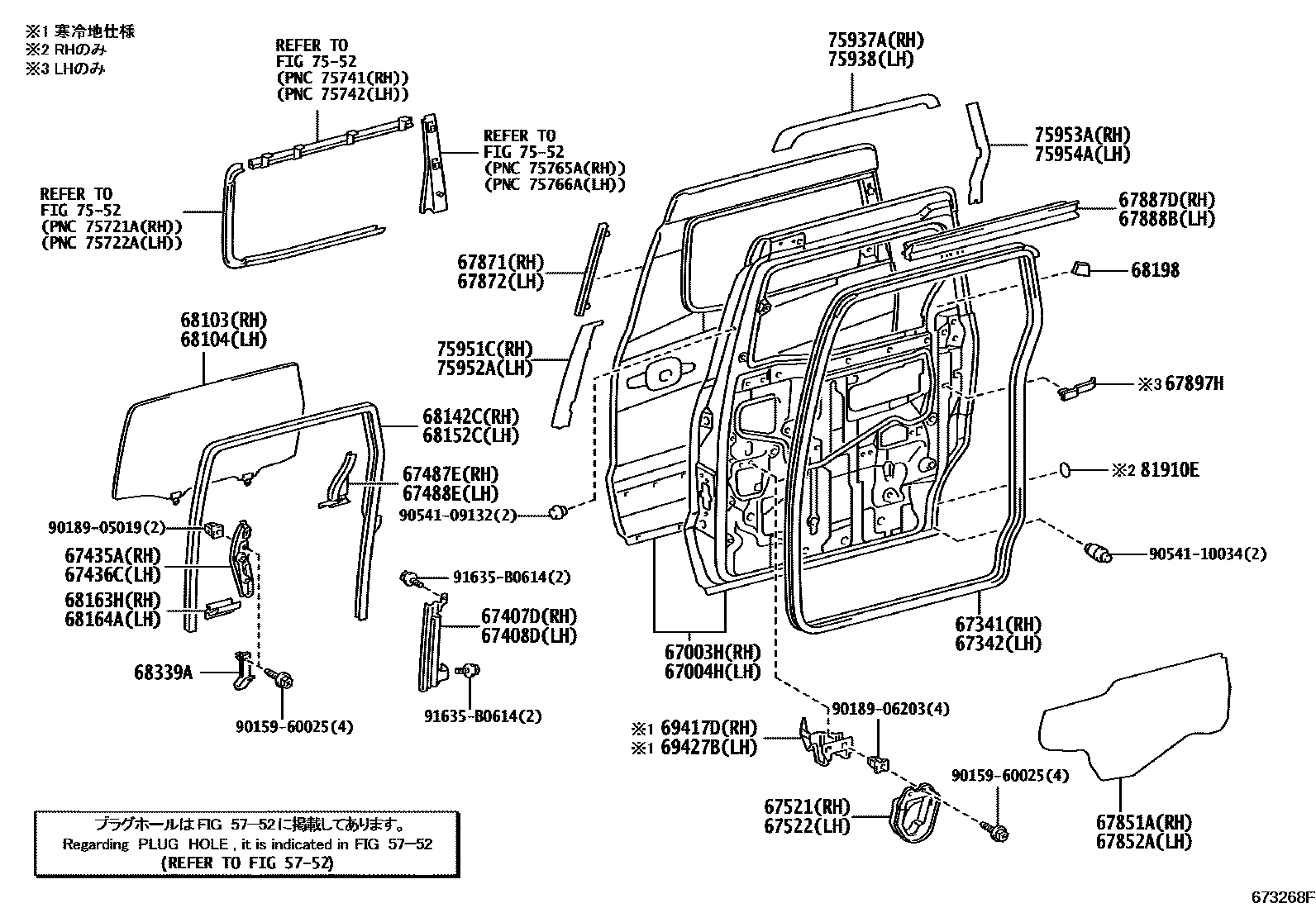

REAR DOOR PANEL & GLASS
5752
67003HDOOR SUB-ASSY, SLIDE, RH
67004HDOOR SUB-ASSY, SLIDE, LH
67341WEATHERSTRIP, SLIDE DOOR, RH
IVORY,TRIM0#
67342WEATHERSTRIP, SLIDE DOOR, LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67435AGUIDE, REAR DOOR WINDOW, FRONT RH
67436CGUIDE, REAR DOOR WINDOW, FRONT LH
67487EGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67488EGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH
67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH
67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH
67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH
67897HCUSHION, REAR DOOR
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68198SEAL, REAR DOOR BELT, REAR RH
68339AGUIDE, SLIDE DOOR CABLE
69417DCOVER, SLIDE DOOR OPEN STOP, RH
69427BCOVER, SLIDE DOOR OPEN STOP, LH
7552
75937ATAPE, BLACK OUT, INNER UPPER RH
75938TAPE, BLACK OUT, INNER UPPER LH
75951CTAPE, BLACK OUT, INNER FRONT RH
75952ATAPE, BLACK OUT, INNER FRONT LH
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
81910EREFLECTOR ASSY, REFLEX
9015960025
main90159-60025
9018905019
main90189-05019
9018906203
main90189-06203
9054109132
main90541-09132
9054110034
main90541-10034
91635B0614
main91635-B0614
44 parts on this diagram · 2 diagrams in section
