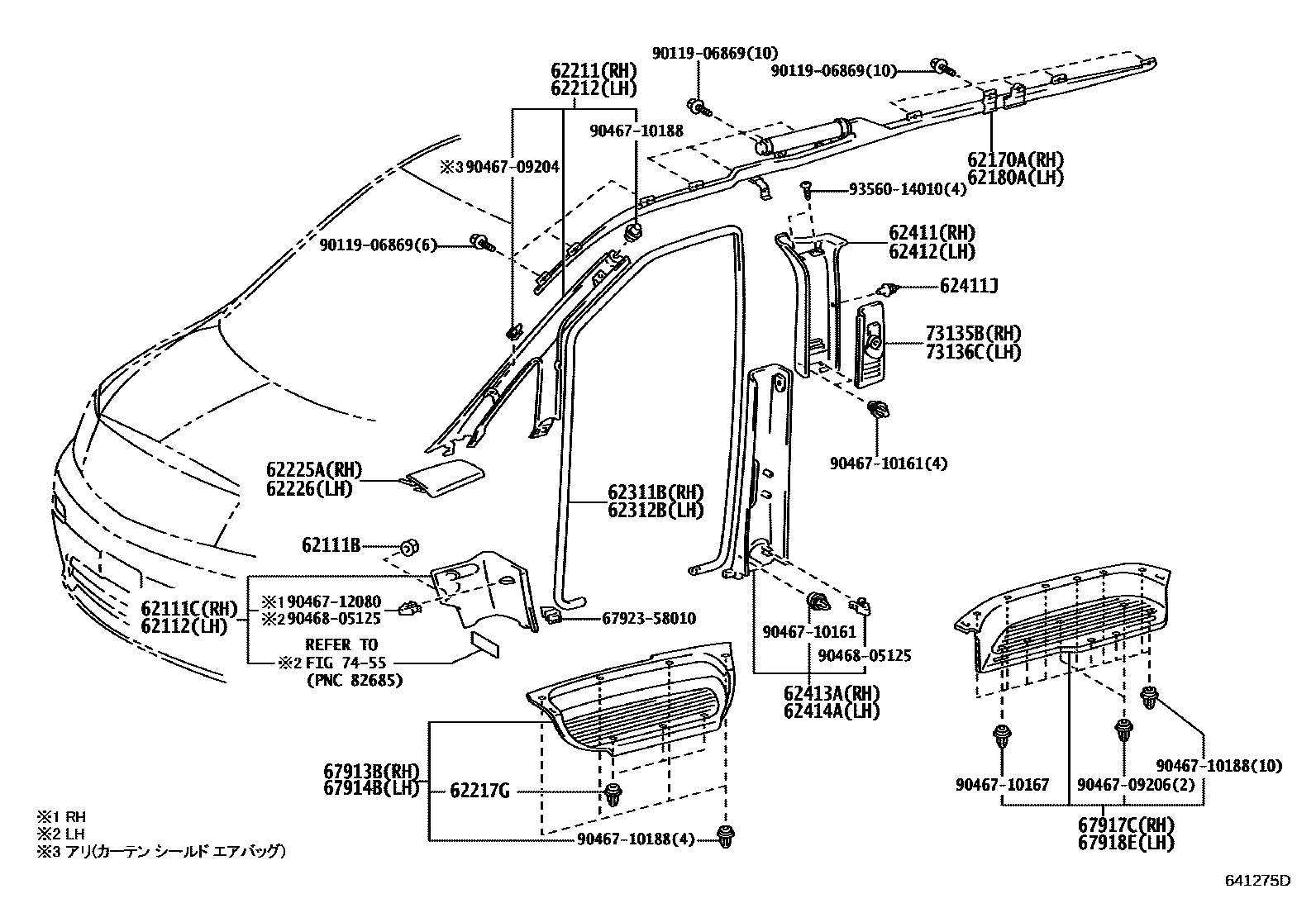

INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
IVORY,TRIM0#
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
IVORY,TRIM0#
62212GARNISH, FRONT PILLAR, LH
IVORY,TRIM0#
62217GCLIP, FRONT PILLAR GARNISH
62225AGARNISH, FRONT PILLAR, LOWER RH
IVORY,TRIM0#
62226GARNISH, FRONT PILLAR, LOWER LH
IVORY,TRIM0#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
IVORY,TRIM0#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
IVORY,TRIM0#
62411GARNISH, CENTER PILLAR, RH
IVORY,TRIM0#
62411JFASTENER(FOR CENTER PILLAR GARNISH)
62412GARNISH, CENTER PILLAR, LH
IVORY,TRIM0#
62413AGARNISH, CENTER PILLAR, LOWER RH
IVORY,TRIM0#
62414AGARNISH, CENTER PILLAR, LOWER LH
IVORY,TRIM0#
73135BCOVER, SHOULDER BELT ANCHOR, RH
73136CCOVER, SHOULDER BELT ANCHOR, LH
7455
6792358010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-58010
9011906869
main90119-06869
9046709204
main90467-09204
9046709206
main90467-09206
9046710161
main90467-10161
9046710167
main90467-10167
9046710188
main90467-10188
9046712080
main90467-12080
9046805125
main90468-05125
9356014010
main93560-14010
34 parts on this diagram · 2 diagrams in section
