SIDE WINDOW

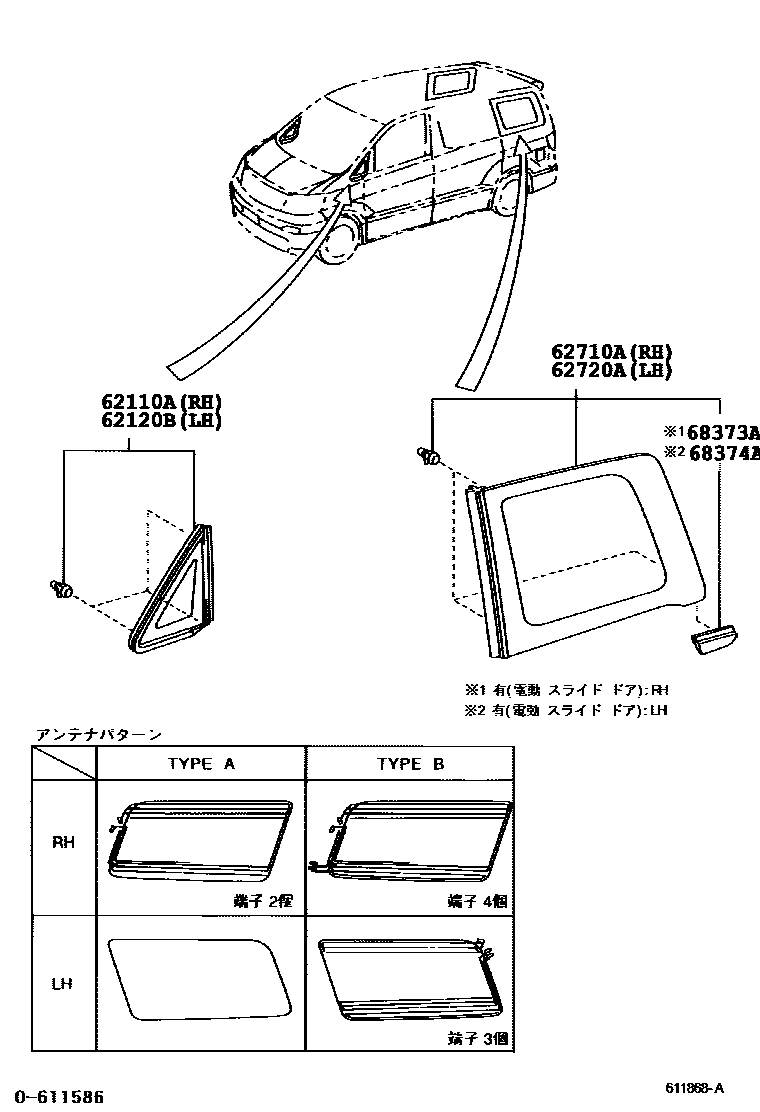

Parts diagram
62110AWINDOW ASSY, FRONT SIDE FIX, RH
main62110-58010i200307-200309
sub62110-58011
main62110-58011i200309
62120BWINDOW ASSY, FRONT SIDE FIX, LH
main62120-58010i200307-200309
sub62120-58011
main62120-58011i200309
62710AWINDOW ASSY, QUARTER, RH
main62710-58010i200307-200504
main62710-58090i200504
62720AWINDOW ASSY, QUARTER, LH
main62720-58010i200307-200504
68373AMOULDING, SLIDE RAIL END, RH
68374AMOULDING, SLIDE RAIL END, LH

6 parts on this diagram · 1 diagram in section
