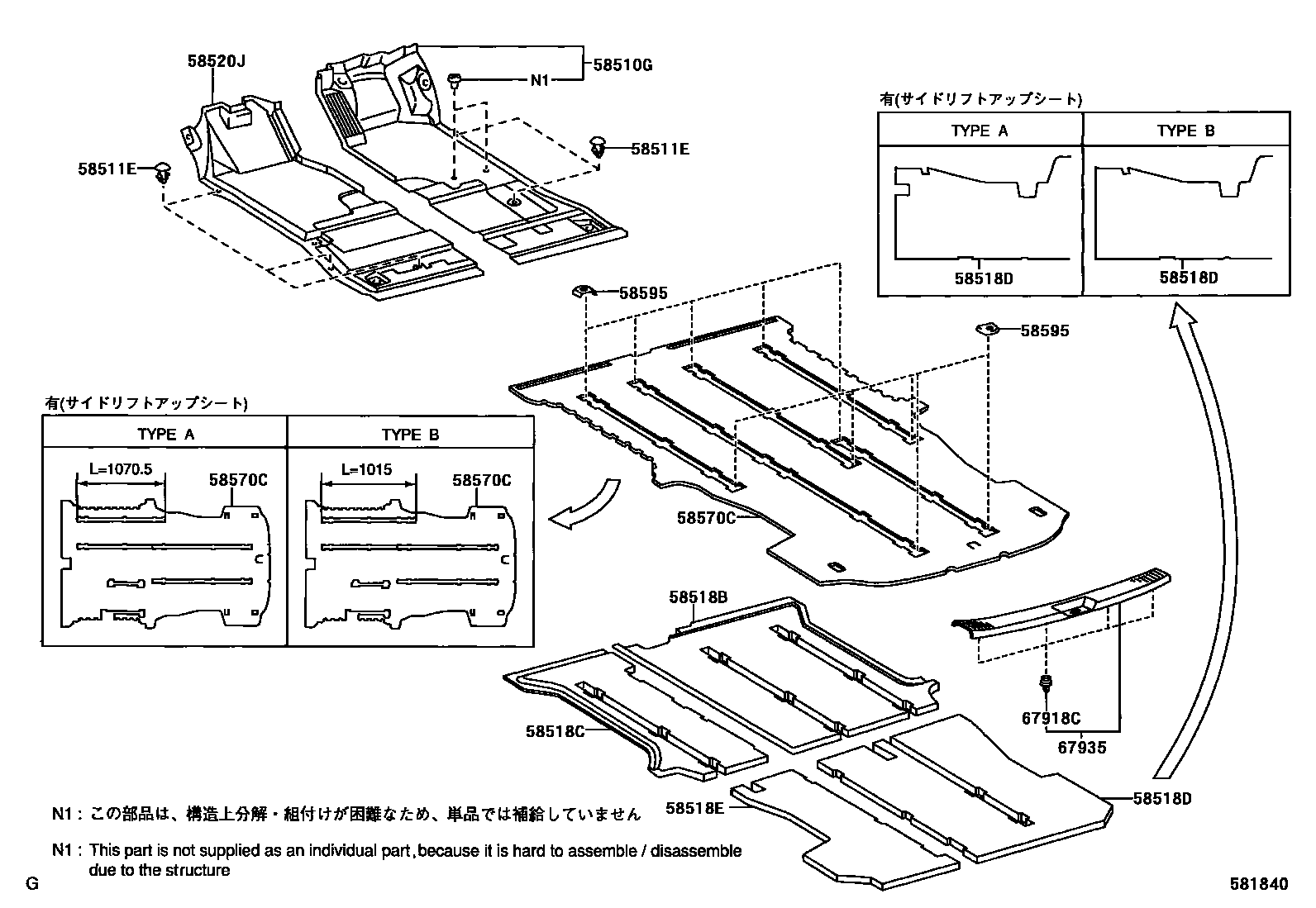

FLOOR MAT & SILENCER PAD
58510GCARPET ASSY, FLOOR, FRONT RH
58511ECLIP(FOR FRONT FLOOR MAT)
CREAM YELLOW,TRIM0#
58518BMAT, REAR FLOOR, NO.2
58518DMAT, REAR FLOOR, NO.2
58518EMAT, REAR FLOOR, NO.2
58520JCARPET ASSY, FLOOR, FRONT LH
IVORY,TRIM0#
58570CCARPET ASSY, REAR FLOOR
IVORY,TRIM0#
58595MOULDING, FLOOR CARPET, NO.3
67935PLATE, BACK DOOR SCUFF
IVORY,TRIM0#
11 parts on this diagram · 1 diagram in section
