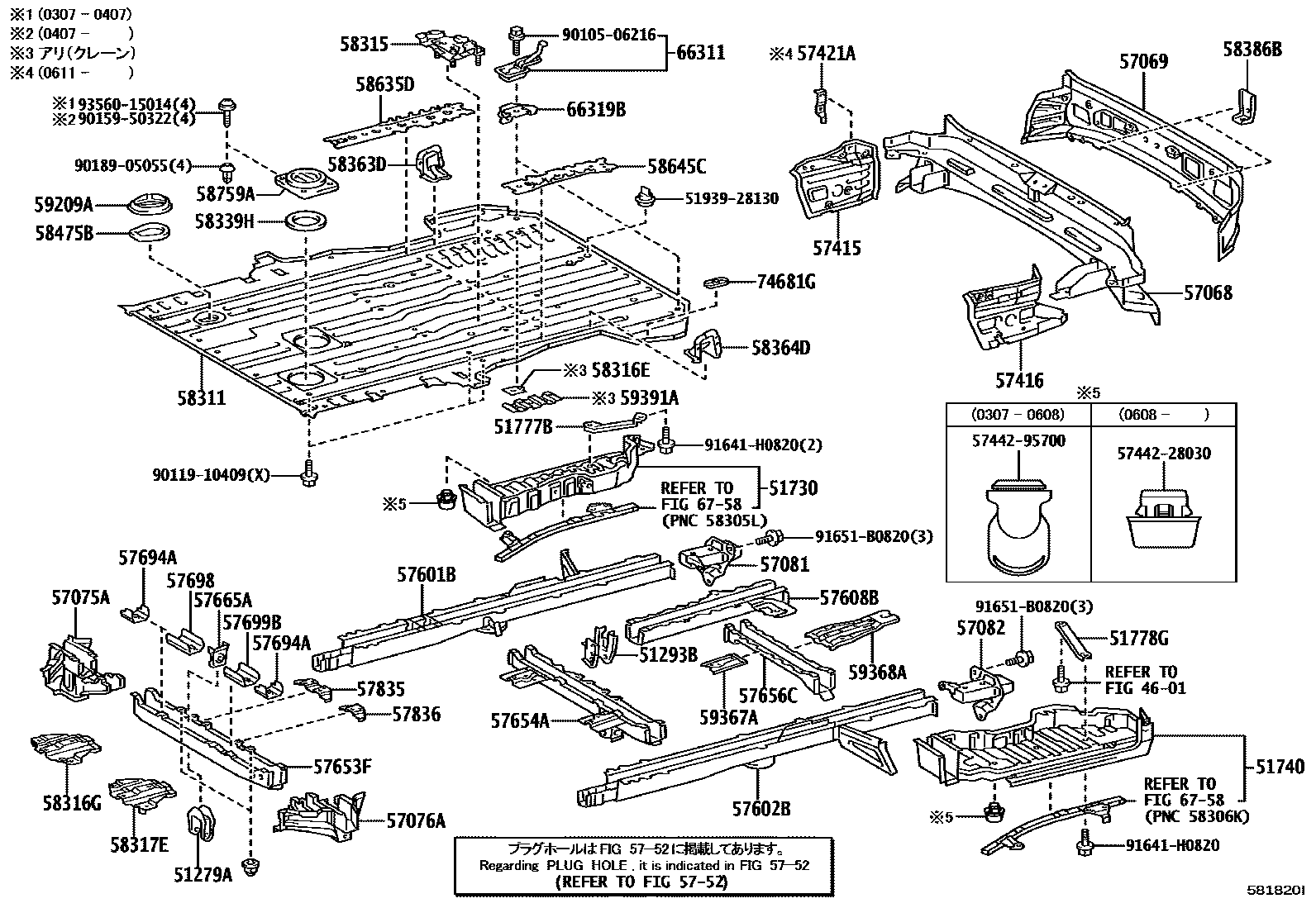

REAR FLOOR PANEL & REAR FLOOR MEMBER
4601
51279ABRACKET, DIFFERENTIAL SUPPORT
51293BBRACKET, DIFFERENTIAL SUPPORT DAMPER, RH
51730STEP ASSY, REAR FLOOR, RH
51740STEP ASSY, REAR FLOOR, LH
51777BSTAY, STEP PLATE
51778GSTAY, STEP PLATE, LH
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57075ABRACKET SUB-ASSY, REAR SUSPENSION ARM, RH
57076ABRACKET SUB-ASSY, REAR SUSPENSION ARM, LH
57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING
57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57415RAIL, FLOOR SIDE, REAR RH
57416RAIL, FLOOR SIDE, REAR LH
57421APLATE, FLOOR SIDE RAIL, RH
5752
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57653FMEMBER, REAR FLOOR CROSS, NO.2
57654AMEMBER, REAR FLOOR CROSS, NO.3
57656CMEMBER, REAR FLOOR CROOS, NO.5
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2
57698REINFORCEMENT, FUEL TANK
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58315EXTENSION, REAR FLOOR PANEL
58316ERETAINER, REAR SEAT SET
58316GRETAINER, REAR SEAT, NO.1
58317ERETAINER, REAR SEAT, NO.2
58339HPACKING, REAR FLOOR SERVICE HOLE
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58475BPACKING, INSPECTION HOLE COVER
58635DPLATE, REAR FLOOR, CENTER UPPER NO.1 RH
58645CPLATE, REAR FLOOR, CENTER UPPER NO.1 LH
58759ACOVER, FUEL TANK INSPECTION HOLE
59209ACOVER SUB-ASSY, INSPECTION HOLE
59367ARETAINER, REAR SEAT, NO.4
59368ARETAINER, REAR SEAT, NO.2
59391ARETAINER, REAR FLOOR, NO.1
66311HOOK, ROPE
66319BBRACKET, ROPE HOOK
6758
74681GRETAINER, ASSIST GRIP
5193928130CUP, SPARE TIRE CARRIER WINCH
5744228030PLUG, STEP PANEL HOLE
5744295700PLUG, STEP PANEL HOLE
9010506216
9011910409
9015950322
9018905055
91641H0820
91651B0820
9356015014
60 parts on this diagram · 2 diagrams in section
