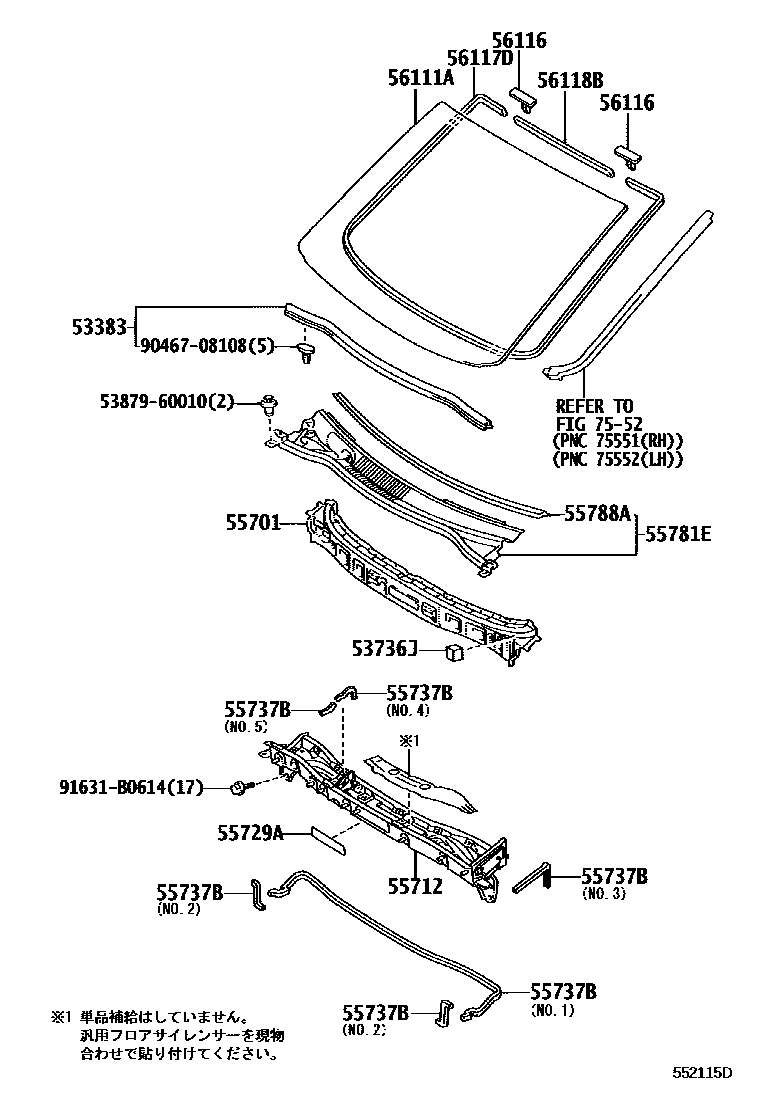

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-58010iATH10200307

53736JSEAL, FENDER APRON

main53736-58010iATH10200307

55701PANEL SUB-ASSY, COWL

main55700-58010iATH10200307-200804

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-58020iATH10200307

55729ACOVER, COWL PANEL HOLE

main55729-28010iATH10200307

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-58010iATH10200307-200804

main55737-58020iATH10200307-200804

main55737-58030iATH10200307-200804

main55737-58040iATH10200307-200804

main55737-58050iATH10200307-200804

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-58010iATH10200307

sub55708-58020

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-58010iATH10200307

56111AGLASS, WINDSHIELD

main56101-58040iATH10200307-200312

sub56101-58041

main56101-58041iATH10200312-200804

56116SPACER, WINDSHIELD GLASS

main56116-35050iATH10200307

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-58010iATH10200307

sub56117-47010

main56117-58010iATH10200307

sub56117-47010

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-58010iATH10200307

sub64813-52010

main56118-58010iATH10200307

sub64813-52010

7552

5387960010LINER, FRONT FENDER, LH

main53879-60010

9046708108

main90467-08108

91631B0614

main91631-B0614

16 parts on this diagram · 1 diagram in section
