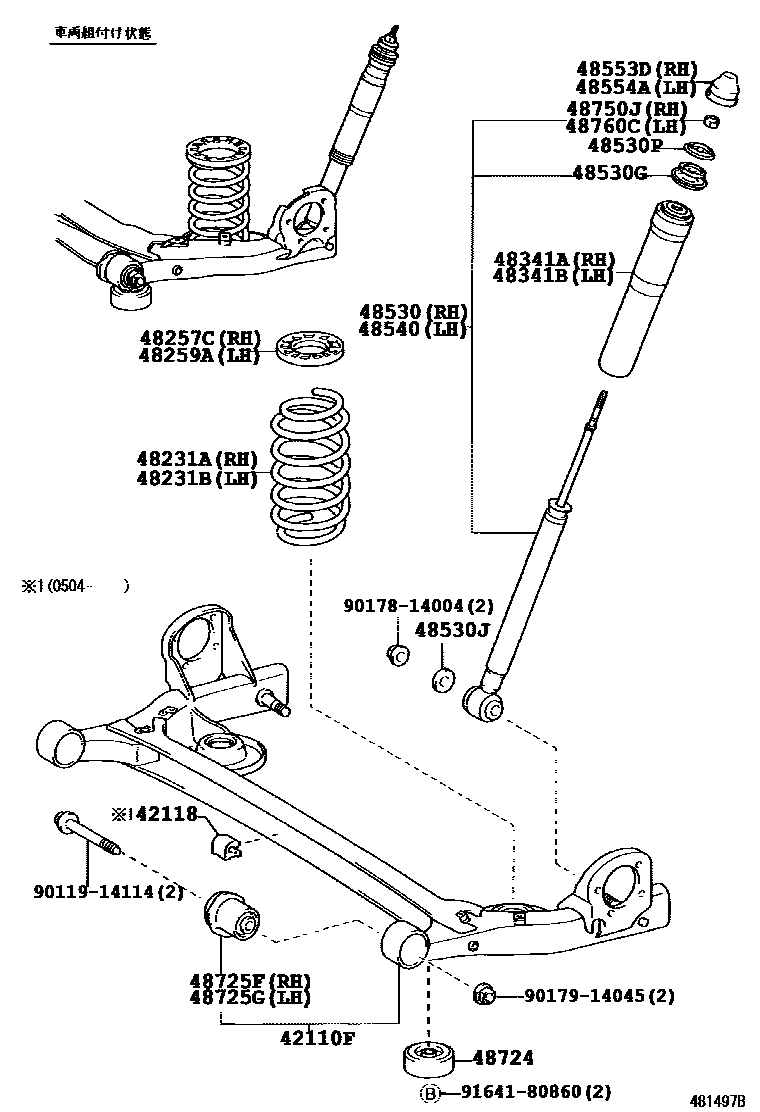

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-58020iATH10200307

42118DAMPER, REAR AXLE BEAM

main42118-58010iATH10200504

48231ASPRING, COIL, REAR RH

main48231-58050iATH10200307

48231BSPRING, COIL, REAR LH

main48231-58050iATH10200307

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-28060iATH10200307

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-28060iATH10200307

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-28100iATH10200307

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-28100iATH10200307

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-59025iATH10200307-200709

sub48531-59055

main48531-59055iATH10200709

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90905-40019iATH10200307

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90560-14028iATH10200404

main90948-02060iATH10200307-200403

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02159iATH10200307

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-59025iATH10200307-200709

sub48531-59055

main48531-59055iATH10200709

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-28010iATH10200307

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-28010iATH10200307

48724DAMPER, LWR CONTROL ARM DYNAMIC

main48724-44010iATH10200307

48725FBUSH, REAR AXLE CARRIER, RH

main48725-58010iATH10200307

48725GBUSH, REAR AXLE CARRIER, LH

main48725-58010iATH10200307

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-12045iATH10200307-200709

sub94130-61200

main94130-61200iATH10200709

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-12045iATH10200307-200709

sub94130-61200

main94130-61200iATH10200709

9011914114

main90119-14114

9017814004

main90178-14004

9017914045

main90179-14045

9164180860

main91641-80860

24 parts on this diagram · 1 diagram in section
