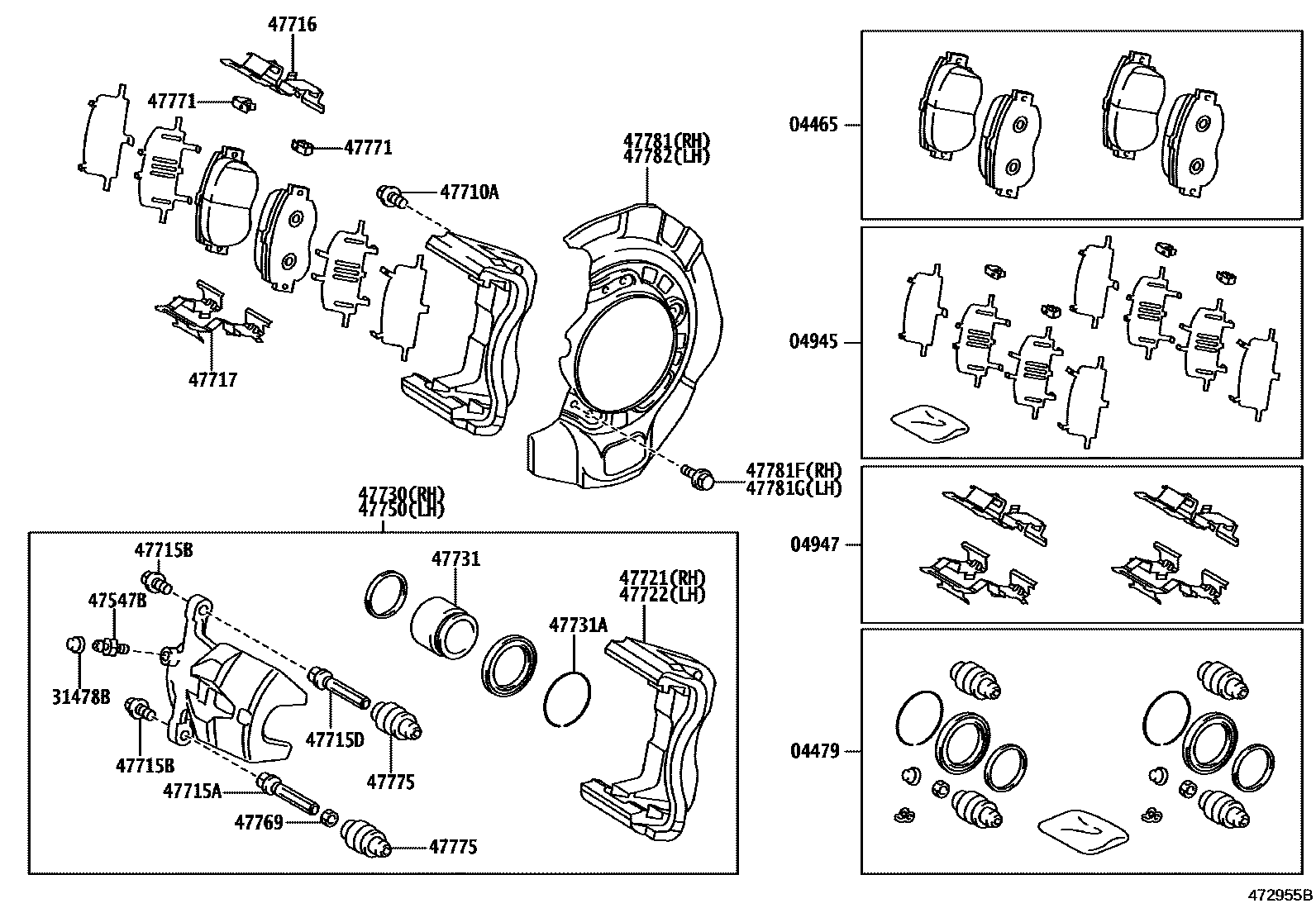

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-65021i200307

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-58010i200605

main04479-33150i200307-200605

sub04478-58010

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-58010i200307

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33180i200307

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i200307

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i200307

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i200307-200804

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070i200307

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164i200307

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33050i200307

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33130i200307

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-33100i200307

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33160i200307

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-33160i200307

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-58010i200307

47731PISTON, FRONT DISC BRAKE

main47731-33090i200307

sub47731-33340

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002i200307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-58010i200307

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i200307

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33020i200307

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070i200307-200604

sub47775-50010

main47775-50010i200605

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48020i200307-200804

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227i200307-200804

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227i200307-200804

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48020i200307-200804

25 parts on this diagram · 1 diagram in section
