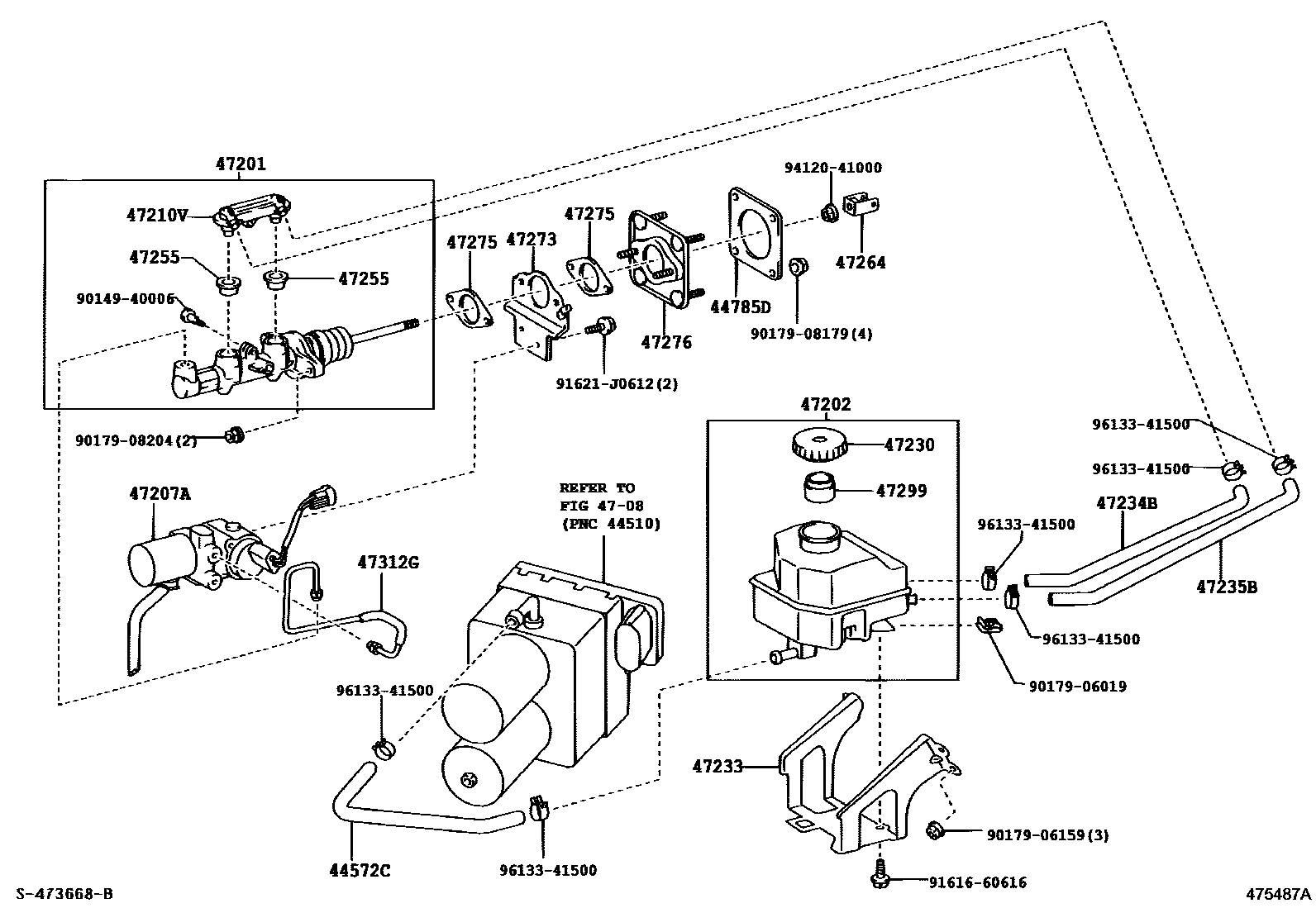

BRAKE MASTER CYLINDER

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-58011iATH10200307-200804

44785DGASKET, BRAKE MASTER CYLINDER

main44785-58010iATH10200307

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-58030iATH10200307

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-58010iATH10200307

47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR

main47207-58010iATH10200307

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40402iATH10200307

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-58010iATH10200307

sub47230-11010

47233BRACKET, RESERVOIR

main47233-58020iATH10200307

47234BTUBE, RESERVOIR, NO.1

main47234-58020iATH10200307

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-58020iATH10200307

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iATH10200307

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iATH10200307

47273BRACKET, BRAKE STROKE SIMULATOR

main47273-58010iATH10200307

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iATH10200307

47276BRACKET, BRAKE MASTER CYLINDER

main47276-58010iATH10200307

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iATH10200307

47312GTUBE, BRAKE STROKE SIMULATOR

main47312-58040iATH10200307

9014940006

main90149-40006

9017906019

main90179-06019

9017906159

main90179-06159

9017908179

main90179-08179

9017908204

main90179-08204

9161660616

main91616-60616

91621J0612

main91621-J0612

9412041000

main94120-41000

9613341500

main96133-41500

27 parts on this diagram · 1 diagram in section
