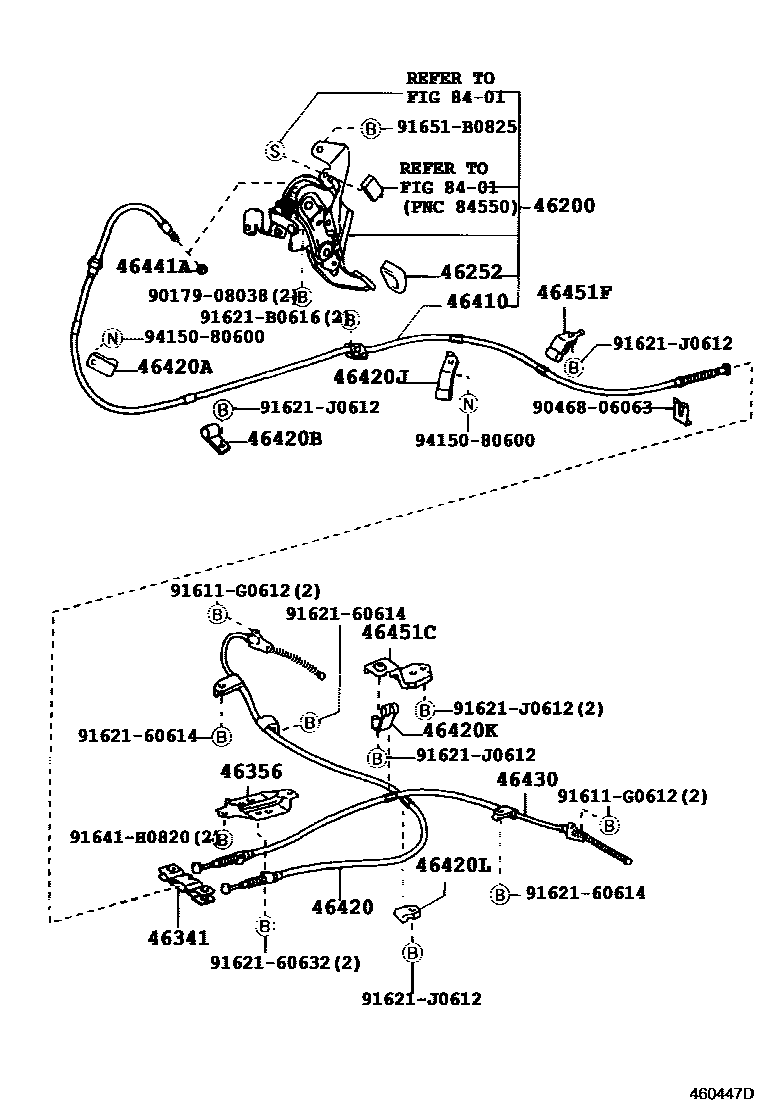

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-58020iATH10200307-200802

sub46210-58010

sub46410-58010

sub46441-12010

sub90468-08001

main46210-58010iATH10200802-200804

46252PAD, PARKING PEDAL

main46252-52010iATH10200307

46341EQUALIZER, PARKING BRAKE

main46341-12020iATH10200307

46356BRACKET, EQUALIZER SUPPORT

main46356-28061iATH10200307

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-58010iATH10200307

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-58010iATH10200307-200804

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-58010iATH10200307

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-58020iATH10200307

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-58030iATH10200307

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01B71iATH10200307

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main90949-01A77iATH10200307

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-58010iATH10200307-200804

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06058iATH10200307

sub90179-06299

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-28100iATH10200307

46451FBRACKET, CABLE SUPPORT

main46451-28130iATH10200307

8401

9017908038

main90179-08038

9046806063

main90468-06063

91611G0612

main91611-G0612

9162160614

main91621-60614

9162160632

main91621-60632

91621B0616

main91621-B0616

91621J0612

main91621-J0612

91641H0820

main91641-H0820

91651B0825

main91651-B0825

9415080600

main94150-80600

26 parts on this diagram · 2 diagrams in section
