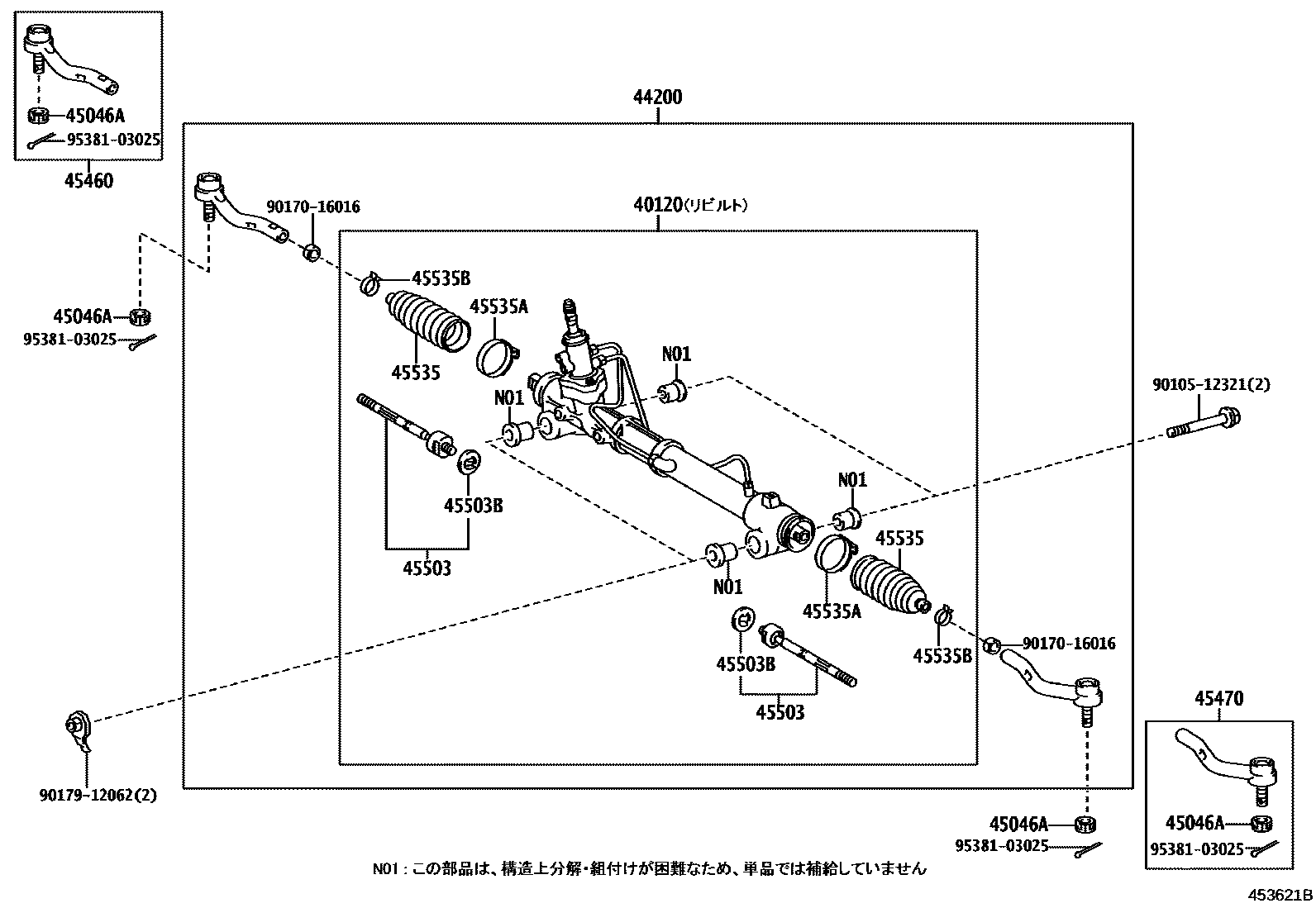

FRONT STEERING GEAR & LINK

0001 1 0002 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-58050iATH10200307-200502

sub40120-58051

main40120-58051iATH10200502-200804

sub40120-58052

44200LINK ASSY, POWER STEERING

main44200-58050iATH10200307-200501

sub44200-58051

main44200-58051iATH10200502-200708

sub44200-58052

main44200-58052iATH10200709-200804

sub44250-58051

sub45460-59115

sub45470-59135

sub90170-16016

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iATH10200307

45460ROD ASSY, TIE, RH

main45460-59055iATH10200307-200502

sub45460-59115

main45460-59115iATH10200502

45470ROD ASSY, TIE, LH

main45470-59055iATH10200307-200502

sub45470-59135

main45470-59135iATH10200502

45503END SUB-ASSY, STEERING RACK

main45503-59075iATH10200307

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007iATH10200307

45535BOOT, STEERING RACK, NO.1

main45535-28030iATH10200307

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-55016iATH10200307

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19018iATH10200307

sub90467-19021

9010512321

main90105-12321

9017016016

main90170-16016

9017912062

main90179-12062

9538103025

main95381-03025

14 parts on this diagram · 2 diagrams in section
