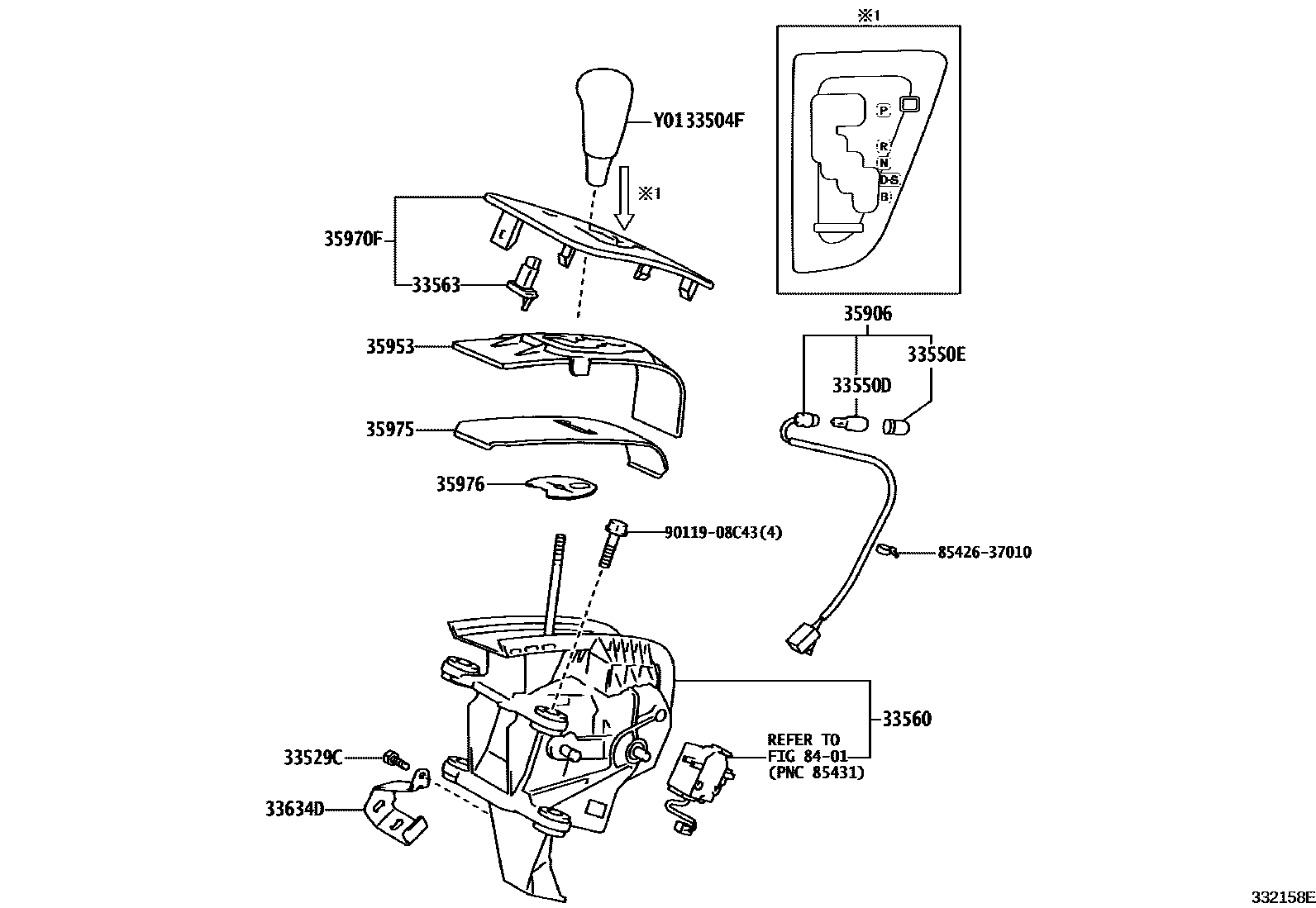

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22170-E0iATH10200307-200504

ORCHID BROWN,TRIM0#

sub33504-22170

main33504-22170-E2iATH10200504-200804

ORCHID BROWN,TRIM02

sub33504-22170

main33504-58020-E0iATH10200307-200504

main33504-58020-E1iATH10200504-200804

33529CBOLT, SHIFT LEVER

main33529-52010iATH10200307

33550DBULB, POSITION INDICATOR LAMP

main90981-11040iATH10200307

33550ECAP, POSITION INDICATOR LAMP

main35956-58010iATH10200307-200804

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-58020iATH10200307

33563BUTTON, SHIFT LOCK RELEASE

main33563-58010iATH10200307

33634DBRACKET, SHIFT LEVER HARNESS CONNECTOR

main33634-58010iATH10200307

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-58010iATH10200307

35953GUIDE, POSITION INDICATOR LIGHT

main35953-58010iATH10200307

35970FHOUSING ASSY, POSITION INDICATOR

main35970-58020iATH10200307-200804

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-58010iATH10200307

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-58010iATH10200307

8401

8542637010CLAMP, OVER DRIVE SOLENOID

main85426-37010

9011908C43

main90119-08C43

15 parts on this diagram · 2 diagrams in section
