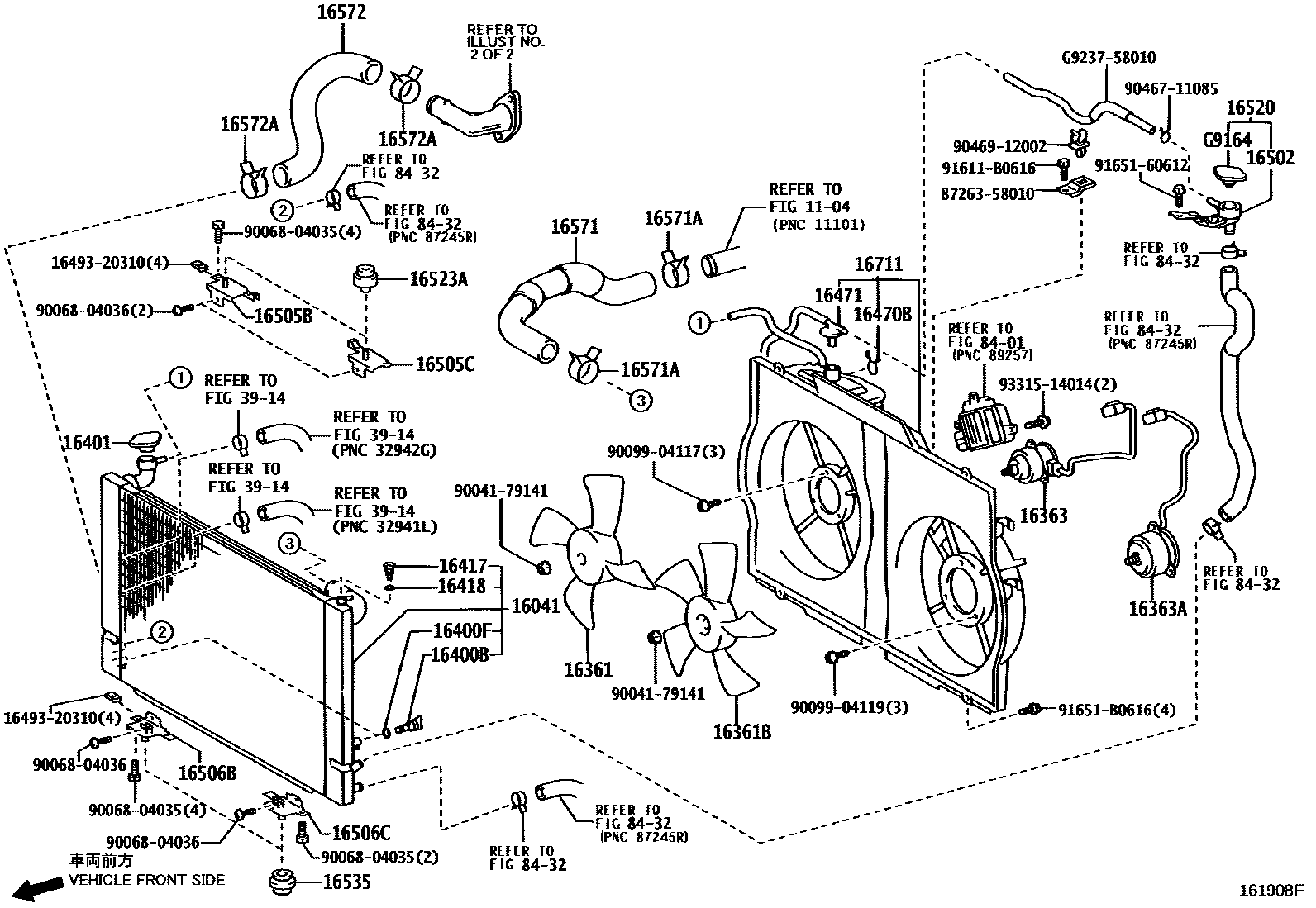

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1104

16041RADIATOR ASSY, NO.2

main16041-28440i2AZFXE..ATH10¥55,400200307-200405

sub16041-28441¥55,400

main16041-28441i2AZFXE..ATH10¥55,400200405-200412

sub16041-28442¥55,400

main16041-28442i2AZFXE..ATH10¥55,400200501-200504

main16041-28620i2AZFXE..ATH10¥55,400200504-200804

16361FAN

main16361-28090i2AZFXE..ATH10¥3,620200307-200503

16361BFAN, NO.2

main16361-28140i2AZFXE..ATH10¥4,480200307-200503

16363MOTOR, COOLING FAN

main16363-28180i2AZFXE..ATH10¥25,200200307-200503

16363AMOTOR, COOLING FAN, NO.2

main16363-28190i2AZFXE..ATH10¥25,200200307-200503

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i2AZFXE..ATH10¥380200504

main90910-09054i2AZFXE..ATH10¥500200307-200504

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2AZFXE..ATH10¥210200504

main96711-19007i2AZFXE..ATH10¥180200307-200504

16401CAP SUB-ASSY, RADIATOR

main16401-72090i2AZFXE..ATH10¥1,170200307-200503

sub16401-20353¥900

16417COCK

main16417-20290i2AZFXE..ATH10¥590200307-200504

main16417-28530i2AZFXE..ATH10¥500200504

16418PACKING

main16418-20290i2AZFXE..ATH10¥350200307-200503

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2AZFXE..ATH10¥100200307

16471CAP SUB-ASSY, RESERVE TANK

main16405-28060i2AZFXE..ATH10200307

16502FILLER SUB-ASSY, WATER

main16502-28010i2AZFXE..ATH10¥1,600200307-200804

16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH

main16505-28010i2AZFXE..ATH10¥1,030200307-200504

main16506-28030i2AZFXE..ATH10¥2,210200504

16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH

main16505-28020i2AZFXE..ATH10¥1,030200307-200504

main16505-28030i2AZFXE..ATH10¥2,210200504

16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH

main16506-28010i2AZFXE..ATH10¥1,190200307-200504

main16506-28040i2AZFXE..ATH10¥4,460200504

16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH

main16505-28040i2AZFXE..ATH10¥4,460200504

main16506-28020i2AZFXE..ATH10¥1,190200307-200504

16520FILLER ASSY, WATER

main16520-28010i2AZFXE..ATH10¥2,630200307-200804

16523ACUSHION, RADIATOR SUPPORT

main16523-28010i2AZFXE..ATH10¥1,620200307

16535SUPPORT, RADIATOR, LOWER

main16535-64120i2AZFXE..ATH10¥2,190200307

16571HOSE, RADIATOR, INLET

main16571-28200i2AZFXE..ATH10¥1,970200307-200504

main16571-28201i2AZFXE..ATH10¥2,160200504

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37008i2AZFXE..ATH10¥390200307

sub90467-37005¥410

16572HOSE, RADIATOR, OUTLET

main16572-28190i2AZFXE..ATH10¥1,840200307

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37008i2AZFXE..ATH10¥390200307

sub90467-37005¥410

16711SHROUD, FAN

main16711-28280i2AZFXE..ATH10¥10,700200307-200504

main16711-28370i2AZFXE..ATH10¥10,700200504

3914

8401

8432

G9164CAP, INVERTER RADIATOR

mainG916428010iATH10200307-200804

1649320310

main16493-20310¥170

8726358010BRACKET, HEATER WATER PIPE, NO.1

main87263-58010¥360

9004179141

main90041-79141

9006804035

main90068-04035¥170

9006804036

main90068-04036¥170

9009904117

main90099-04117

9009904119

main90099-04119

9046711085

main90467-11085¥100

9046912002

main90469-12002¥220

91611B0616

main91611-B0616¥110

9165160612

main91651-60612¥90

91651B0616

main91651-B0616¥80

9331514014

main93315-14014¥70

G923758010HOSE, INVERTER DRAIN

mainG9237-58010¥930

44 parts on this diagram · 4 diagrams in section
