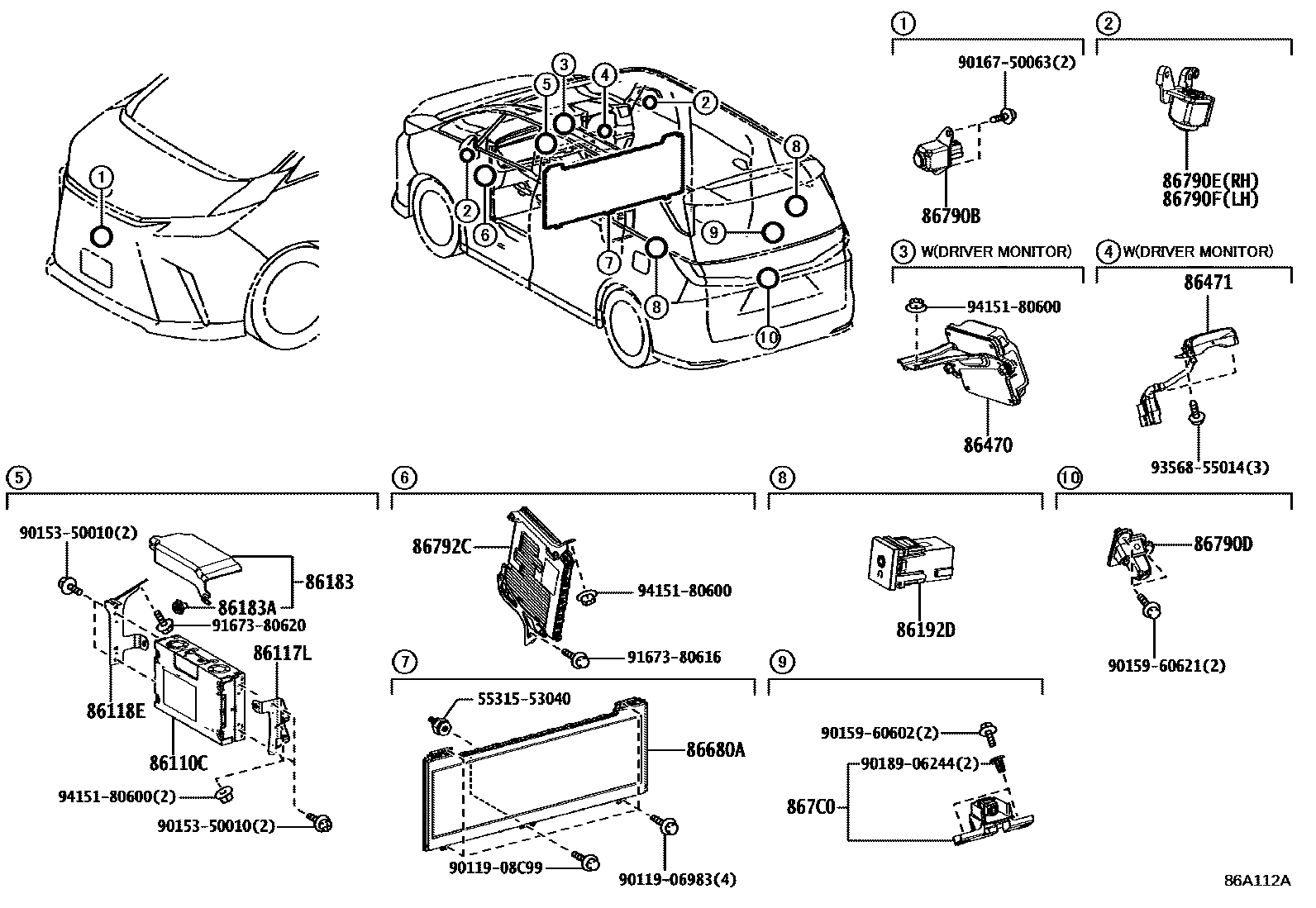

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86110CCONTROLLER ASSY, MULTI-DISPLAY

main862B0-V2011iAAWH1#,TAWH15..L202311

main862B0-V2021iAAWH1#,TAWH15..EXEC202311

86117LBRACKET, MULTI-DISPLAY CONTROLLER, NO.1

main86117-V2010iAAWH1#,TAWH15202311

86118EBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86118-V2010iAAWH1#,TAWH15202311

86183COVER, AUDIO RACK

main86183-V2010iAAWH1#,TAWH15202311

86183ACLIP(FOR AUDIO RACK COVER)

main63395-12150iAAWH1#,TAWH15202311

86192DTERMINAL, HEADPHONE, LH

main86192-60120iAAWH1#,TAWH15..EXEC202311

86470COMPUTER ASSY, DRIVER MONITOR

main86470-V2010

86471CAMERA, DRIVER MONITOR

main86471-48010

86680ADISPLAY ASSY, TELEVISION

main86680-V2020iAAWH1#,TAWH15..EXEC202311

main86680-V2060iAAWH1#,TAWH15..L202311

86790BCAMERA ASSY, TELEVISION, FR

main86790-V2111iAAWH1#,TAWH15202311

86790DCAMERA ASSY, TELEVISION, RR

main86790-V2101iAAWH1#,TAWH15202311

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-78081iAAWH1#,TAWH15202311

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-78071iAAWH1#,TAWH15202311

86792CCOMPUTER, PARKING ASSIST

main86792-V2061iAAWH1#,TAWH15202311

867C0CAMERA ASSY, INNER MIRROR

main867C0-V2040iAAWH1#,TAWH15202311

5531553040SUPPORT, INSTRUMENT PANEL

main55315-53040

9011906983

main90119-06983

9011908C99

main90119-08C99

9015350010

main90153-50010

9015960602

main90159-60602

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

9167380616

main91673-80616

9167380620

main91673-80620

9356855014

main93568-55014

9415180600

main94151-80600

27 parts on this diagram · 2 diagrams in section
