SPEAKER

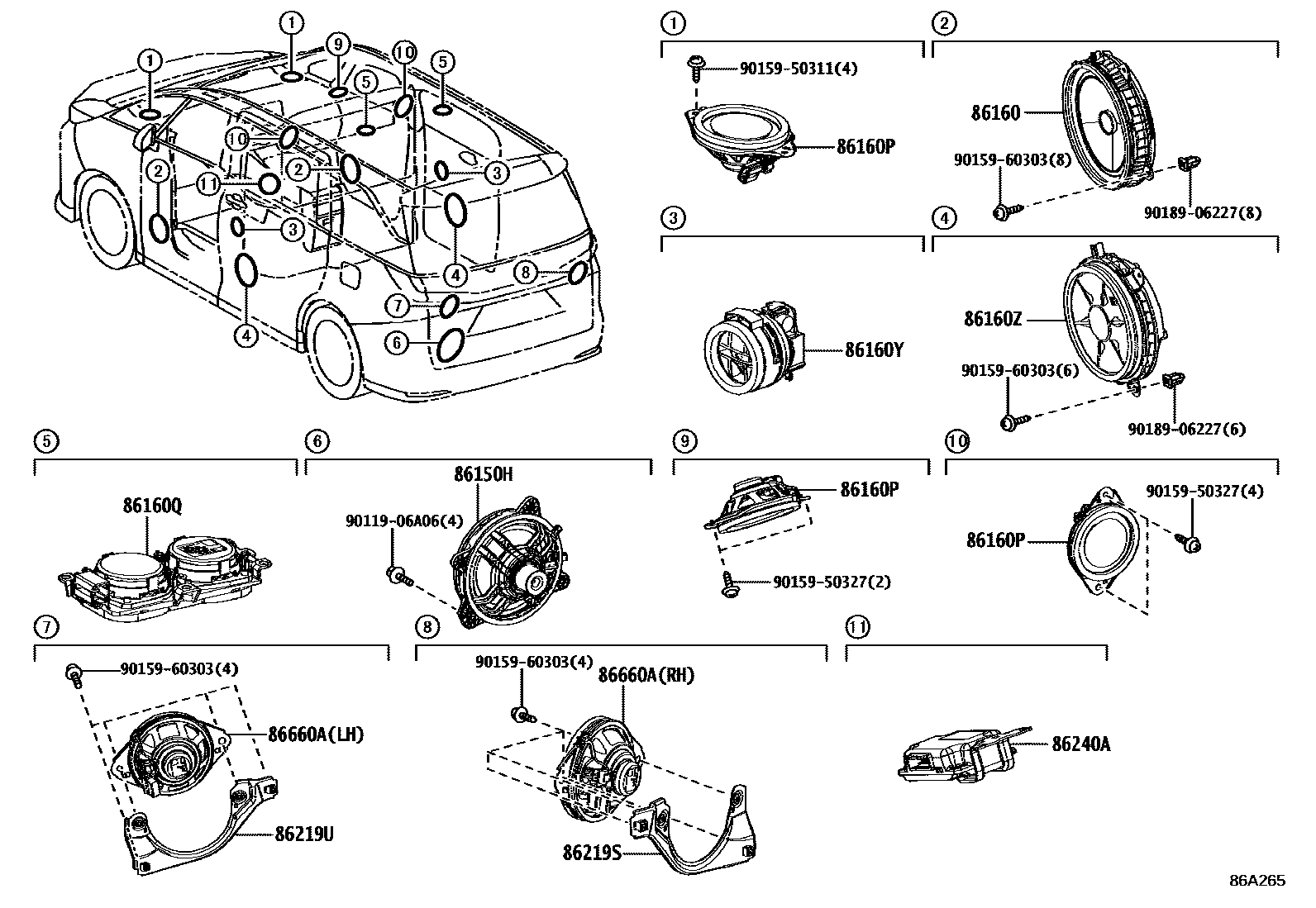

Parts diagram
86150HSPEAKER ASSY, W/BRACKET
main86150-V2040i¥32,800202311
86160SPEAKER ASSY, FRONT NO.1
main86160-78100i¥23,500202311
86160PSPEAKER ASSY, FRONT NO.2
main86160-60720i¥14,200202311
86160QSPEAKER ASSY, ROOF
main86150-0W600i¥13,900202311
main86150-60390i¥13,800202311
86160YSPEAKER ASSY, REAR NO.2
main86160-0WS10i¥10,300202311
86160ZSPEAKER ASSY, REAR NO.3
main86160-0WY70i¥24,000202311
86219SBRACKET, STEREO SPEAKER, RH
main86219-V2030i¥1,030202311
86219UBRACKET, STEREO SPEAKER, LH
main86219-V2040i¥1,030202311
86240AEQUALIZER ASSY,STEREO COMPONENT
main86240-V2020i¥28,600202311
86660ASPEAKER ASSY
main86160-60720i¥14,200202311
9011906A06
main90119-06A06¥60
9015950311
main90159-50311¥70
9015950327
main90159-50327¥70
9015960303
main90159-60303¥70
9018906227
main90189-06227¥70

15 parts on this diagram · 2 diagrams in section
