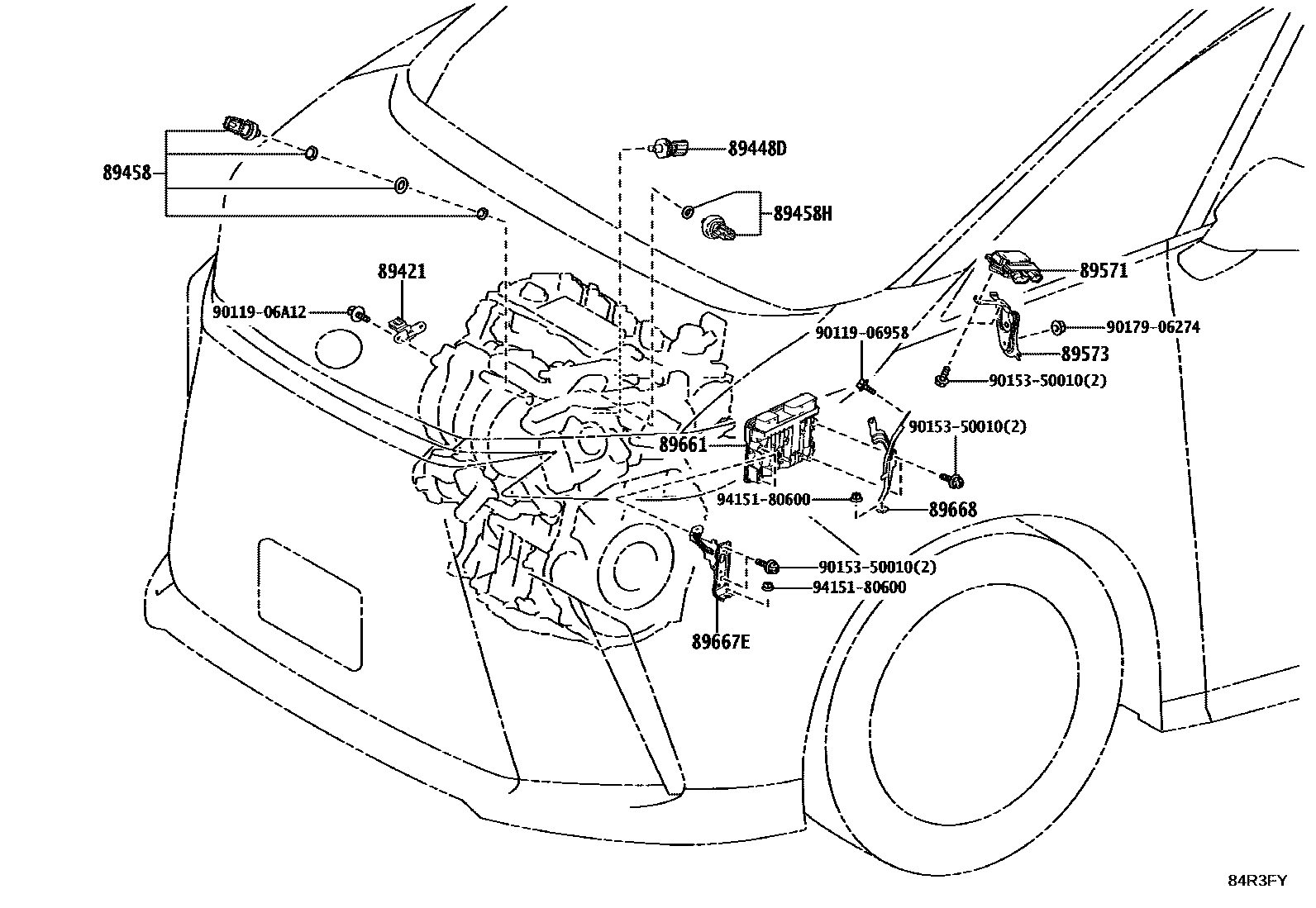

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAAWH1#¥5,900202311

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAAWH1#¥5,700202311

89458SENSOR, FUEL PRESSURE

main89458-33030iAAWH1#¥4,320202311

main89458-78030iTAWH15¥4,320202311

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iAAWH1#,TAWH15¥4,320202311

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAAWH1#¥9,900202311

main89571-58020iTAWH15¥10,300202311

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-58010iAAWH1#,TAWH15¥660202311

89661COMPUTER, ENGINE CONTROL

main89661-58C10iAAWH1#¥71,000202311

main89661-58C30iTAWH15¥71,000202311

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42080iAAWH1#¥700202311-202406

main89667-42081iAAWH1#¥650202407

main89667-58120iTAWH15¥390202311

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48170iAAWH1#,TAWH15¥1,030202311

9011906958

main90119-06958¥60

9011906A12

main90119-06A12¥60

9015350010

main90153-50010¥70

9017906274

main90179-06274¥70

9415180600

main94151-80600¥60

14 parts on this diagram · 2 diagrams in section
