WIRING & CLAMP

0001 1�������� 1/2 0002 1�������� 2/2 0003 1�������� 1/2 0004 1�������� 2/2 0005 1����� 1/3 0006 1����� 2/3 0007 1����� 3/3 0008 1����� 1/3 0009 1����� 2/3 0010 1����� 3/3 0011 1������������ 0012 1��� 0013 1��� & ��� 1/2 0014 1��� & ��� 2/2 0015 1��� & ��� 1/2 0016 1��� & ��� 2/2 0017 1��� & ��� 1/2 0018 1��� & ��� 2/2 0019 1���� ����� 0020 1���� ����� 0021 1���� ����� 0022 1��� 0023 1���������� 0024 1����� & ������ 1/2 0025 1����� & ������ 2/2 0026 1���� 1/2 0027 1���� 2/2

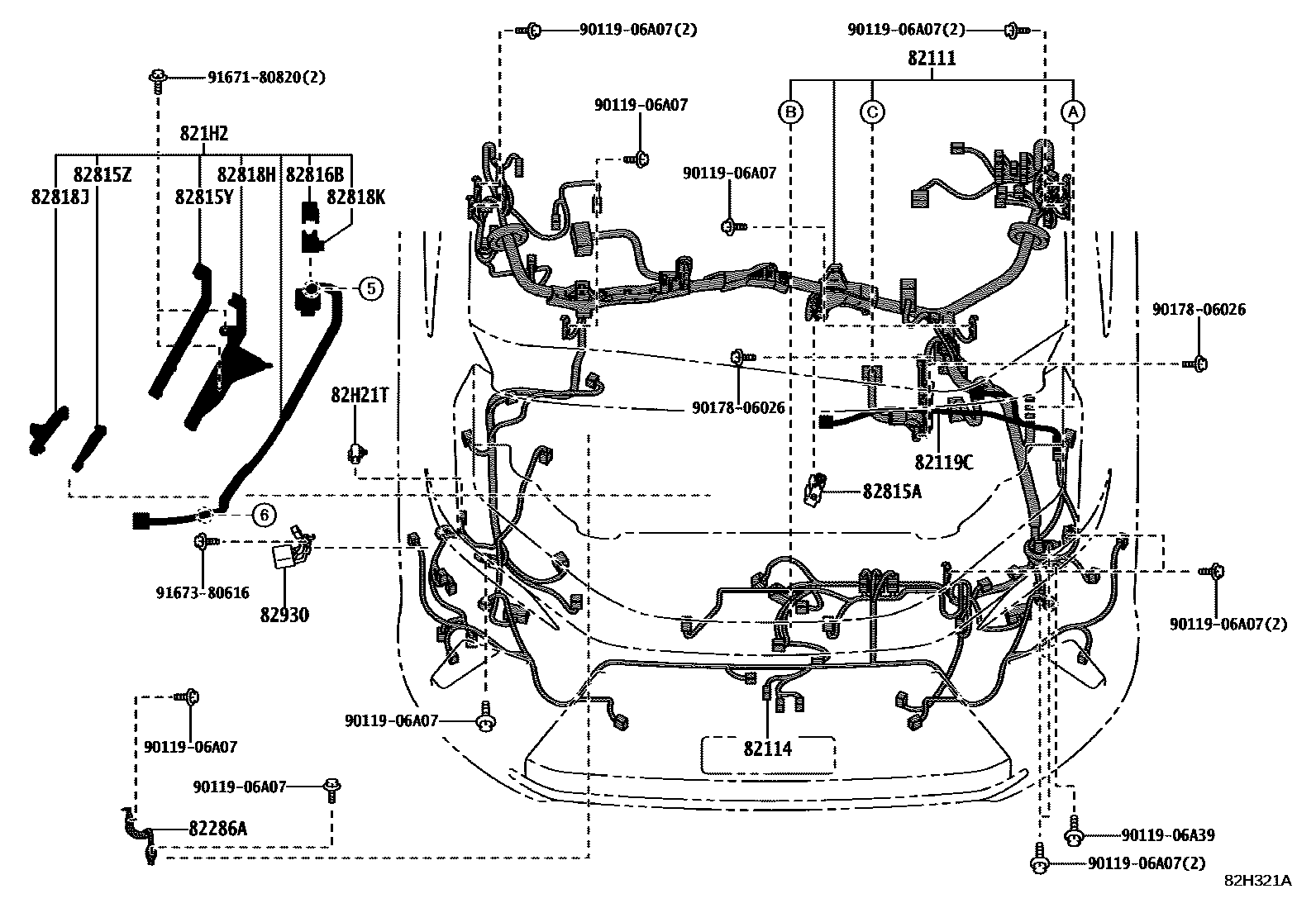

82111WIRE, ENGINE ROOM MAIN

main82111-V2590iAAWH1#202311-202508

main82111-V2610iTAWH15202311-202508

82114WIRE, ENGINE ROOM, NO.4

main82114-V2060iAAWH1#,TAWH15202311

82119CWIRE, ENGINE ROOM, NO.5

main82119-V2020iAAWH1#,TAWH15202311

821H2WIRE, HV AIR CONDITIONER

main821H2-48040iTAWH15202311

main821H2-78010iAAWH1#202311

82286AWIRE, EARTH, NO.2

main82286-48070iAAWH1#,TAWH15202311

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-V2890iAAWH1#202311-202312

main82815-V2E50iAAWH1#202312

82815YCOVER, WIRING HARNESS PROTECTOR, NO.4

main82815-0E530iAAWH1#202311

82815ZCOVER, WIRING HARNESS PROTECTOR, NO.18

main82815-33K70iAAWH1#202311

82816BCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-42890iAAWH1#202311

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-42P60iAAWH1#202311

82818HPROTECTOR, WIRING HARNESS, NO.9

main82817-0EC10iAAWH1#202311

82818JPROTECTOR, WIRING HARNESS, NO.10

main82817-33Y70iAAWH1#202311

82818KPROTECTOR, WIRING HARNESS, NO.11

main82817-42K60iAAWH1#202311

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-58010iAAWH1#,TAWH15202311

82H21TCOVER, CONNECTOR

main82821-48460iAAWH1#,TAWH15202311

9011906A07

main90119-06A07

9011906A39

main90119-06A39

9017806026

main90178-06026

9167180820

main91671-80820

9167380616

main91673-80616

20 parts on this diagram · 27 diagrams in section
