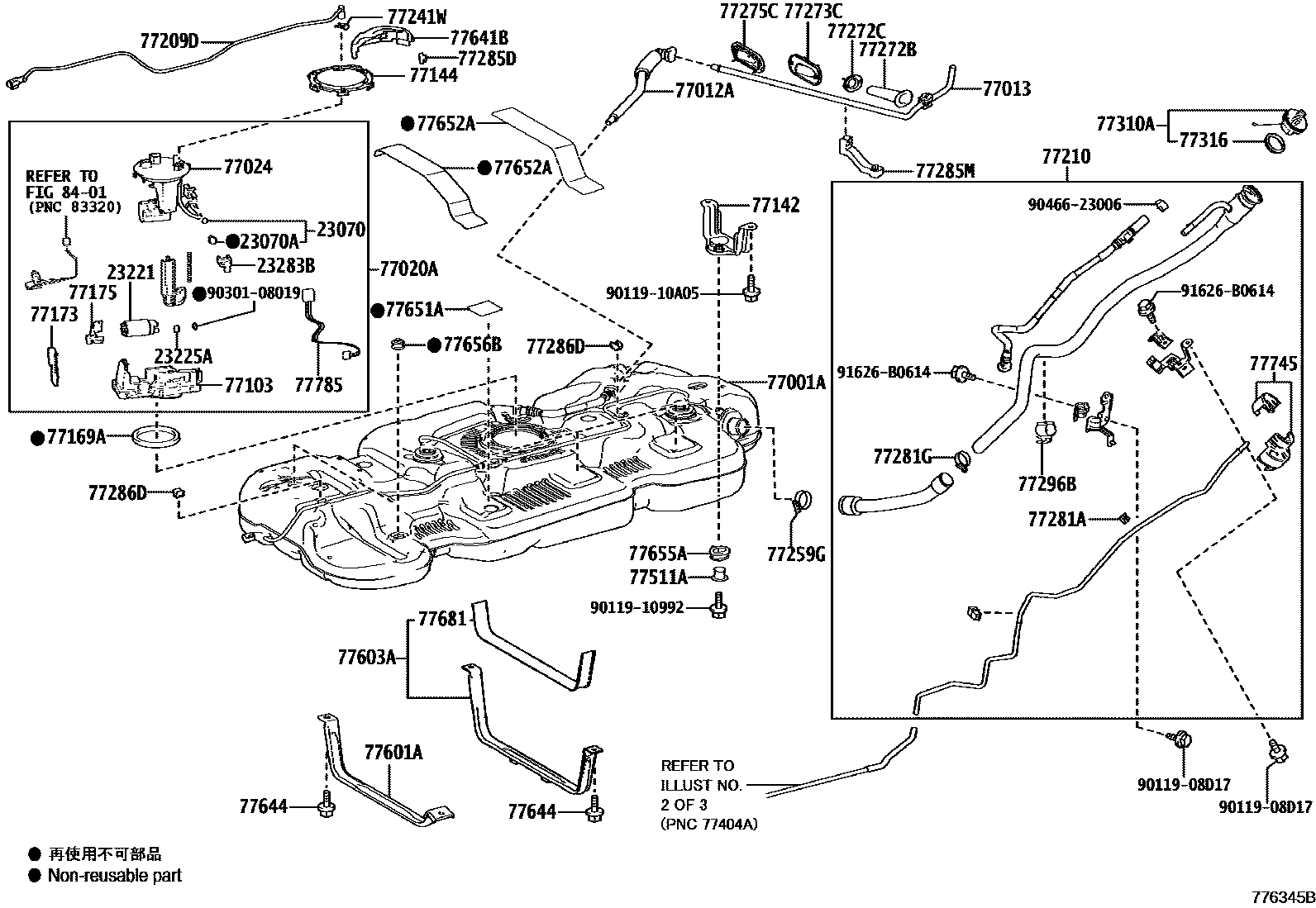

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25,T24..AAWH1#,TAWH15202311

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25,T24..AAWH1#,TAWH15202311

23221PUMP, FUEL

main23221-25030iA25..AAWH1#202311

main23221-25080iT24..TAWH15202311

23225ASPACER, FUEL PUMP

main23225-31020iA25,T24..AAWH1#,TAWH15202311

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iA25,T24..AAWH1#,TAWH15202311

77001ATANK SUB-ASSY, FUEL

main77001-V2080iAAWH1#,TAWH15202311

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-V2050iAAWH1#,TAWH15202311

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-V2010iAAWH1#,TAWH15202311

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-V2020iAAWH1#202311

main77020-V2070iTAWH15202311

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-V2020iAAWH1#202311

main77024-V2050iTAWH15202311

77103SUB-TANK SUB-ASSY, FUEL

main77103-42120iAAWH1#202311

main77103-48100iTAWH15202311

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-V2011iAAWH1#,TAWH15202311

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAAWH1#,TAWH15202311

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iAAWH1#,TAWH15202311

77173BRACKET, FUEL GAGE

main77173-12020iAAWH1#,TAWH15202311

77175SUPPORT, FUEL SUCTION, NO.2

main77175-12030iAAWH1#,TAWH15202311

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-V2040iAAWH1#,TAWH15202311

77210PIPE ASSY, FUEL TANK FILLER

main77210-V2050iAAWH1#,TAWH15202311

77241WCLIP, TUBE JOINT

main77241-60550iAAWH1#,TAWH15202311

77259GCLIP, FUEL HOSE

main90460-50008iAAWH1#,TAWH15202311

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-58010iAAWH1#,TAWH15202311

77272CSUPPORT, BREATHER TUBE, NO.3

main77273-58010iAAWH1#,TAWH15202311

77273CSUPPORT, BREATHER TUBE, NO.2

main77272-V2010iAAWH1#,TAWH15202311

77275CSUPPORT, BREATHER TUBE, NO.4

main77273-V2010iAAWH1#,TAWH15202311

77281ACLAMP, FUEL FILLER PIPE

main77281-30110iAAWH1#,TAWH15202311

77281GCLAMP, FUEL HOSE

main90460-40007iAAWH1#,TAWH15202311

77285DCLAMP, FUEL TUBE, NO.1

main77285-30350iAAWH1#,TAWH15202311

77285MCLAMP, FUEL TUBE, NO.1

main77285-V2020iAAWH1#,TAWH15202311

77286DCLAMP, FUEL TUBE, NO.2

main77286-30180×2iAAWH1#,TAWH15202311

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-58010iAAWH1#,TAWH15202311

77310ACAP ASSY, FUEL TANK

main77300-48020iAAWH1#,TAWH15202311

77316GASKET, FUEL TANK CAP

main77316-75020iAAWH1#,TAWH15202311

77511ABRACKET, FUEL TANK

main77511-48030iAAWH1#,TAWH15202311

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-V2040iAAWH1#,TAWH15202311

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-V2040iAAWH1#,TAWH15202311

77641BCOVER, FUEL TANK

main77641-V2030iAAWH1#,TAWH15202311

77644BOLT, FUEL TANK

main90119-10A05×4iAAWH1#,TAWH15202311

77651ACUSHION, FUEL TANK, NO.1

main77651-12070×3iAAWH1#,TAWH15202311

77652ACUSHION, FUEL TANK, NO.2

main77651-35070×2iAAWH1#,TAWH15202311

77655ACUSHION, FUEL TANK, NO.5

main77655-30080iAAWH1#,TAWH15202311

77656BCUSHION, FUEL TANK, NO.6

main77656-33010×2iAAWH1#,TAWH15202311

77681SEAT, FUEL TANK BAND, RH

main77681-47020iAAWH1#,TAWH15202311

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-12050iAAWH1#,TAWH15202311

77785HARNESS, FUEL PUMP

main77785-42070iAAWH1#,TAWH15202311

8401

9011908D17

main90119-08D17

9011910992

main90119-10992

9011910A05

main90119-10A05

9030108019

main90301-08019

9046623006

main90466-23006

91626B0614

main91626-B0614

51 parts on this diagram · 5 diagrams in section
