FRONT SEAT & SEAT TRACK

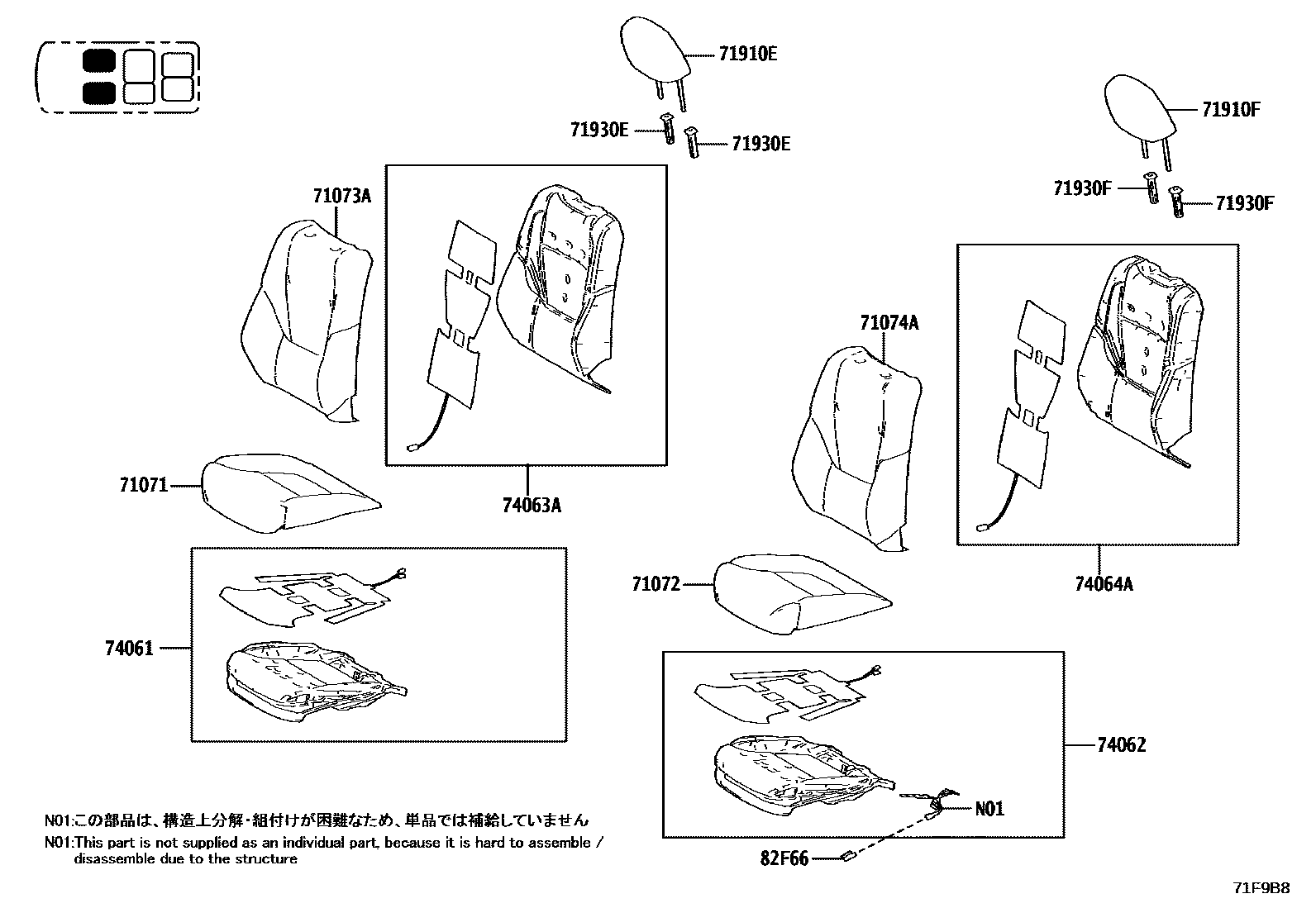

Parts diagram

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-V2090-A4i202311

FROMAGE,TRIM0#

main71071-V2090-C4i202311

BLACK,TRIM2#

71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH

main71072-V2080-A4i202311

FROMAGE,TRIM0#

main71072-V2080-C4i202311

BLACK,TRIM2#

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-V2090-C1i202311

BLACK,TRIM2#

main71073-V2100-C1i202311

BLACK,TRIM2#

main71073-V2120-A1i202311

main71073-V2130-A1i202311

71074ACOVER SUB-ASSY, FRONT SEATBACK, LH

main71074-V2110-C1i202311

BLACK,TRIM2#

main71074-V2130-C1i202311

BLACK,TRIM2#

main71074-V2140-A1i202311

main71074-V2160-A1i202311

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-V2080-A1i202311

FROMAGE,TRIM0#

main71910-V2080-C1i202311

BLACK,TRIM2#

main71910-V2090-A1i202311

FROMAGE,TRIM0#

main71910-V2090-C1i202311

BLACK,TRIM2#

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-V2080-A1i202311

FROMAGE,TRIM0#

main71910-V2080-C1i202311

BLACK,TRIM2#

main71910-V2100-A1i202311

FROMAGE,TRIM0#

main71910-V2100-C1i202311

BLACK,TRIM2#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-28050-A0i202311

main71930-28050-C0i202311

main71931-28060-A0i202311

main71931-28060-C0i202311

71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH

main71930-28050-A0i202311

main71930-28050-C0i202311

main71930-62010-A1i202311

main71930-62010-C0i202311

main71930-62020-A1i202311

main71930-62020-C0i202311

main71931-28060-A0i202311

main71931-28060-C0i202311

74061BAG SUB-ASSY, SEAT CUSHION PAD, RH

main74061-V2130i202311

74062BAG SUB-ASSY, SEAT CUSHION PAD, LH

main74062-V2130i202311

main74062-V2140i202311

74063ABAG SUB-ASSY, SEATBACK PAD, RH

main74063-V2120i202311

main74063-V2200i202311

74064ABAG SUB-ASSY, SEATBACK PAD, LH

main74064-V2130i202311

main74064-V2210i202311

82F66HOLDER, CONNECTOR

main82666-47630i202311

13 parts on this diagram · 5 diagrams in section
