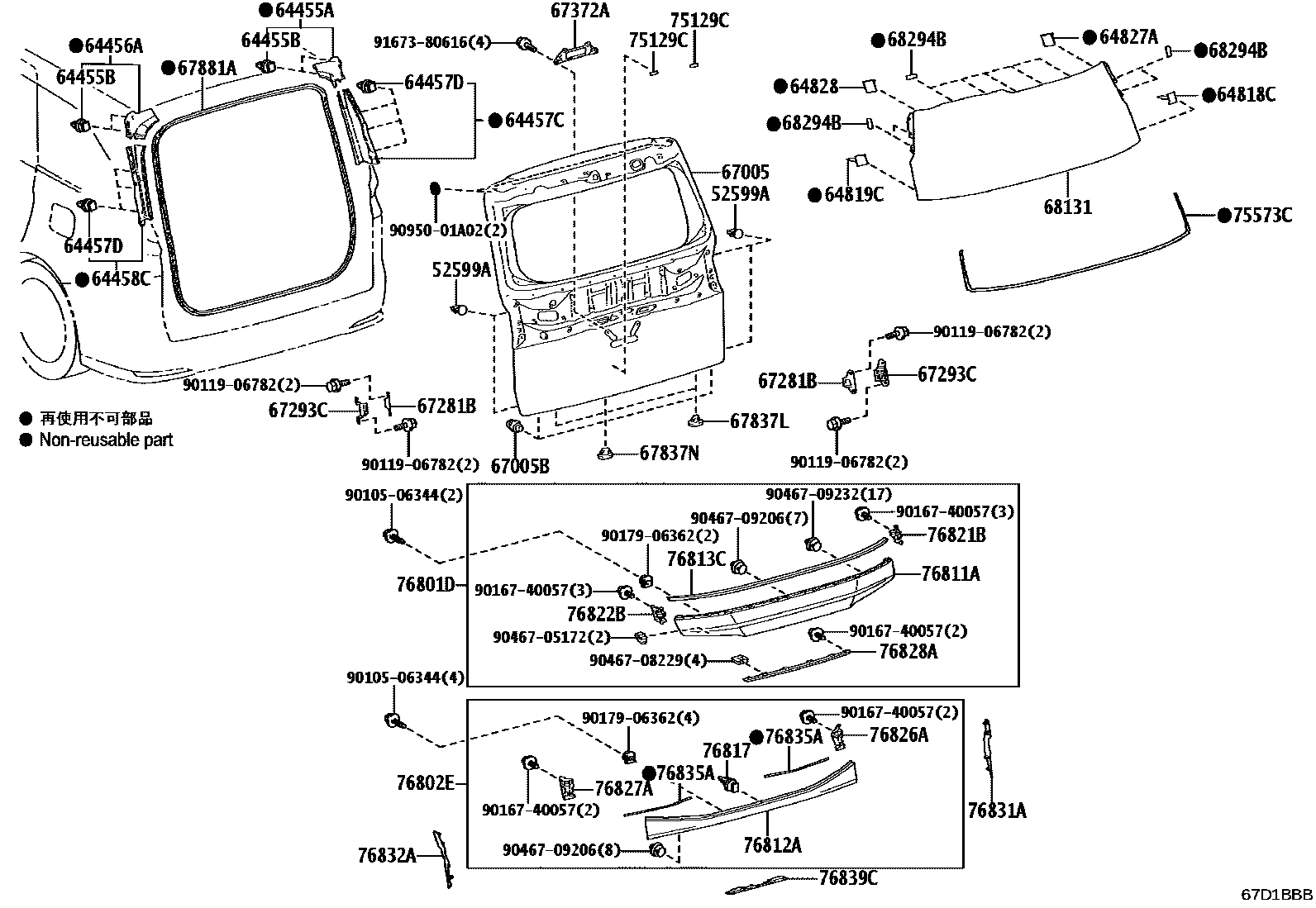

BACK DOOR PANEL & GLASS
52599ASTOPPER, REAR BUMPER, UPPER
64455ACUSHION, BACK DOOR SIDE, RH
64455BCLIP, BACK DOOR SIDE CUSHION
64456ACUSHION, BACK DOOR SIDE, LH
64457CCOVER, BACK DOOR STOPPER CUSHION, RH
64457DCLIP, BACK DOOR STOPPER CUSHION COVER
64458CCOVER, BACK DOOR STOPPER CUSHION, LH
64818CSPACER, BACK WINDOW GLASS, NO.1
64819CSPACER, BACK DOOR GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67293CCUSHION, BACK DOOR STOPPER
67372AWEIGHT, BACK DOOR
67837LSEAL, DOOR DUST PROOF
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
68294BDAM, BACK DOOR GLASS ADHESIVE
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
76801DGARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
76811AGARNISH, BACK DOOR, OUTSIDE
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76813CGARNISH, BACK DOOR, OUTSIDE NO.3
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76826ARETAINER, BACK DOOR GARNISH, NO.1
76827ARETAINER, BACK DOOR GARNISH, NO.2
76828ARETAINER, BACK DOOR GARNISH, NO.3
76831ACOVER, BACK DOOR FINISH PANEL, RH
76832ACOVER, BACK DOOR FINISH PANEL, LH
76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1
76839CCOVER, BACK DOOR GARNISH
9010506344
main90105-06344
9011906782
main90119-06782
9016740057
main90167-40057
9017906362
main90179-06362
9046705172
main90467-05172
9046708229
main90467-08229
9046709206
main90467-09206
9046709232
main90467-09232
9095001A02
main90950-01A02
9167380616
main91673-80616
48 parts on this diagram · 2 diagrams in section
