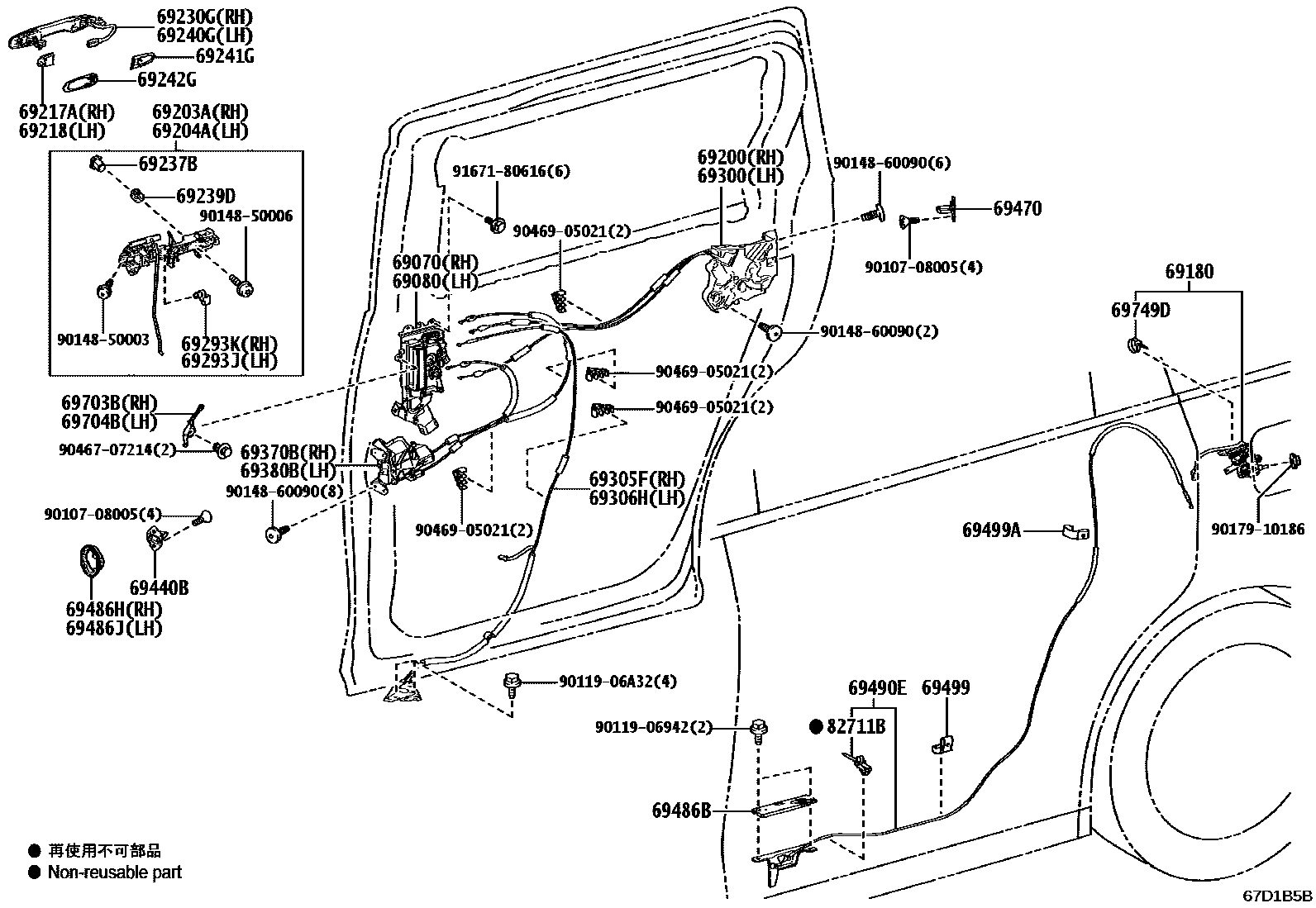

REAR DOOR LOCK & HANDLE
69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69200LOCK ASSY, POWER SLIDE DOOR, RH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69217ACOVER, SLIDE DOOR OUTSIDE HANDLE, RH
69218COVER, SLIDE DOOR OUTSIDE HANDLE, LH
69230GHANDLE ASSY, SLIDE DOOR OUTSIDE, RH
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240GHANDLE ASSY, SLIDE DOOR, OUTSIDE LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH
69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH
69300LOCK ASSY, POWER SLIDE DOOR, LH
69305FLOCK SUB-ASSY, SLIDE DOOR FULL OPEN, RH
69306HLOCK SUB-ASSY, SLIDE DOOR FULL OPEN, LH
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69486BCOVER, SLIDE DOOR HALF OPEN STOPPER
69486HCOVER, SLIDE DOOR FRONT LOCK STRIKER, RH
69486JCOVER, SLIDE DOOR FRONT LOCK STRIKER, LH
69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN
69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE
69499ACLIP, SLIDE DOOR HALF OPEN STOPPER CABLE, NO.2
69703BLINK SUB-ASSY, REAR DR LOCKING CONT W/CHILD LOCK LEVER, RH
69704BLINK SUB-ASSY, REAR DR LOCKING CONT W/CHILD LOCK LEVER, LH
69749DCLAMP, SLIDE DOOR LOCK LINK
82711BCLAMP, WIRING HARNESS
9010708005
main90107-08005
9011906942
main90119-06942
9011906A32
main90119-06A32
9014850003
main90148-50003
9014850006
main90148-50006
9014860090
main90148-60090
9017910186
main90179-10186
9046707214
main90467-07214
9046905021
main90469-05021
9167180616
main91671-80616
43 parts on this diagram · 1 diagram in section
