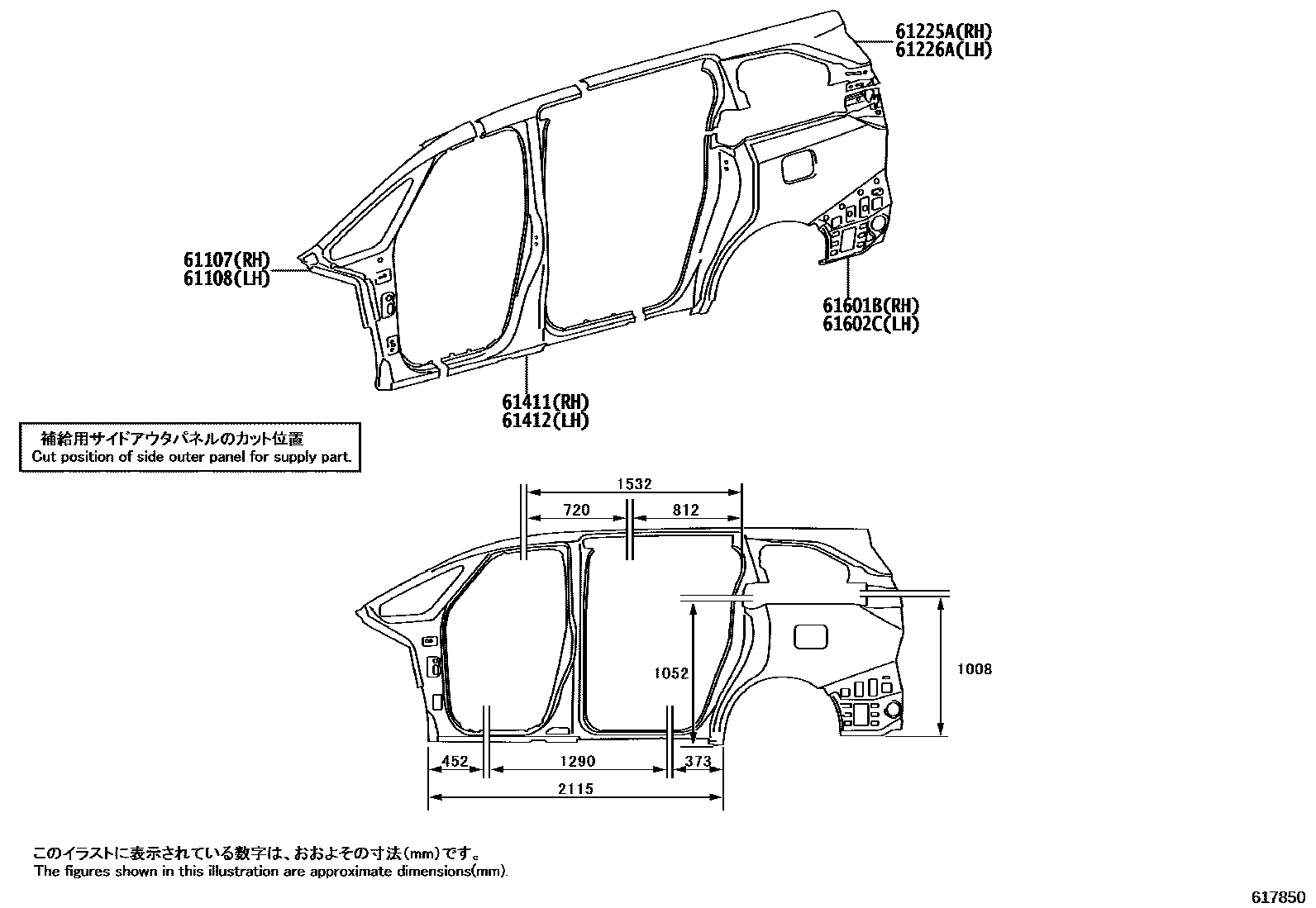

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61106-V2040iAAWH1#,TAWH15202311

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61107-V2040iAAWH1#,TAWH15202311

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-V2020iAAWH1#,TAWH15202311

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-V2020iAAWH1#,TAWH15202311

61411PANEL, ROCKER, OUTER RH

main61411-V2020iAAWH1#,TAWH15202311

61412PANEL, ROCKER, OUTER LH

main61412-V2020iAAWH1#,TAWH15202311

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-V2040iAAWH1#,TAWH15202311

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-V2040iAAWH1#,TAWH15202311

8 parts on this diagram · 3 diagrams in section
