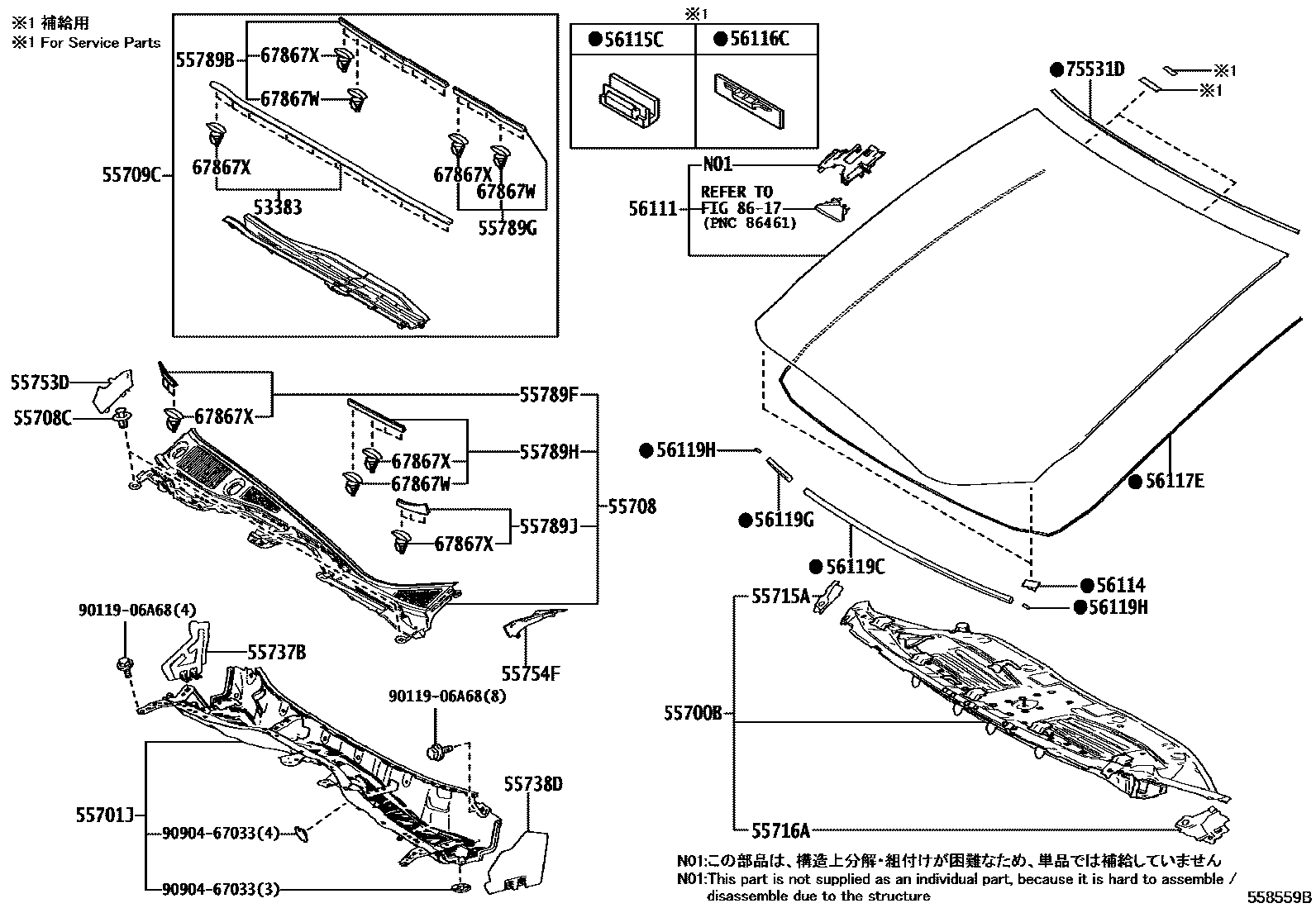

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55709CCOVER SUB-ASSY, COWL SIDE VENTILATOR, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55789FPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.1
55789GPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.3
55789HPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.4
55789JPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.5
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117EDAM, WINDOW GLASS ADHESIVE
56119CSEAL, WINDSHIELD GLASS
56119GSEAL, WINDSHIELD GLASS, NO.2
56119HSEAL, WINDSHIELD GLASS, NO.3
67867WRETAINER, COWL TOP VENTTINATOR LOUVER PROTECTOR, NO.1
67867XRETAINER, COWL TOP VENTTINATOR LOUVER PROTECTOR, NO.2
75531DMOULDING, WINDSHIELD, OUTSIDE UPPER
8617
9011906A68
9090467033
31 parts on this diagram · 1 diagram in section
