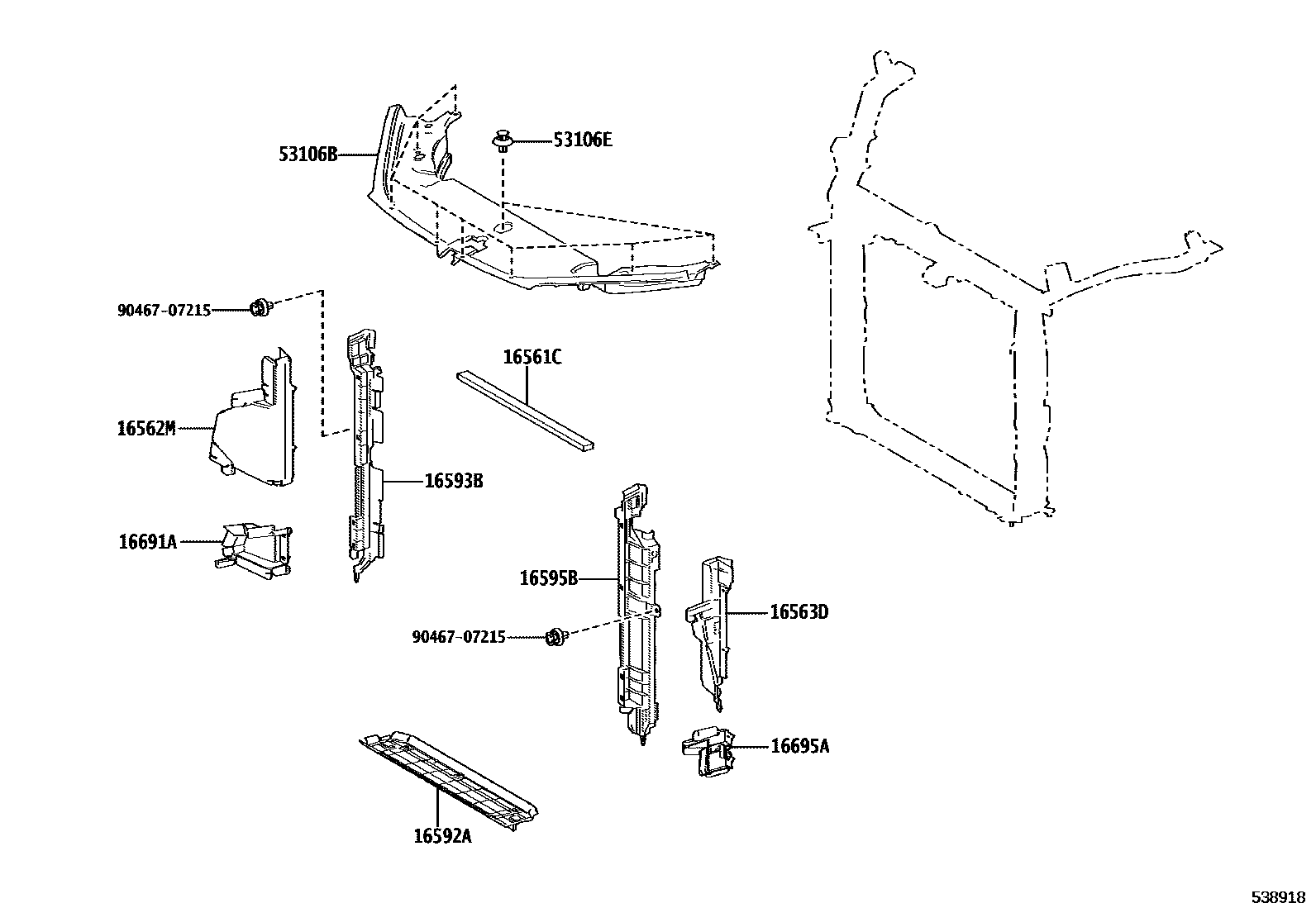

FRONT FENDER APRON & DASH PANEL

0001 1�������&��������������� 0002 1�������&��������������� 0003 1�����������&���������� 0004 1��������� 0005 1���������

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-V2010iA25,T24..AAWH1#,TAWH15202311

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-V2030iA25,T24..AAWH1#,TAWH15202311

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-V2030iA25,T24..AAWH1#,TAWH15202311

16592AGUIDE, RADIATOR AIR, NO.3

main16592-V2010iA25,T24..AAWH1#,TAWH15202311

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-V2010iA25..AAWH1#202311

main16593-V2020iT24..TAWH15202311

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-V2010iA25..AAWH1#202311

main16595-V2020iT24..TAWH15202311

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-V2030iA25,T24..AAWH1#,TAWH15202311

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-V2030iA25..AAWH1#202311

main16695-V2040iT24..TAWH15202311

53106BCOVER SUB-ASSY, RADIATOR

main53106-V2060iAAWH1#202311

main53106-V2070iTAWH15202311

53106ECLIP, RADIATOR COVER

main90467-07217iAAWH1#,TAWH15202311

9046707215

main90467-07215

11 parts on this diagram · 5 diagrams in section
