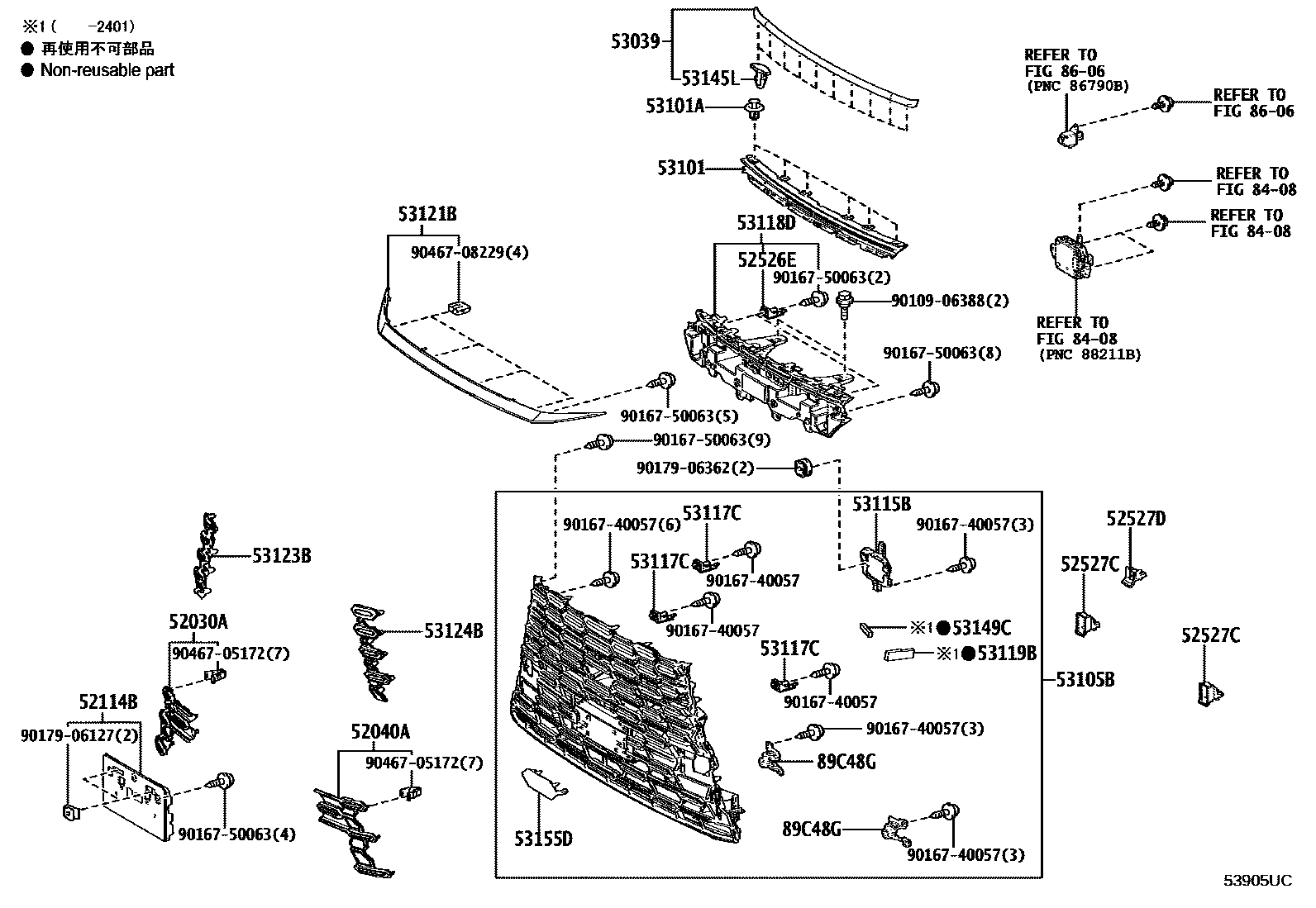

RADIATOR GRILLE
52030ACOVER ASSY, FRONT BUMPER HOLE, RH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
52040ACOVER ASSY, FRONT BUMPER HOLE, LH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING
52526ERETAINER, FRONT BUMPER, LOWER NO.1
52527CRETAINER, FRONT BUMPER, LOWER NO.2
52527DRETAINER, FRONT BUMPER, LOWER CENTER NO.2
53039SEAL, RADIATOR, UPPER
53101GRILLE SUB-ASSY, RADIATOR
53101ACLIP, RADIATOR GRILLE
53105BGARNISH SUB-ASSY, RADIATOR GRILLE
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
53115BBRACKET, RADIATOR GRILLE
53117CRETAINER, RADIATOR GRILLE, NO.1
53118DRETAINER, RADIATOR GRILLE, NO.2
53119BPROTECTOR, RADIATOR GRILLE
53121BMOULDING, RADIATOR GRILLE, UPPER
53123BMOULDING, RADIATOR GRILLE SIDE, RH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
53124BMOULDING, RADIATOR GRILLE SIDE, LH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
53145LCLIP, RADIATOR GRILLE
53149CPROTECTOR, RADIATOR GRILLE, NO.2
53155DSEAL, RADIATOR GRILLE, NO.1
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
8408
8606
89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER
9010906388
main90109-06388
9016740057
main90167-40057
9016750063
main90167-50063
9017906127
main90179-06127
9017906362
main90179-06362
9046705172
main90467-05172
9046708229
main90467-08229
30 parts on this diagram · 1 diagram in section
