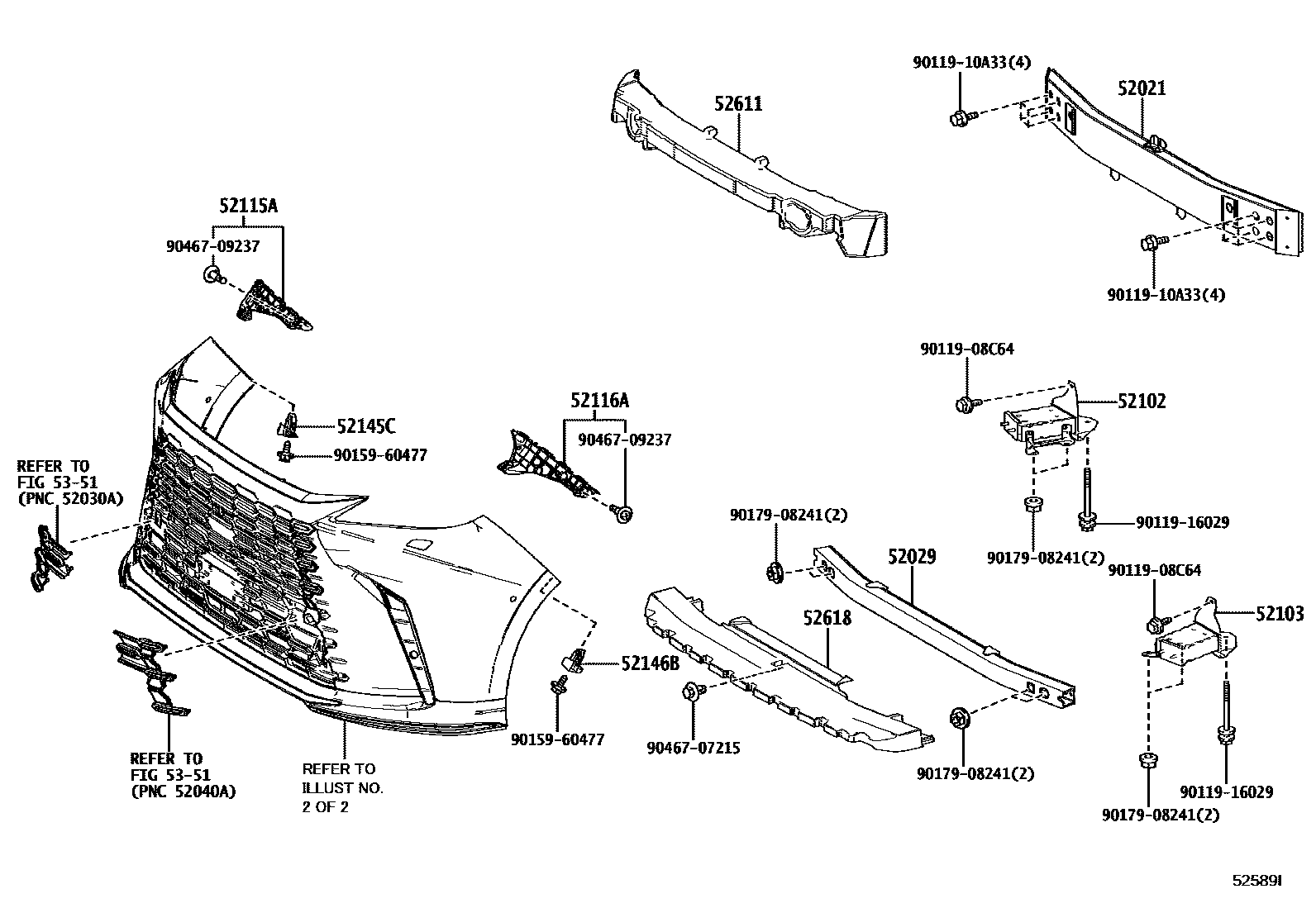

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-V2030iAAWH1#,TAWH15202311

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-V2010iAAWH1#,TAWH15202311

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52102-V2010iAAWH1#,TAWH15202311

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52103-V2010iAAWH1#,TAWH15202311

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-V2040iAAWH1#,TAWH15202311

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-V2040iAAWH1#,TAWH15202311

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-33110iAAWH1#,TAWH15202311

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-33110iAAWH1#,TAWH15202311

52611ABSORBER, FRONT BUMPER ENERGY

main52611-V2020iAAWH1#,TAWH15202311

52618ABSORBER, FRONT BUMPER, LOWER

main52618-V2020iAAWH1#,TAWH15202311

5351

9011908C64

main90119-08C64

9011910A33

main90119-10A33

9011916029

main90119-16029

9015960477

main90159-60477

9017908241

main90179-08241

9046707215

main90467-07215

9046709237

main90467-09237

18 parts on this diagram · 2 diagrams in section
