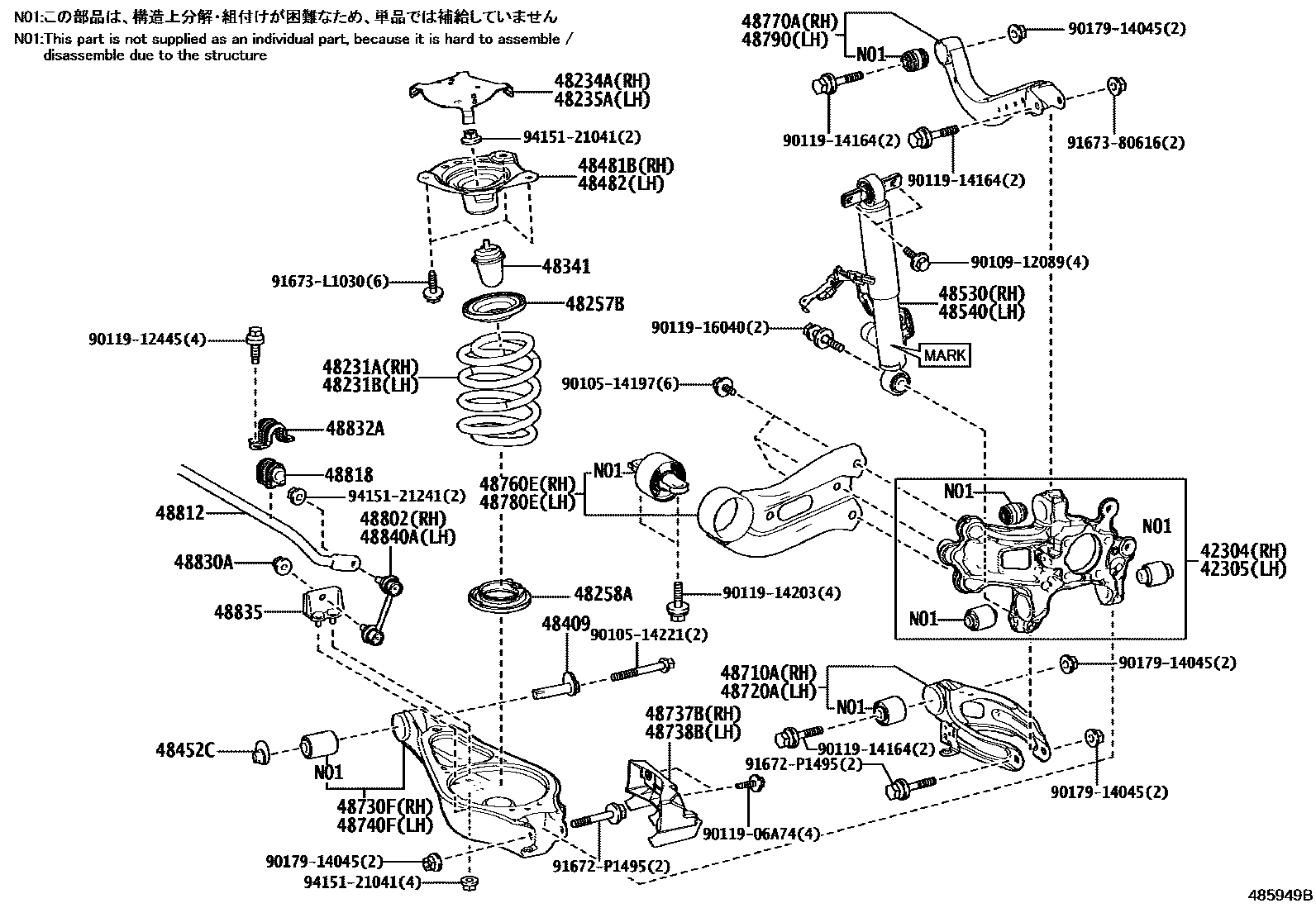

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48234ACOVER, SEAT COIL SPRING, REAR RH
48235ACOVER, SEAT COIL SPRING, REAR LH
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452CPLATE, REAR SUSPENSION TOE ADJUST
48481BSEAT, REAR SPRING, UPPER RH
48482SEAT, REAR SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737BCOVER, LOWER CONTROL ARM, RH NO.1
48738BCOVER, LOWER CONTROL ARM, LH NO.1
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48832ABRACKET, REAR STABILIZER BAR, NO.1
48835BRACKET, REAR STABILIZER, LOWER
48840ALINK ASSY, REAR STABILIZER, LH
9010514197
main90105-14197
9010514221
main90105-14221
9010912089
main90109-12089
9011906A74
main90119-06A74
9011912445
main90119-12445
9011914164
main90119-14164
9011914203
main90119-14203
9011916040
main90119-16040
9017914045
main90179-14045
91672P1495
main91672-P1495
9167380616
main91673-80616
91673L1030
main91673-L1030
9415121041
main94151-21041
9415121241
main94151-21241
46 parts on this diagram · 2 diagrams in section
