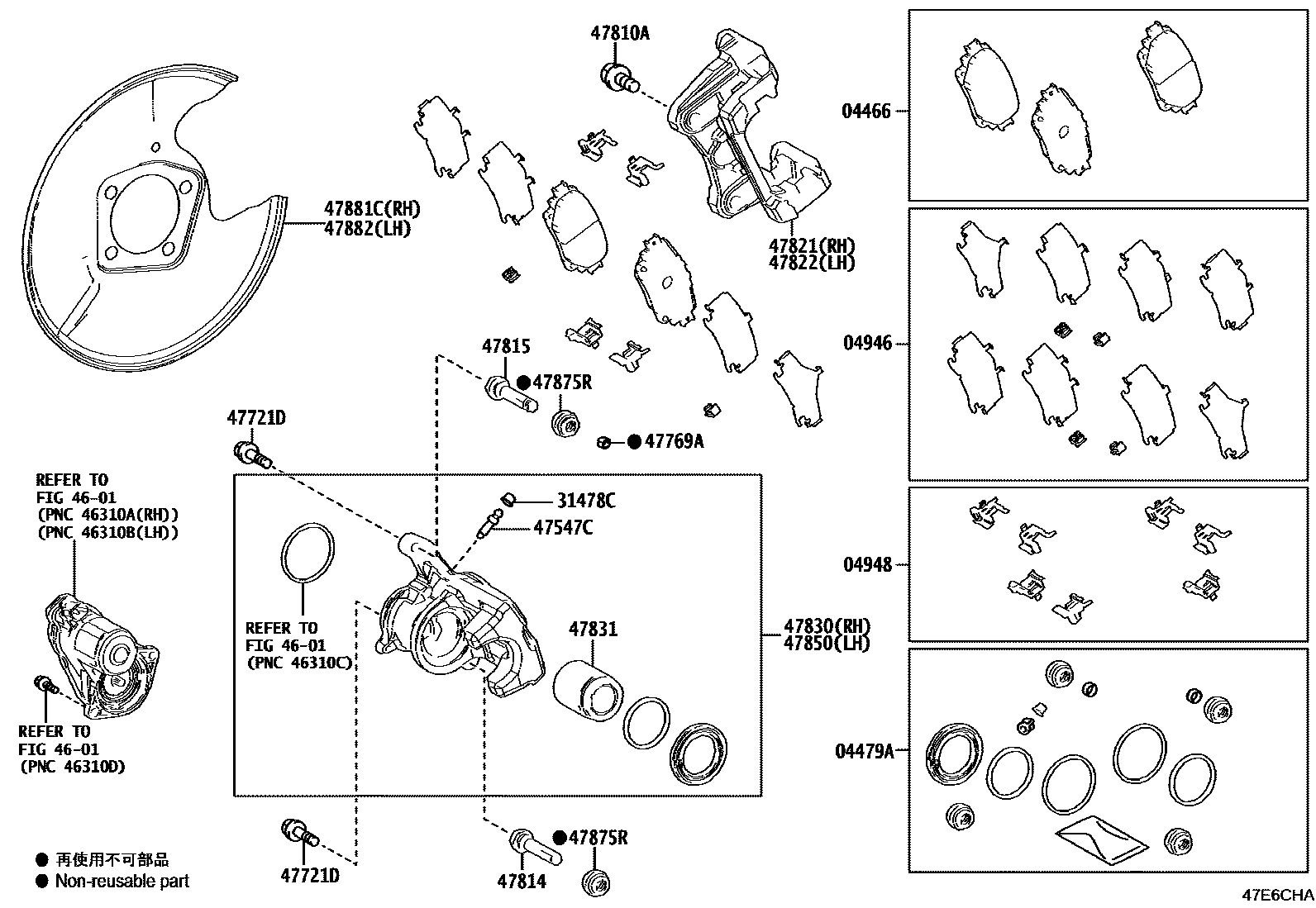

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-V2010iAAWH1#,TAWH15202311

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-V2010iAAWH1#,TAWH15202311

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280iAAWH1#,TAWH15202311

04948FITTING KIT, DISC BRAKE, REAR

main04948-V2010iAAWH1#,TAWH15202311

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAAWH1#,TAWH15202311

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAAWH1#,TAWH15202311

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAAWH1#,TAWH15202311

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAAWH1#,TAWH15202311

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14212iAAWH1#,TAWH15202311

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAAWH1#,TAWH15202311

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAAWH1#,TAWH15202311

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-V2020iAAWH1#,TAWH15202311

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-V2020iAAWH1#,TAWH15202311

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-V2020iAAWH1#,TAWH15202311

47831PISTON, REAR DISC BRAKE

main47831-58040iAAWH1#,TAWH15202311

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-V2020iAAWH1#,TAWH15202311

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAAWH1#,TAWH15202311

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-V2010iAAWH1#,TAWH15202311

47882COVER, DISC BRAKE DUST, REAR LH

main47882-V2010iAAWH1#,TAWH15202311

20 parts on this diagram · 1 diagram in section
