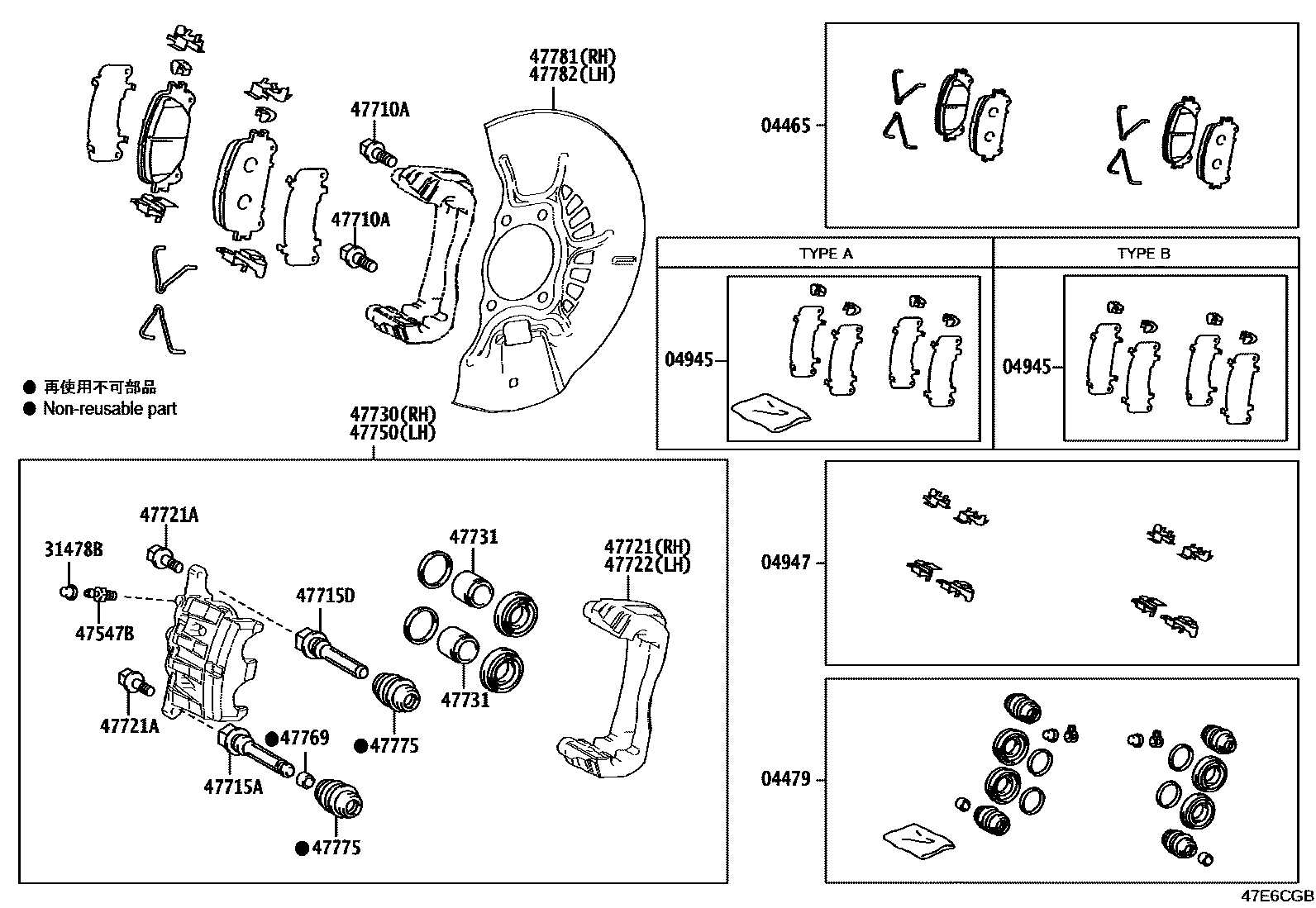

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-78010iAAWH1#202311

main04465-78020iTAWH15202311

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-42030iTAWH15202311

main04478-48200iAAWH1#202311

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAAWH1#202311

main04945-48190iTAWH15202311

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAAWH1#,TAWH15202311

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAAWH1#,TAWH15202311

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAAWH1#,TAWH15202311

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212iAAWH1#,TAWH15202311

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iAAWH1#,TAWH15202311

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iAAWH1#,TAWH15202311

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-V2020iAAWH1#202311

main47721-V2030iTAWH15202311

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAAWH1#,TAWH15202311

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-V2020iAAWH1#202311

main47722-V2030iTAWH15202311

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-V2020iAAWH1#202311

main47730-V2030iTAWH15202311

47731PISTON, FRONT DISC BRAKE

main47731-48150iAAWH1#,TAWH15202311

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-V2020iAAWH1#202311

main47750-V2030iTAWH15202311

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iAAWH1#,TAWH15202311

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iAAWH1#,TAWH15202311

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAAWH1#,TAWH15202311

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAAWH1#,TAWH15202311

19 parts on this diagram · 1 diagram in section
